ALLNET Wireless AX 1200Mbps IP55 Outdoor Bridge ALL-WB100AXF-1200
Highlights:- Wi-Fi 6 technology for powerful and efficient outdoor Wi-Fi
- Beamforming optimizes antenna signal, reception, and reliability for clients
- 2x2 directional antennas to support up to 1200 Mbps in the 5 GHz range
- High transmit power of 26 dBm extends Wi-Fi to the yard or from building to building

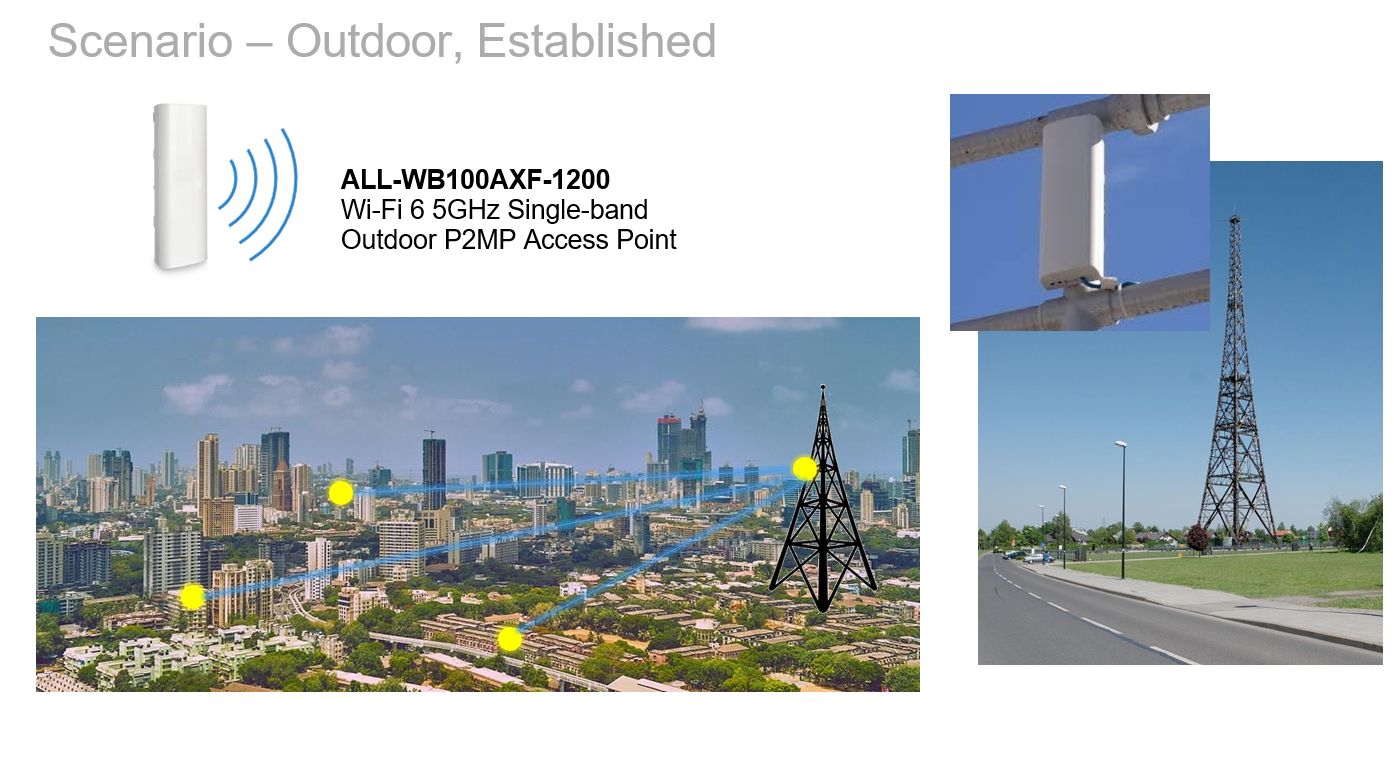

- Integrated directional antenna with high gain (16 dBi) extends wireless networks up to 5 miles (point-to-point)
- IP55-certified weatherproof and dustproof enclosure
- Flexible operating modes: access point, station, WDS access point, WDS station, repeater
- GE PoE port supports flexible power options
The ALLNET Wireless Bridge WiFi6 2x2 5GHz IP55 Outdoor Long Range CPE provides reliable and efficient outdoor Wi-Fi connectivity with Wi-Fi 6 technology and beamforming optimization. It features a high transmit power of 26 dBm and an integrated high gain directional antenna of 16 dBi for extended Wi-Fi range of up to 5 miles (point-to-point). It is also weatherproof and offers flexible operating modes with easy installation over 100 meters.
Technical Details:
Model Name
|
ALL-WB100AXF-1200
|
Chipset
|
Main Control Unit
|
IPQ5018
|
Flash & Memory
|
8MB NOR (layout reserved)
128MB NAND
|
512MB DDR3 RAM
|
Switch/PHY
|
QCA8337 (1GbE)
|
PD
|
YES
|
Operating Frequency |
Single band 5 GHz |
Operation Mode |
AP/STA/WDS AP/WDS STA/ Repeater |
Frequency Radio |
5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz |
Radio Chains |
2 x 2:2 |
SU-MIMO Capability |
Two (2) spatial stream Single User (SU) MIMO for up to 1,200 Mbps wireless data rate with VHT80 to a 2×2 wireless device under the 5GHz radio. |
MU-MIMO Capability |
Two (2) spatial streams Multiple (MU)-MIMO up to 1,200 Mbps wireless data rate for transmitting to two (2) streams MU-MIMO 11ax capable wireless client devices under 5GHz simultaneously. |
Supported Data Rates
|
802.11ax: 5 GHz: 18 to 1200 (MCS0 to MSC11, NSS = 1 to 2) 802.11b: 1, 2, 5.5, 11 802.11a/g: 6, 9, 12, 18, 36, 48, 54 802.11n: 6.5 to 300 Mbps (MCS0 to MCS15) 802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1 to 2) |
Supported Radio Technologies |
802.11ax: 802.11ax: Orthogonal Frequency Division Multiple Access(OFDMA) 802.11a/g/n/ac: Orthogonal Frequency Division Multiple (OFDM) 802.11b: Direct-sequence spread-spectrum (DSSS) |
Channelization |
802.11ax supports high efficiency throughput (HE) ?HE 20/40/80 MHz 802.11ac supports very high throughput (VHT) ?VHT 20/40/80 MHz 802.11n supports high throughput (HT) ?HT 20/40 MHz 802.11n supports
high throughput under the 2.4GHz radio ?HT40 MHz (256-QAM) 802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU |
Supported Modulation |
802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM 802.11b: BPSK, QPSK, CCKA |
Max. Concurrent User |
128 per radio |
RF Power Setting
|
Transmit Power (5GHz)
|
Conductive 22dBm per-chain @MCS0 20Mhz
|

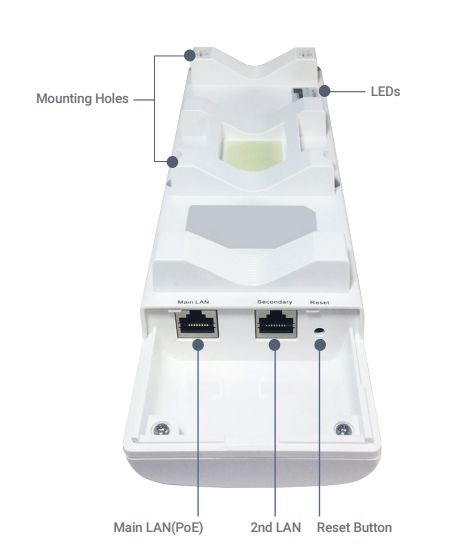

Interfaces
|
Ethernet
|
1x 1GbE RJ45 54VDC Proprietary PoE INPUT
1x 1GbE RJ45 LAN Out
|
LED Indicator
|
4x single-color LED, 3x tri-color LED for signal
|
Reset Button
|
1x
|
Power Spec
|
Power Source
|
48V Proprietary PoE (EPA5006GR)
|
Max. Power Consumption |
PoE: Max. 13W |
Antenna
|
Antenna Specification
|
Internal Patch Array
|
1x single-band @5Ghz, 14dBi (Port1: 40°x20°;Port2: 40°x20°) 22dBm TX Power max.
|
Antenna Beamwidth: Azimuth:40°, Elevation:20° |
Environmental
|
Rain & Dust ingression protection
|
IP55
|
Operating Temperature
|
-20°C ~ 60°C
|
Storage Temperature & Humidity |
-40ºC ~ 80ºC
Storage: 90% or less |
Humidity
|
Up to 95% RH, non-condensing
|

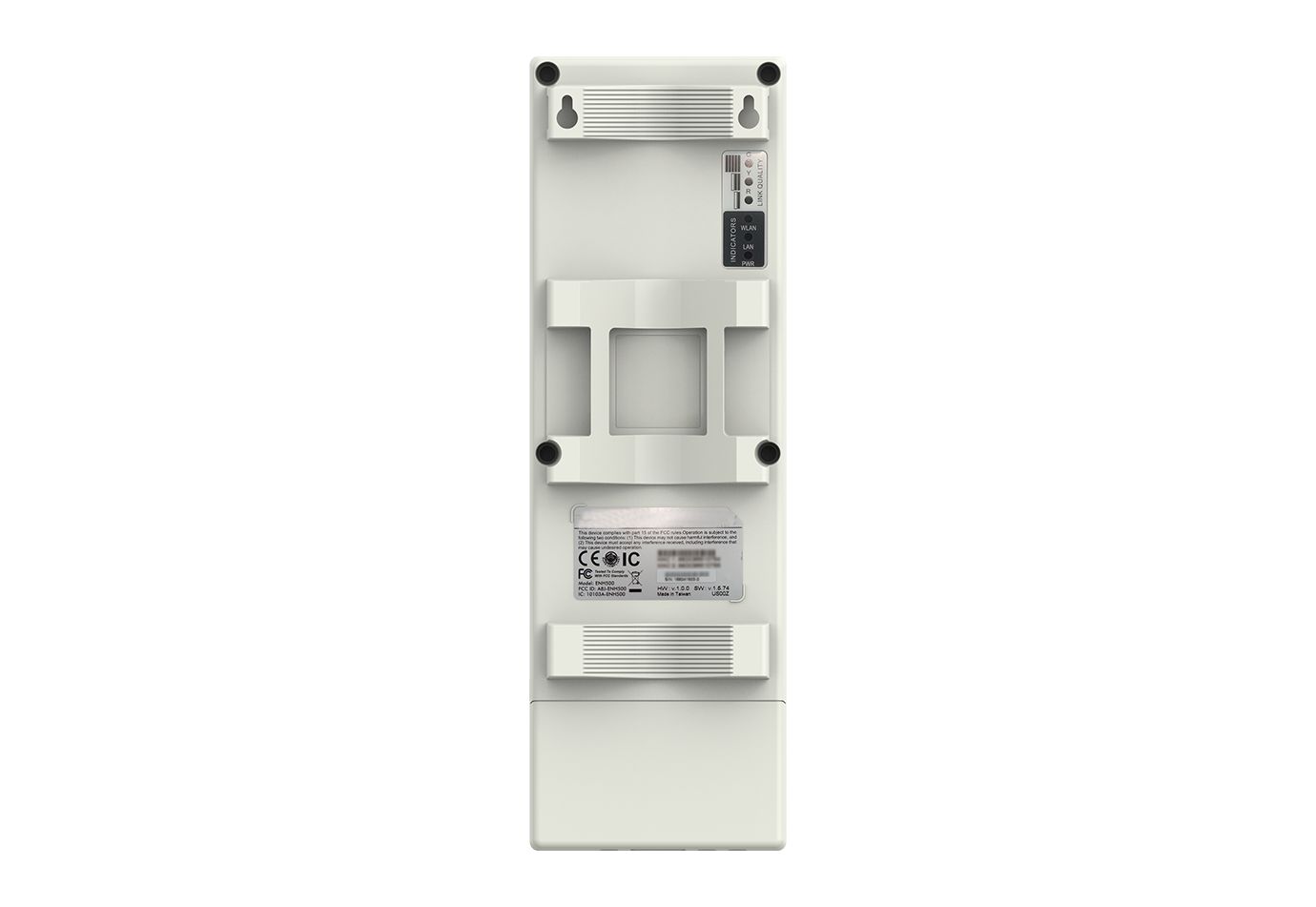

Mounting Options
|
Dimension |
260*84*55mm |

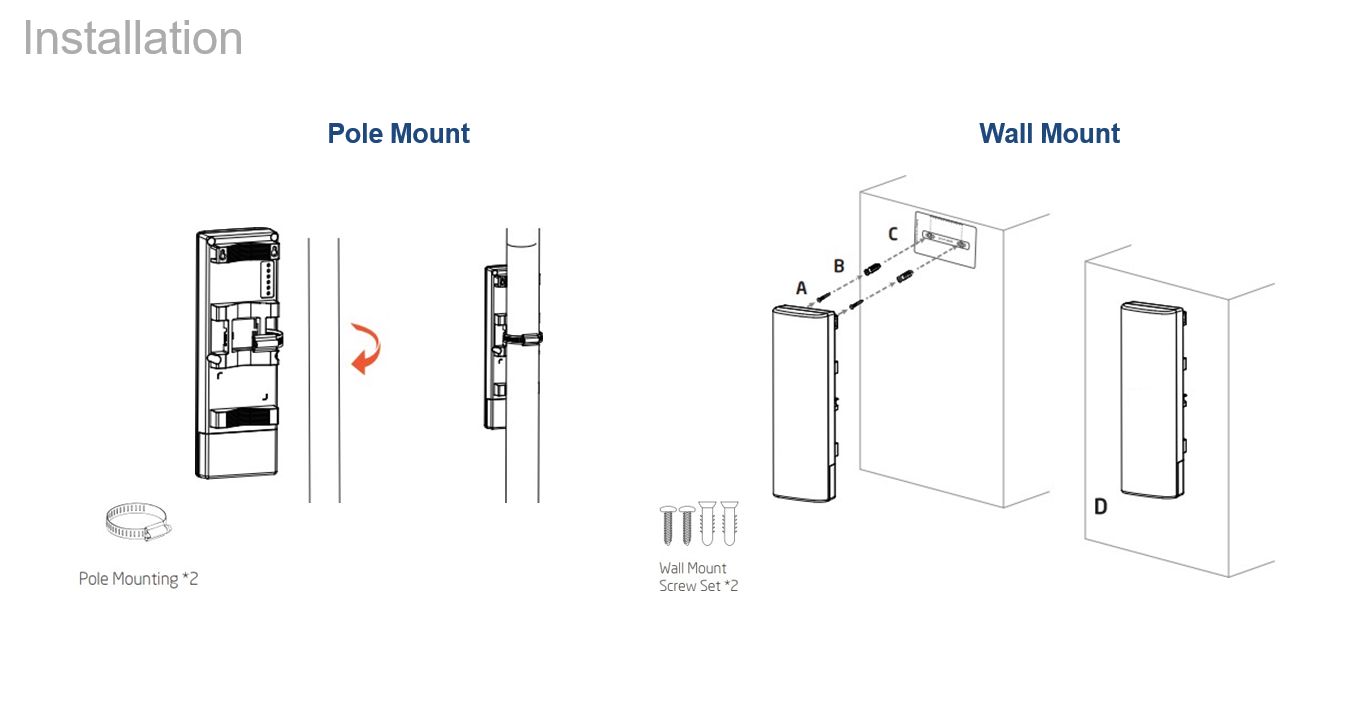

Wall Mount
|
YES
|
Pole Mount
|
YES
|
Certification
|
Marks |
FCC
CE |
|

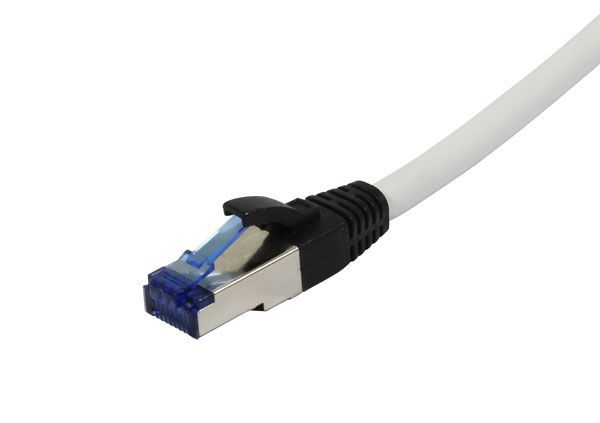

 | | Patchkabel RJ45, CAT6A 500Mhz, 3m, weiss, S-STP(S/FTP), PUR(Superflex), Außen/Outdoor/Industrie, AWG26, Synergy 21 |  | | Patchkabel RJ45, CAT6A 500Mhz, 5m, weiss, S-STP(S/FTP), PUR(Superflex), Außen/Outdoor/Industrie, AWG26, Synergy 21 |  | | Patchkabel RJ45, CAT6A 500Mhz, 7.5m, weiss, S-STP(S/FTP), PUR(Superflex), Außen/Outdoor/Industrie, AWG26, Synergy 21 |  | | Patchkabel RJ45, CAT6A 500Mhz,10m, weiss, S-STP(S/FTP), PUR(Superflex), Außen/Outdoor/Industrie, AWG26, Synergy 21 |  | | Patchkabel RJ45, CAT6A 500Mhz,15m, weiss, S-STP(S/FTP), PUR(Superflex), Außen/Outdoor/Industrie, AWG26, Synergy 21 |  | | Patchkabel RJ45, CAT6A 500Mhz,25m, weiss, S-STP(S/FTP), PUR(Superflex), Außen/Outdoor/Industrie, AWG26, Synergy 21 |  | | Patchkabel RJ45, CAT6A 500Mhz,30m, weiss, S-STP(S/FTP), PUR(Superflex), Außen/Outdoor/Industrie, AWG26, Synergy 21 |  | | Patchkabel RJ45, CAT6A 500Mhz,40m, weiss, S-STP(S/FTP), PUR(Superflex), Außen/Outdoor/Industrie, AWG26, Synergy 21 |  | | Patchkabel RJ45, CAT6A 500Mhz,50m, weiss, S-STP(S/FTP), PUR(Superflex), Außen/Outdoor/Industrie, AWG26, Synergy 21 |
