New products

Panel for 15.6" inch tablet, improved version with wall closure and slip-in.

Advantages compared to the predecessor:

- Tablet and installation frame disappear into the panel

- Magnets in the bezel and not screwed on

- The bezel has been lowered/flattened towards the touchscreen

- Individual product, bezels can be purchased separately

- Different standard colours black, silver, white

- Custom colours bronze, gold, RAL colours  can be ordered from 100 pieces

Product:

Colour white , wide

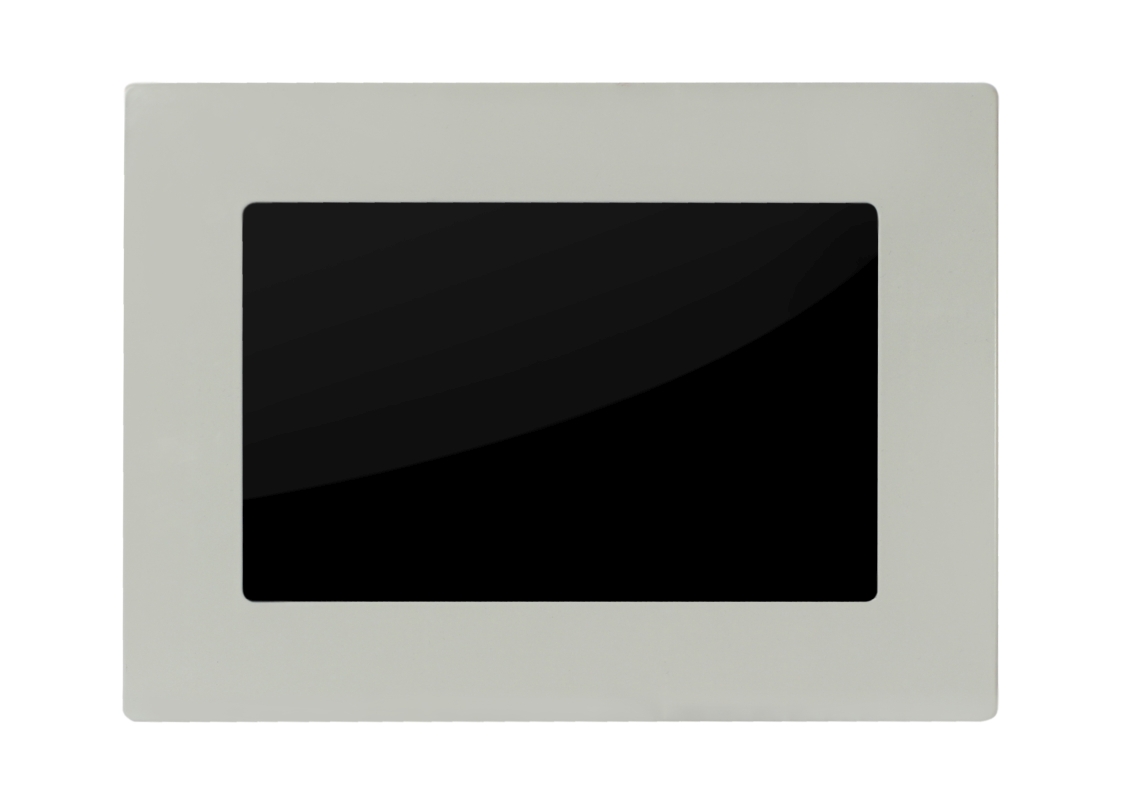

The cover is magnetically fixed to the installation frame. The magnets must be mounted in the panel

Please bear in mind that the tablet speakers are located on the back of the tablet and the quality and volume of the sound options will be reduced as soon as the tablet is installed in a wall.

The tablet is screwed to the frame via the vesa mount and then mounted in a drywall or wooden wall. Walls are of course also possible, but are only recommended to a limited extent due to possible heat accumulation.

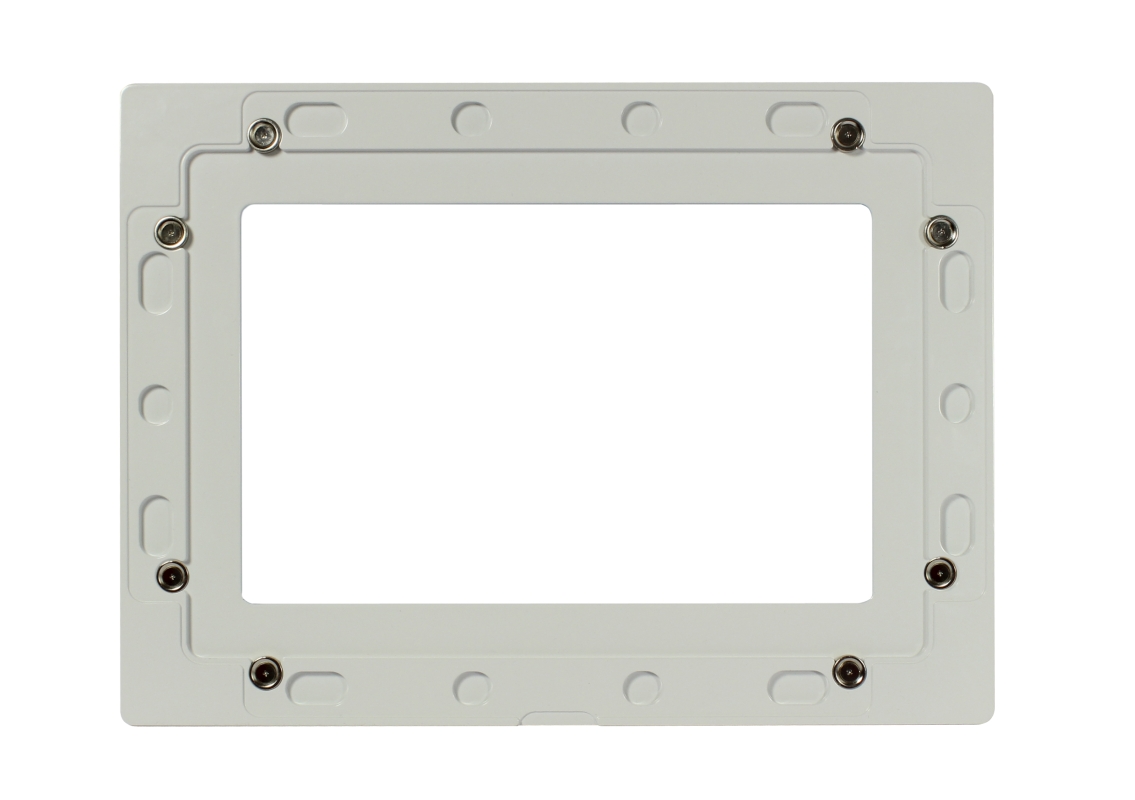

Dimensions of the installation frame:

480x257x28 mm

Cut-out dimensions:

482x259 mm
