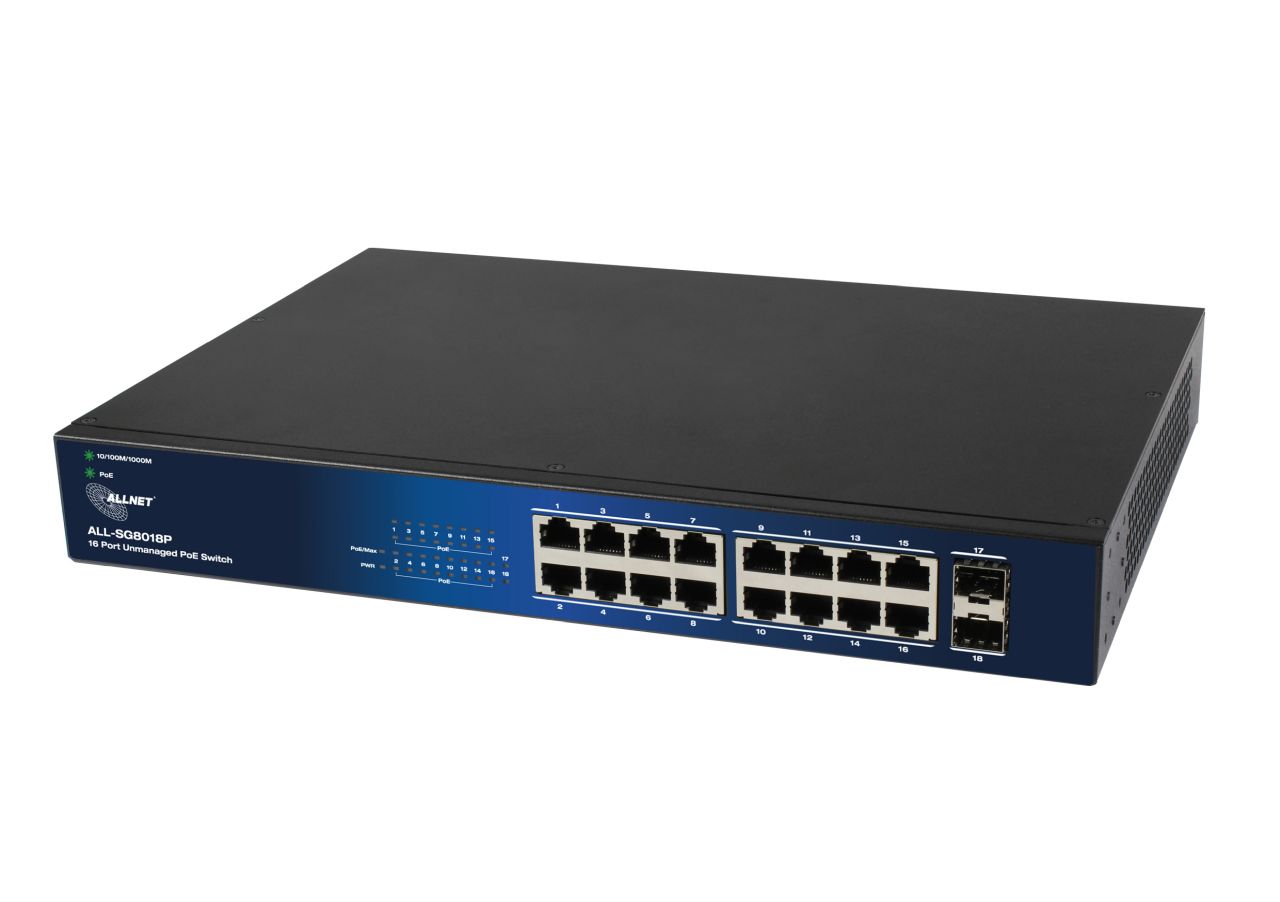

ALLNET Switch unmanaged 18 port Gigabit 240W / 16x PoE+ / 2x SFP / Fanless / 19" / "ALL-SG8018P"
Highlights:- 16 x 10/100/1000Mbps Auto MDI/MDI-X Ethernet port
- 2x SFP Gigabit ports
- Fanless
- Supports Jumbo frames 10K bytes.
- PoE Alternative A (Pin 1,2/3,6)
Introducing the ALLNET Switch unmanaged Layer2 18 Port ? a powerful networking device designed for small-scale environments, renowned for its impressive performance and silent operation.
Featuring 16 x 10/100/1000Mbps Auto MDI/MDI-X Ethernet ports, this switch offers reliable connectivity for your network devices. The 2x SFP Gigabit ports allow seamless integration of fiber connections, enhancing the flexibility of your network infrastructure.
With a PoE budget of 240W, this switch can power PoE-enabled devices without the need for additional power cables, simplifying installation and maintenance tasks. Supporting Jumbo Frames up to 10K bytes, it efficiently handles large data transfers.
Designed with a fanless architecture, this switch is perfect for environments where absolute silence is required. Its silent operation ensures quiet performance without compromising on functionality or power.
Equipped with optional SFP slots, you can expand the switch with two additional uplink ports, supporting both fiber and copper connections to meet the diverse needs of your network.
Rely on the ALLNET Switch unmanaged Layer2 18 Port ? the ideal solution for a high-performance and noise-free networking environment.

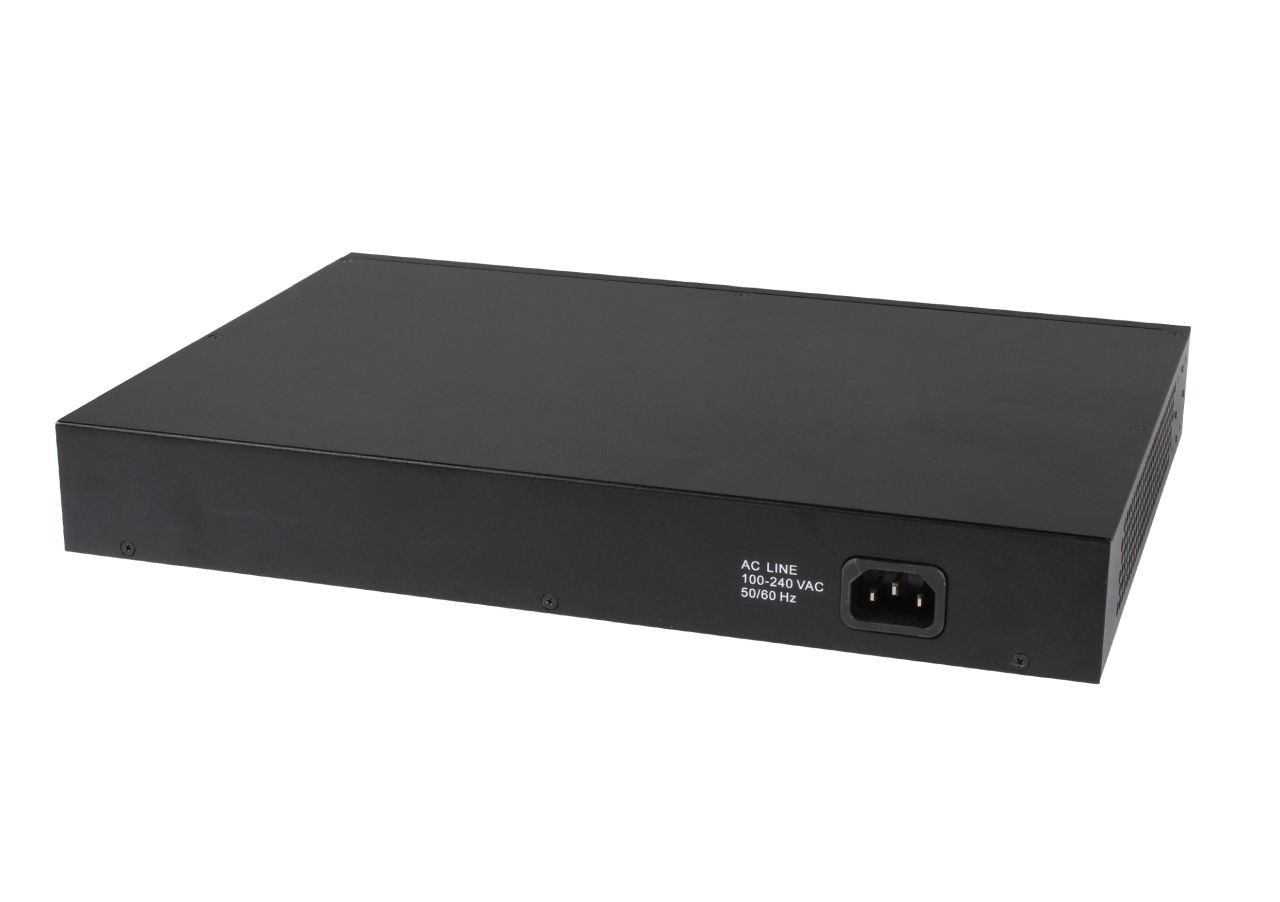

Mechanical Drawings:

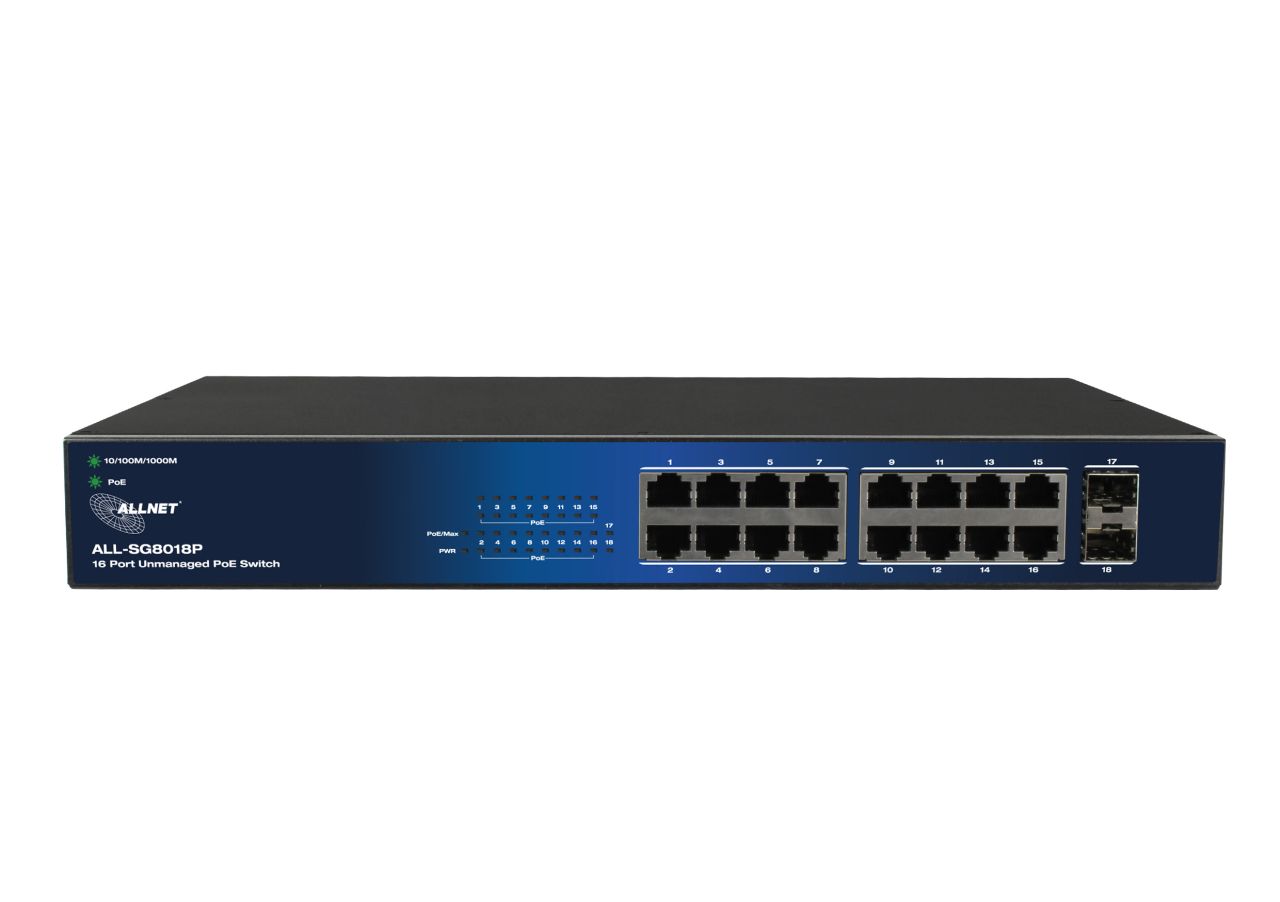

Front-Panel:
Technical Details:
Items
|
Specifications
|
Model No.
|
ALL-SG8018P
|
Key Components
|
RTL8382L+RTL8218D
IP808ARx2
|
I/O ports
|
16x GbE ports, RJ45
2x SFP Giga Ports
|
PoE ports
|
Port# 1~ 16
IEEE802.3at, IEEE802.3af
|
LED Define
|
PWR: Green LED
- Off: power off or fail
- On: power on
PoE Max.: Green LED
- Off: No over PoE max power Alert
- On: Over PoE max power Alert
16 RJ45 Port LED: one bi-color LEDs on daughter board
Link/ACT: Green/Amber
- Off: port disconnected or link fail
- Green on: 10/100/1000Mbps connected
- Blinking: sending or receiving data
PoE: Green LED
- Off: PoE power output off
- Green on: PoE power output on
SFP Port:
- Off: disconnected or fail
- Green: 100/1000Mbps connected
- Blinking: data transmitting
|
HW feature
|
IEEE802.3 10BASE-T
IEEE802.3u 100BASE-TX
IEEE802.3ab 1000BASE-T
IEEE802.3x flow control & back pressure
IEEE802.3z 1000Base SX/LX
IEEE802.3az EEE Disable
IEEE802.3at, IEEE802.3af
Switch Capacity: 36Gbps bi-direction
Forwarding Mode: Store and Forward
MAC address Table: 8K
Packet buffer size: 4.1M bit
Jumbo Frame: 10K bytes
|
Power Input
|
Internal power supply
Input: 100-240V AC
Output: 280W
E-cap life time >3 years @ 40?
|
PoE power pin-out
|
Alternative A (Pin 1,2/3,6)
|
PoE Output power capacity
|
Maximum output :30W per each port
- Compliant with IEEE802.3af/at standard, Following IEEE802.3at/at to support PoE or PoE+
- Automatically discover the connection of PD device and immediately sends power to it
- Auto disable port if the port current is over 700mA or short happens
- Priority can be configured and default setting is lower port NO. has high priority
- The maximum power used by power devices is defined by the following classification. When Port works in Auto Mode, the output port power limit will be associated with PD classification Value.
Follow the standard PSE pin-out standard of Alternative A (MAD-X) which is sending out power over number 1,2,3,6 pins of 8 wires of Ethernet CAT5 UTP cable
|
PoE Power Budget
|
240Watt
|
Dimension
|
330mmx230mmx44mm
|
FAN Design
|
FANLESS
|
Temperature
|
Operating: 0 ~ 40°C
Storage : -40 ~ 70°C
|
Humidity |
Operating: 10% ~ 90% RH (non-condensing)
Storage: 5% ~ 90% RH (non-condensing) |
|
