ALLNET AIO IPC industrial Windows/Linux, 19 inch IP67 stainless steel, Core I5, 8GB/256GB, Armoury-190

Discover the ALLNET Armoury-190 Stainless Steel Waterproof IP67 PC ? your reliable solution for demanding environments.

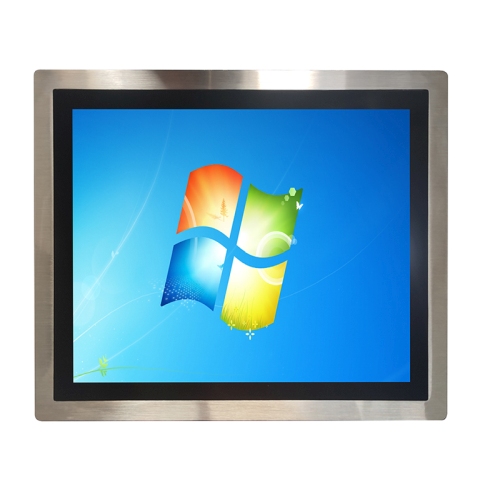

This weatherproof 19-inch panel PC is perfect for use in harsh conditions. With a robust stainless steel housing and waterproof screw connections, it offers complete protection in accordance with IP67. The Armoury-190 can easily withstand dust, water and extreme temperatures. Ideal for industrial applications or outdoor areas.

The powerful 12th generation Intel Core i5 processor ensures fast and reliable performance. With 8 GB RAM and a 256 GB SSD, this PC offers sufficient storage space and speed for your applications. The 1280x1024 resolution in combination with a highly sensitive projected capacitive (Pcap) touchscreen ensures razor-sharp displays and precise operation.

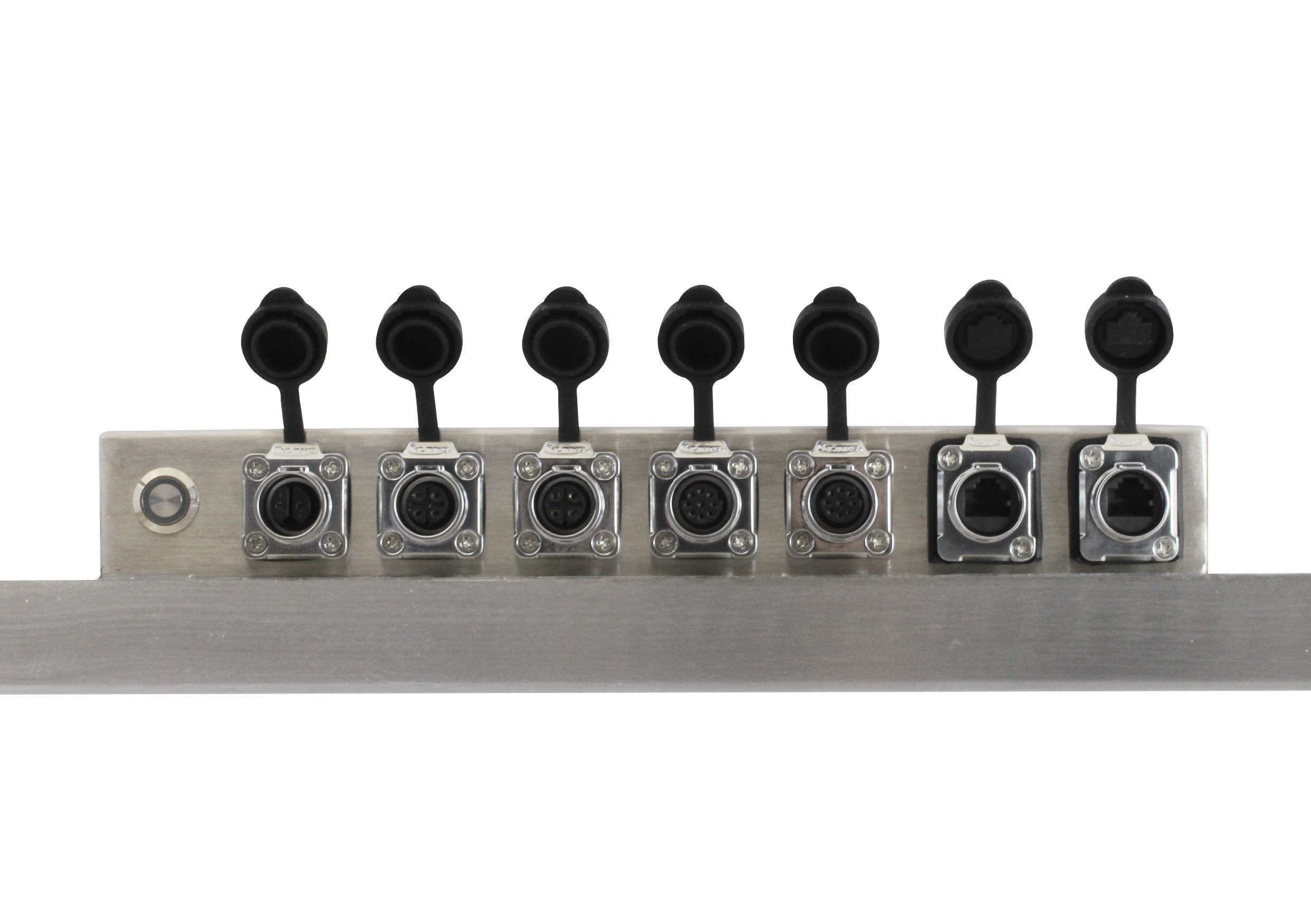

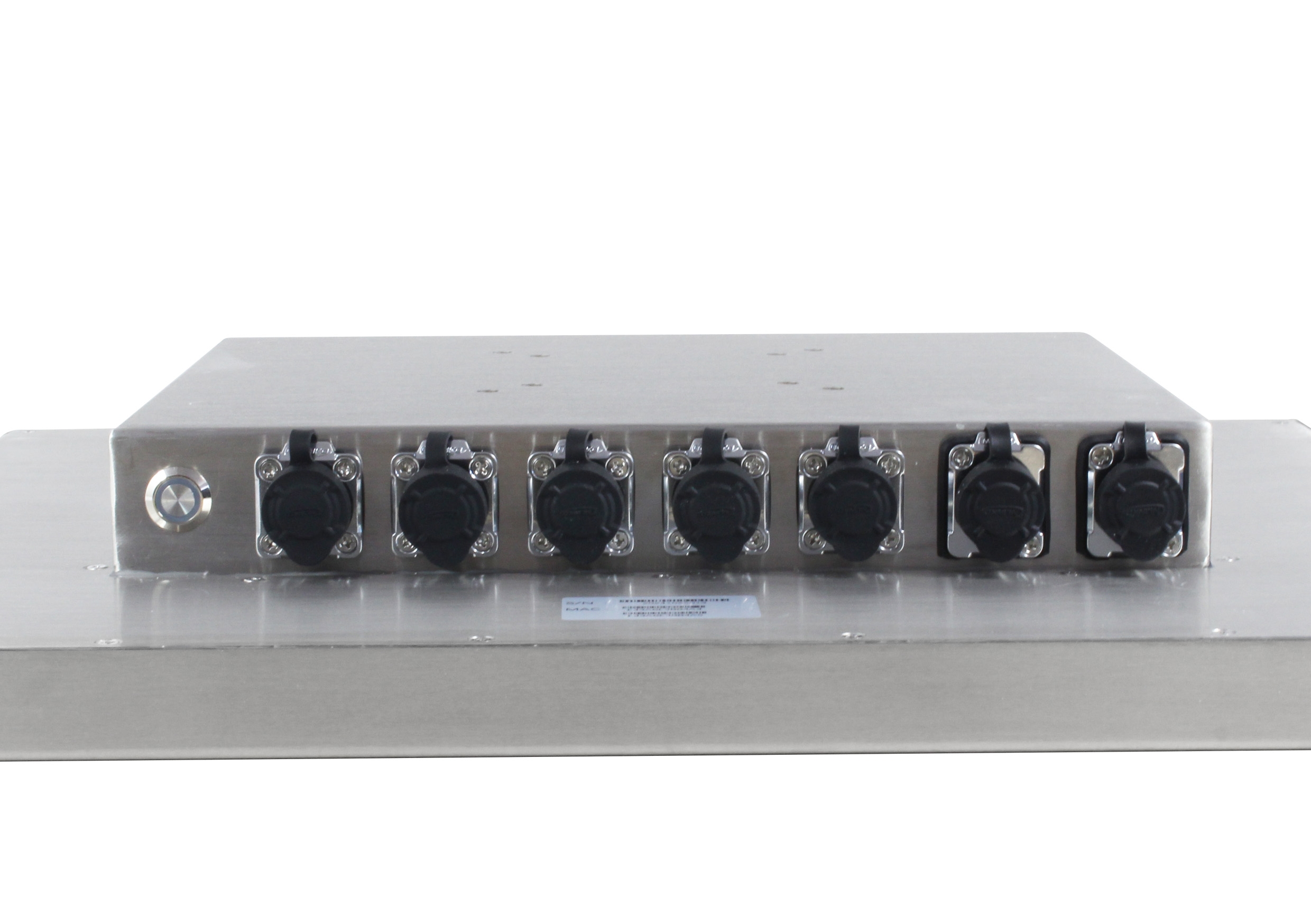

Thanks to versatile connections ? 2x RS232, 2x USB 2.0, 2x LAN and 1x DC IN ? the PC can be flexibly integrated into a wide variety of systems. With a wide input voltage range of 9-36V, the ALLNET Armoury-190 adapts to a wide range of power supply requirements.

Rely on the ALLNET Armoury-190 for uncompromising performance and longevity, even under extreme conditions.

19" panel PC / Full IP67/cap touch I5-12Gen.

1280*1024/2*RS232+2*USB2.0+2*LAN+1*DC IN/8+256GB

Stainless steel housing 9-36V

Customs Tariff Code/Customs Tariff Number: 8471410000

Screen size: 19-inch

Touch type: Projected capacitive (Pcap) touch

Resolution: 1280x1024

Ports:2x RS232

2x USB 2.0

2x LAN

1x DC IN

Memory and storage: 8GB RAM, 256GB storage

Input voltage: 9-36V

Housing material: Stainless steel

ALLNET Computersysteme GmbH

Armoury-190

LCD display

Display Type

19? (XGA) a-Si TFT-LCD1919? inch (XGA) a-Si TFT-LCD 1280(H)x1024(V) Angle 80/80/70/70

Luminance (cd/m2)

500 cd/m²

Contrast Ratio

1000:1

Backlight Life (hrs)

30,000 hrs (min.)

Touchscreen

Touch Type

Resistive 5-finger touch

Light Transmission

>81%

Controller

USB interface

CPU

CPU/Socket

Intel® Core? i5 12th Gen 1255U

BIOS

AMI SPI 64Mb

Memory

Technology

DDR4, 1.2V,2133/2400MHz

Max. Capacity

16 GB

Socket

1 x DDR4 SO-DIMM

Storage

SATA

N/A

Expansion slot

MiniPCIe

1 x full size Mini PCIe

Ethernet

Controller

2 x Intel® Ethernet Connection

Speed

10/100/1000 Mbps

Connector

Audio

Audio Interface

Optional

Connector

Audio&Mic-in

CODEC

Realtek ALC662VD, High Definition Audio

Watchdog Timer

Yes

USB3.0/2.0

3 x USB2.0

GPIO

N/A

Display Port

Optional

COM Port

2 x RS232(COM1/2 support RS485/RS422,RS485 with isolate,115200)

Mechanical

Mounting

Desk/wall-mounting,VESA mounting

Weight(kg)

10.6kg (13.6kg)

Dimension (mm)

380.9mm(L) x 318.9mm(W) x 57.3mm(H)

Construction

Stainless steel housing

Power

Power Type

Input Voltage

9-36V DC

Power Adaptor

AC to DC, DC12V/5A

Environment

Operational Temperature

With extended temperature peripherals:0 ~ 60° C with 0.7m/s air flow

Storage Temperature

-20 ~ 70° C

Relative Humidity

95% @ 40° C (non-condensing)

Vibration during Operation

With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis

Shock During Operation

With SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration

Protection Rate

Full IP67

Operating System

Windows

Windows 11/10 licence not included

Linux

Ubuntu,CentOS
