PoE PD Switches and Router
The ALLNET PoE PD switches are ideally suited to supply IP cameras and other PoE-capable devices with power and data simultaneously.
The power supply of the switches can be done in 3 different ways:
1. PD port via another PoE device or injector (max. 90W power).
2. variable voltage input (DC) with up to 90W (10s) and 60W output power at 12V input voltage
3. fixed voltage input (DC) with 56V and up to 500W.
In addition, ALLNET offers the PoE PD Router ALL-PR4014PD. This router is a 4 Gigabit PSE (Power Source Equipment) LAN ports & 1 Gigabit (Powered Device) WAN port PoE+ NAT router designed for small and medium network environments to strengthen network connectivity. This product has a compact size, making it ideal for desktop users with limited space.
The most interesting application area is that the PoE router can be powered by PoE and simultaneously provide PoE power to up to 4 end devices. By integrating ALL-PR4014P into existing networks, network products such as access points and IP cameras can be easily managed and set up. Wireless LAN networks can be easily installed where existing network cabling can be easily reused. Network administrators no longer need to use heavy AC power adapters. Power can of course be switched ON/OFF remotely at any time via manageable optional ALLNET switches. This is ideal for all in-house tinkerers who don't want to cripple the network with their tinker hardware.
PoE PD Switches

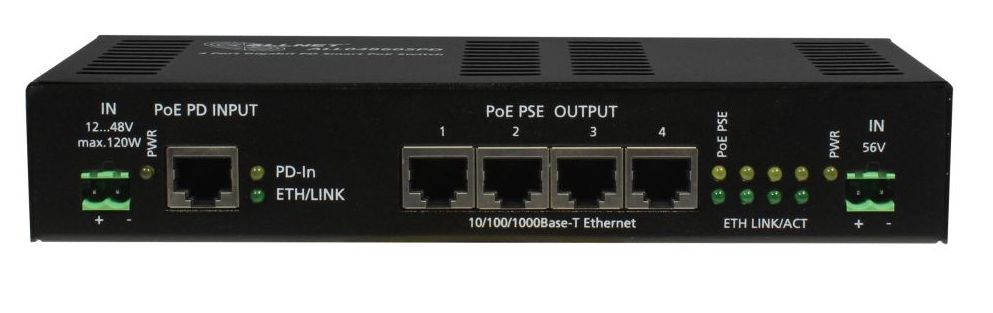

4-port 10/100/1000Mbit/s gigabit ethernet Switch with 1x PoE input (LT PoE 90W) and 4x PoE output (LT-PoE 90W / IEEE802.3at or IEEE802.3af)Highlights:

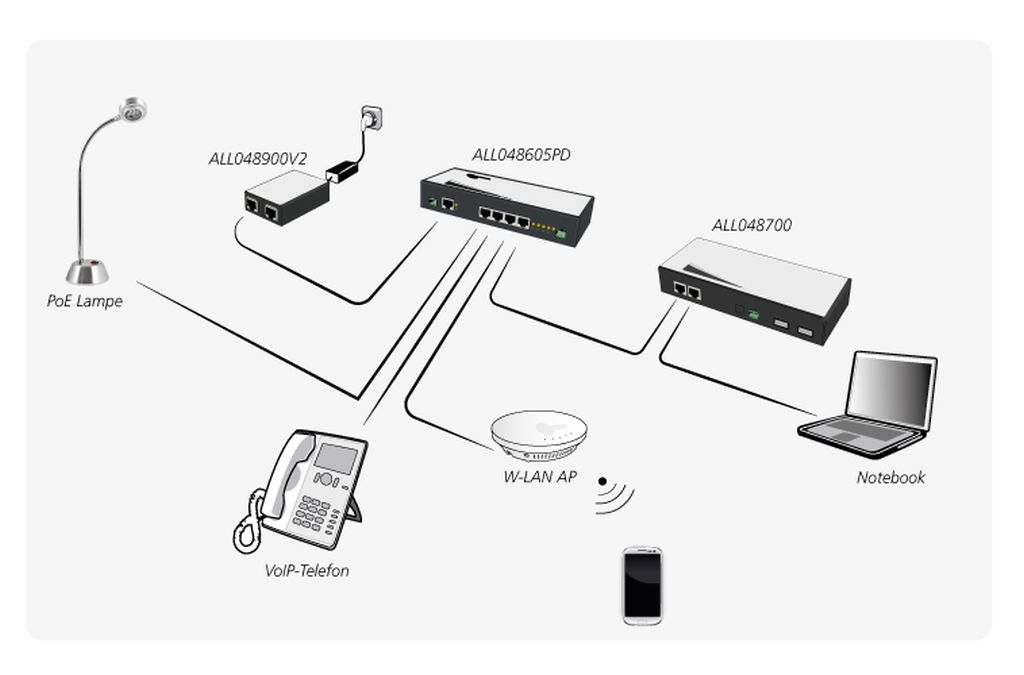

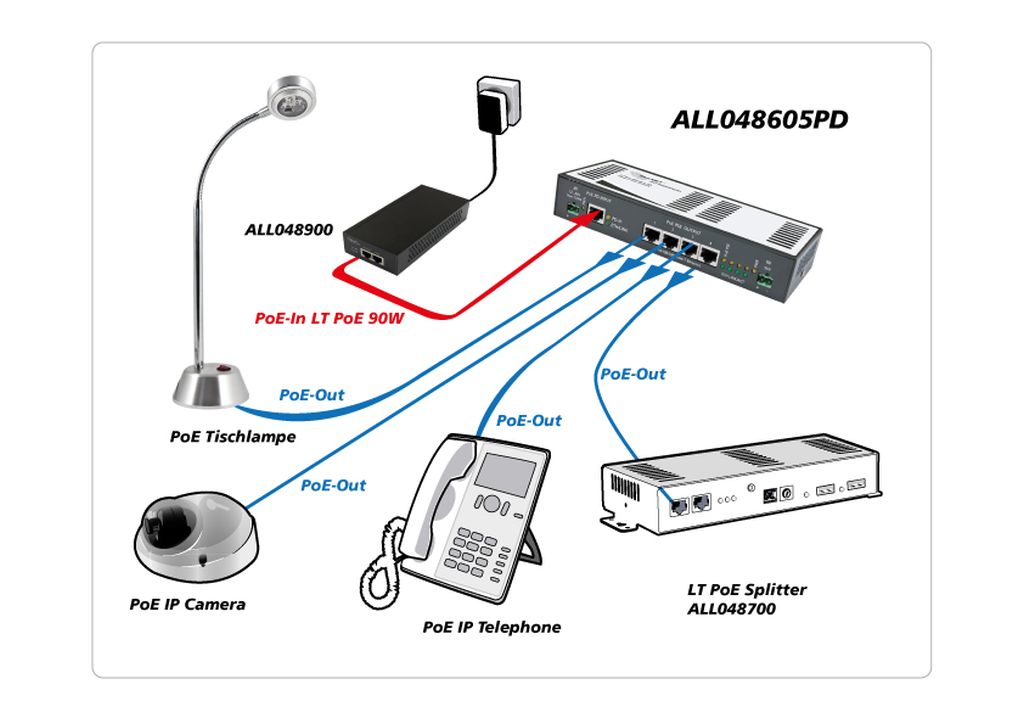

completely independent of sockets and power supplies The ALLNET ALL048605PD switch can be powered by an external power supply or PoE with the required energy as well. In addition, the switch is also able, to supply up to four PoE enabled devices over the network cable simultaneously with data and power! Cable length max. is 100 meters in both directions. This allows for a distance up to 200 meters, thus guaranteeing maximum flexibility in the supply of the devices. This allows an outstandig flexibility in the choice of installation of your IP cameras or wireless access points as well.
3 voltage inputs for optimal supply The power supply of this device can be done by three different ways: 1. PD port via another PoE device or Injector (max. 90W). 2. Variable DC power input, with up to 90W (10s) and 60W output with permanent 12V input. 3. Fixed DC input with 56V and up to 500W.
Technical details:
