We are a developer and manufacturer of advanced networking and communications technology. Our innovative networking, storage, security and home automation products are designed in our own laboratories and distributed in many European countries.

Wireless Router

As a 150Mbit, 300Mbit Wireless N router, optional Provider network connect or our ADSL2 + / VDSL Modem Router range, we offer a broad product portfolio for the most requirements.



pdf-download 113022-1  Art. nr. 113022

> Zum Online Shop

Highlights:

  • 4G WIFI Router
  • LTE Bands 3/7/20 - 800Mhz / 1800 & 2600 Mhz
  • Download Speed max. 100Mbps
  • 1x LAN Network Port
  • 5200mAh Power Bank
  • 10 WIFI devices at the same time

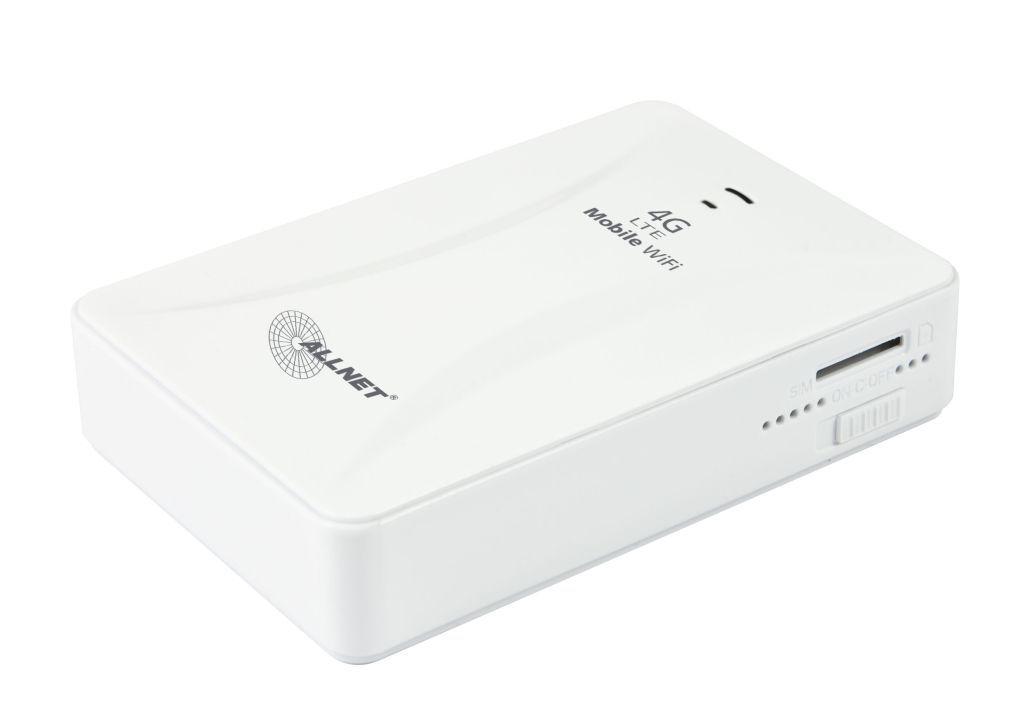

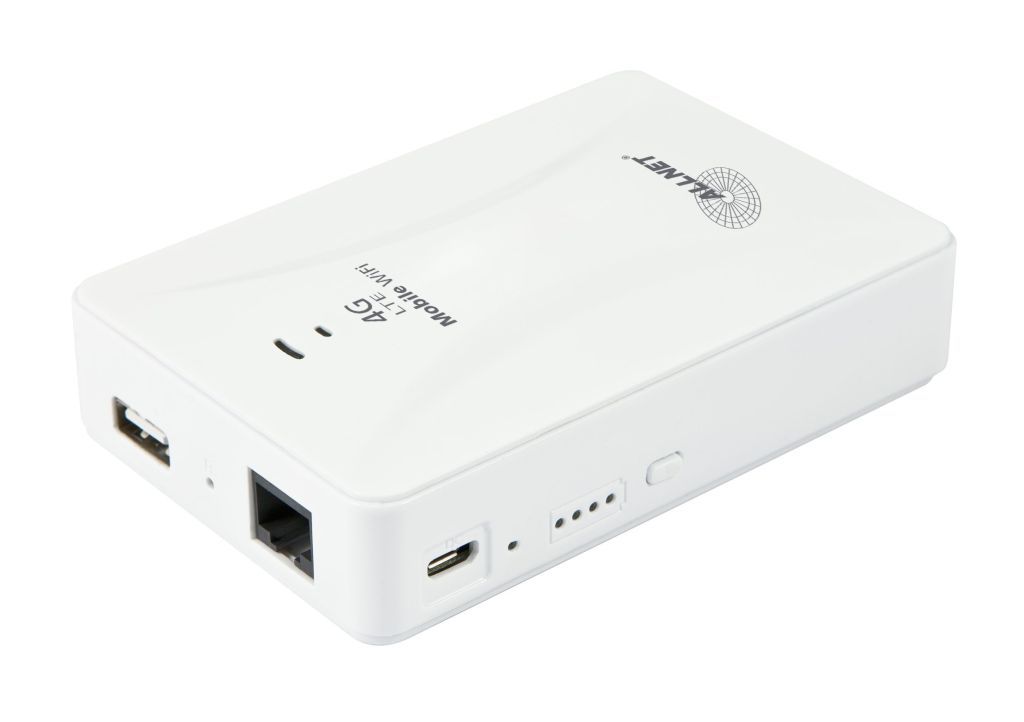

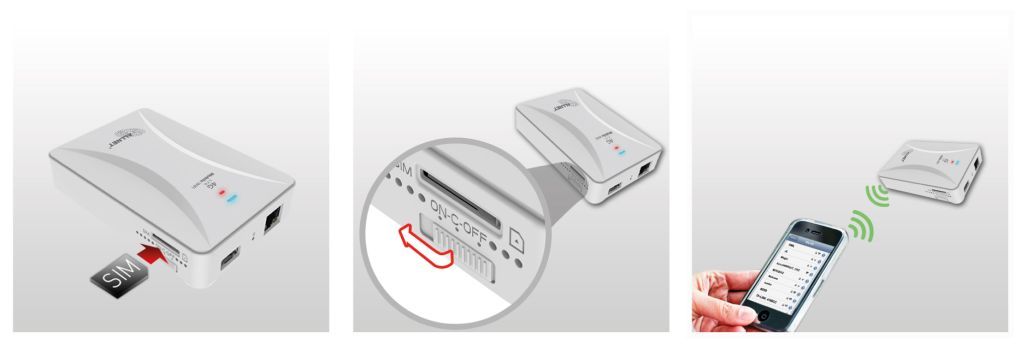

ALLNET ALL-WR2901-4G Portable LTE Router allows you to access and share your 4G LTE or 3G mobile broadband connections. Once connected, you can transfer data, stream media, and send SMS messages. Simply insert your SIM card and share your 4G LTE or 3G Internet connection through a secure wireless network or any of the one Ethernet port. The ALL-WR2901-4G LTE Router is designed for mobile application. Dual-band 4G LTE and 3G support allows automatic 3G connection.



The ALL-WR2901-4G enables user to access the Internet via LTE Networks and able to share the LTE bandwith up to 10 devices rough the Wi-Fi interface.





The ALL-WR2901-4G support an internal 5200mAh Powerbank for charge  smartphones anytime anywhere, plug&play.



The ALL-WR2901-4G support a LAN 10/100Mbps Network port for local installations.



Technical details:



Item

Specification

3G Chipset:

Qualcomm 9600

CPU Chipset:

Ralink RT5350

LTE Frequency (4G)

800/1800/2600MHz (Band 3/7/20)

Frequency (3G)

900/2100MHz

Frequency (2G)

900/1800MHz

High Speed Data Rate:

  • 100Mbps on download and 50Mbps on upload
  • HSPA+ 14.4Mbps download and 5.75Mbps on upload
  • EDGE/GPRS Download 236.8Kbps

WiFi

  • IEEE 802.11b: 1, 2, 5.5 and 11 Mbps
  • IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
  • IEEE 802.11n: bis zu 150Mbps

Network Interface:

  • 1x RJ45 10/100BaseT

SIM Slot:

Standard SIM Socket

WLAN Security:

  • 64/128-Bit WEP
  • WPA-PSK and TKIP/AES
  • WPA2-PSK and TKIP/AES
  • Mixed Mode WPA/WPA2

WiFi Connections:

  • Max. 10 connections at the same time

Integrated Powerbank

  • 1x USB Charging Port 5V1A for Smartphones etc.
  • 5200mAh Battery inside

max. working time:

10 hours (depending on the network)

max. standby time:

300 hours (depending on the network)

Configuration:

Web GUI

DynDNS Settings

yes

DMZ Settings

yes

LED-Indicators:

  • 1 x Power "Blue"
  • 1 x No SIM card & Connection ready "Red"
  • 4 x Charging Status

Controls on the device:

  • Device Button OFF
  • Device Button  C = USB Charging Mode
  • Device Button ON = 4G/3G/LAN/USB Charging

Housing:

Plastic housing

Dimension:

110 x 72 x 22 mm

Weight:

197g only the product

Environment:

  • Temperature operating: 0 ~ 50 °C
  • Humidity operating: 10% ~ 90% (non condensed)
  • Temperature storage: -20 ~ 65 °C
  • Humidity storage: 30% ~ 95% (non condensed)

Marks:

CE

Package content:

  • ALL-WR2901-4G WiFi Router
  • 1x USB A to Micro-USB Cable









Product Video



Accessory

 Article NoProductname
ALLNET Wireless N 100Mbit USB WLAN Nano Stick ALL-WA0100N (RTL8188EU)
ALLNET Wireless N 100Mbit USB WLAN Nano Stick ALL-WA0150N (MTK7601)
