1750Mbit Wireless AC Dual Band Outdoor
AccessPoint/Bridge/WDS AP with Gigabit and PoE
HIGHLIGHTS
- 3T3R-Stream 802.11ac wireless LAN concurrent
- Up to 1300Mbps in 5 GHz network
- Up to 450Mbps in 2,4 GHz network
- Supports MUp to 29 dBm transmit power on both 2.4 and 5 GHz radios, enabling long range connectivities in 2,4 GHz band
- Various mode: Access Point, Mesh (only 2,4GHz), WDS AP, WDS station and WDS bridge
- Band Steering feature detects dual band clients and shifts them to the 5 GHz band to relieve network congestion on the 2.4 GHz band to maintain optimal data traffic flow
- 1x Gigabit Port with PoE IEEE802.3at input
- 1x Gigabit Port with PoE IEEE802.3af output for example IP camera etc.
- Can be used with included power injector and power adapter or via PoE with PoE802.3at/af capable switches
- Ip68-rated waterproof housing

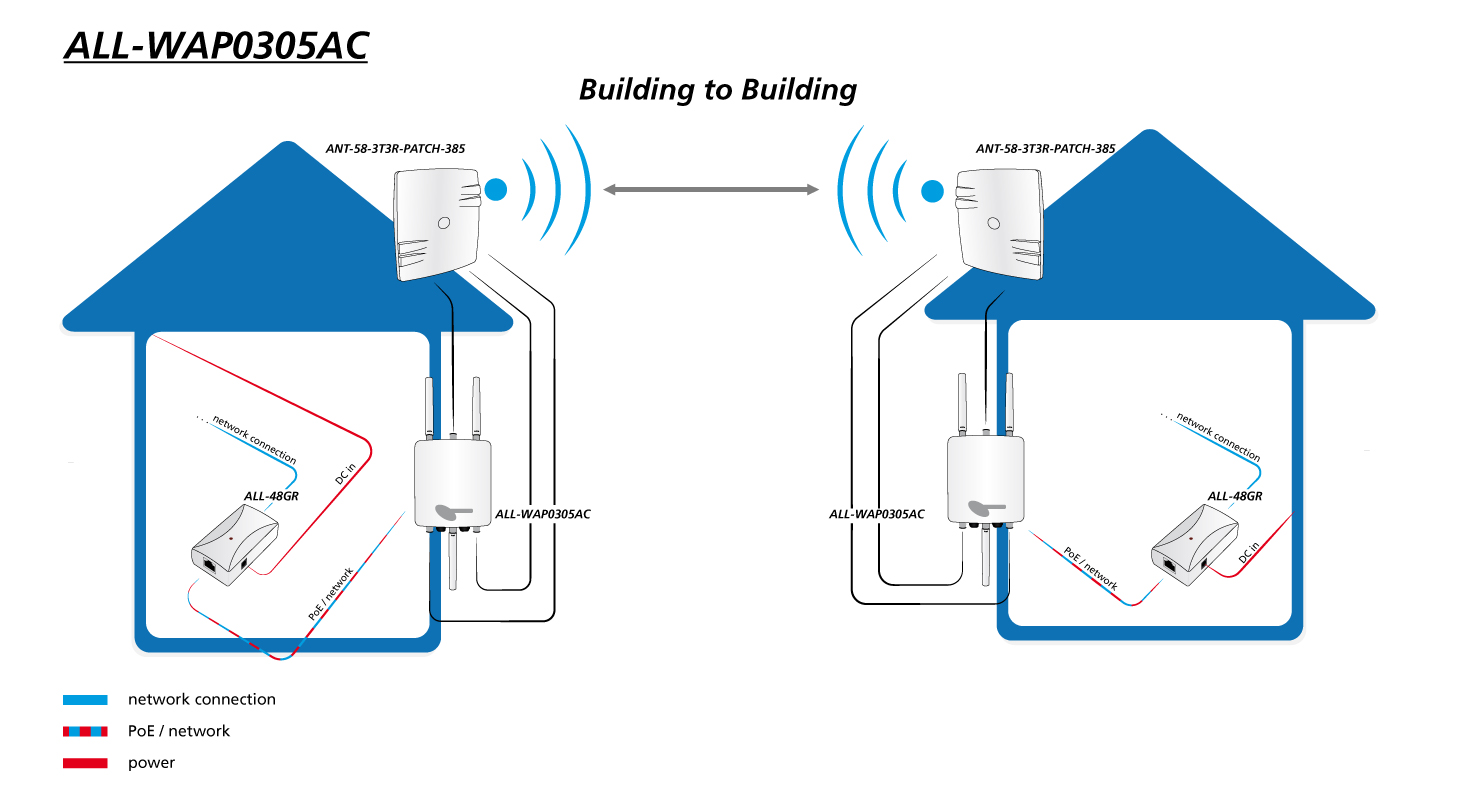

Ideal for camping sites, beer gardens, golf courses and all outdoor facilities or as building to building connection.

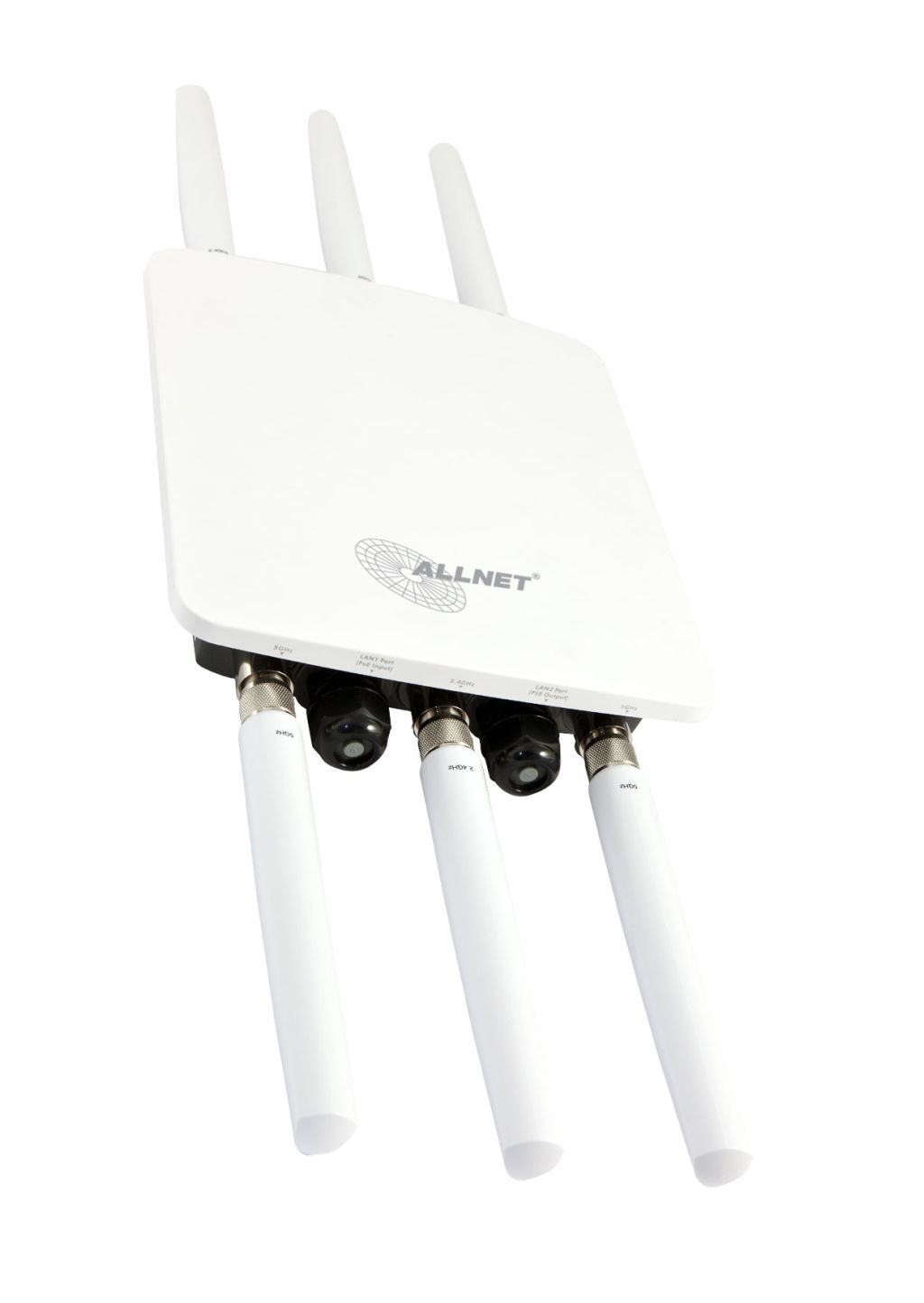

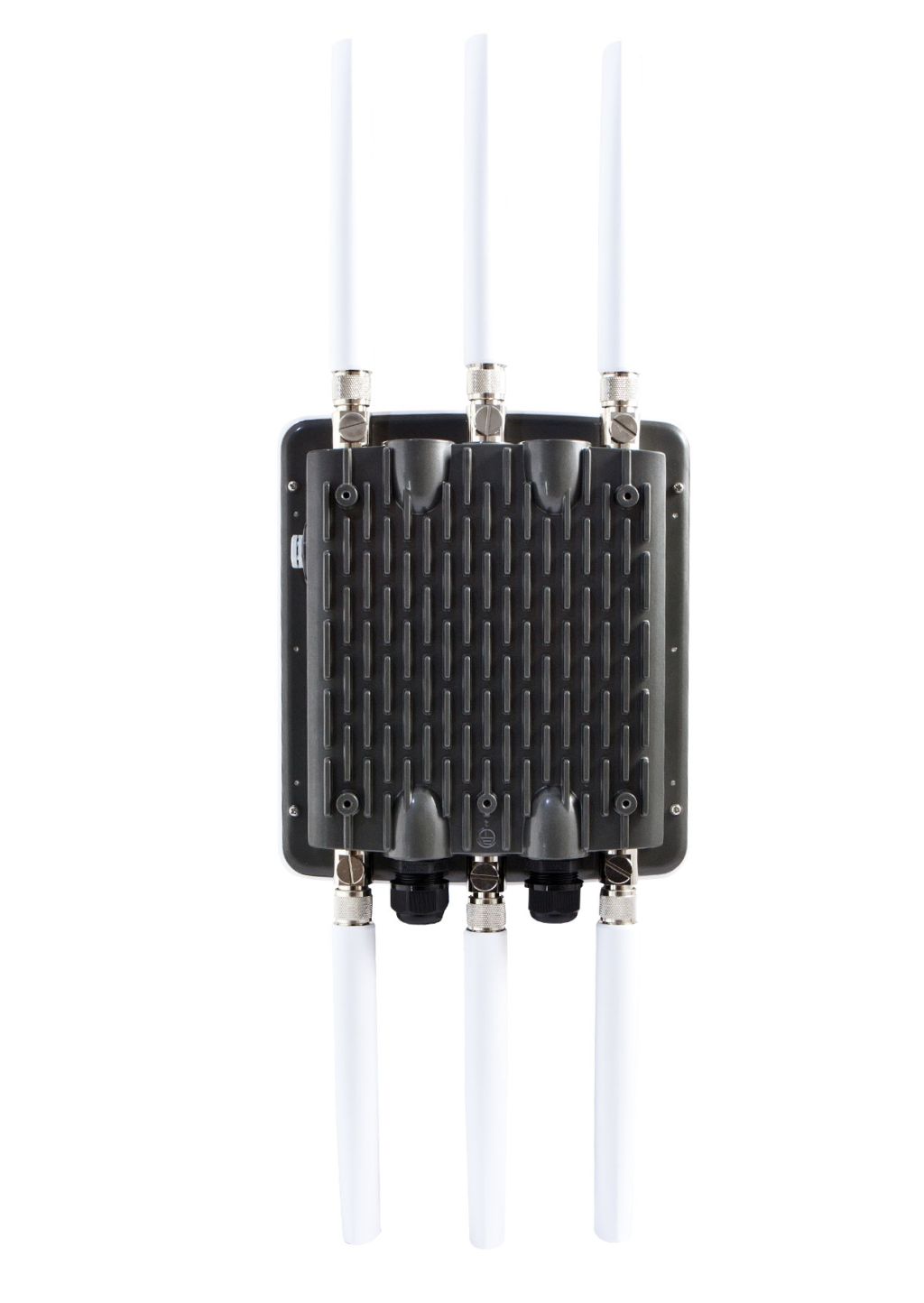

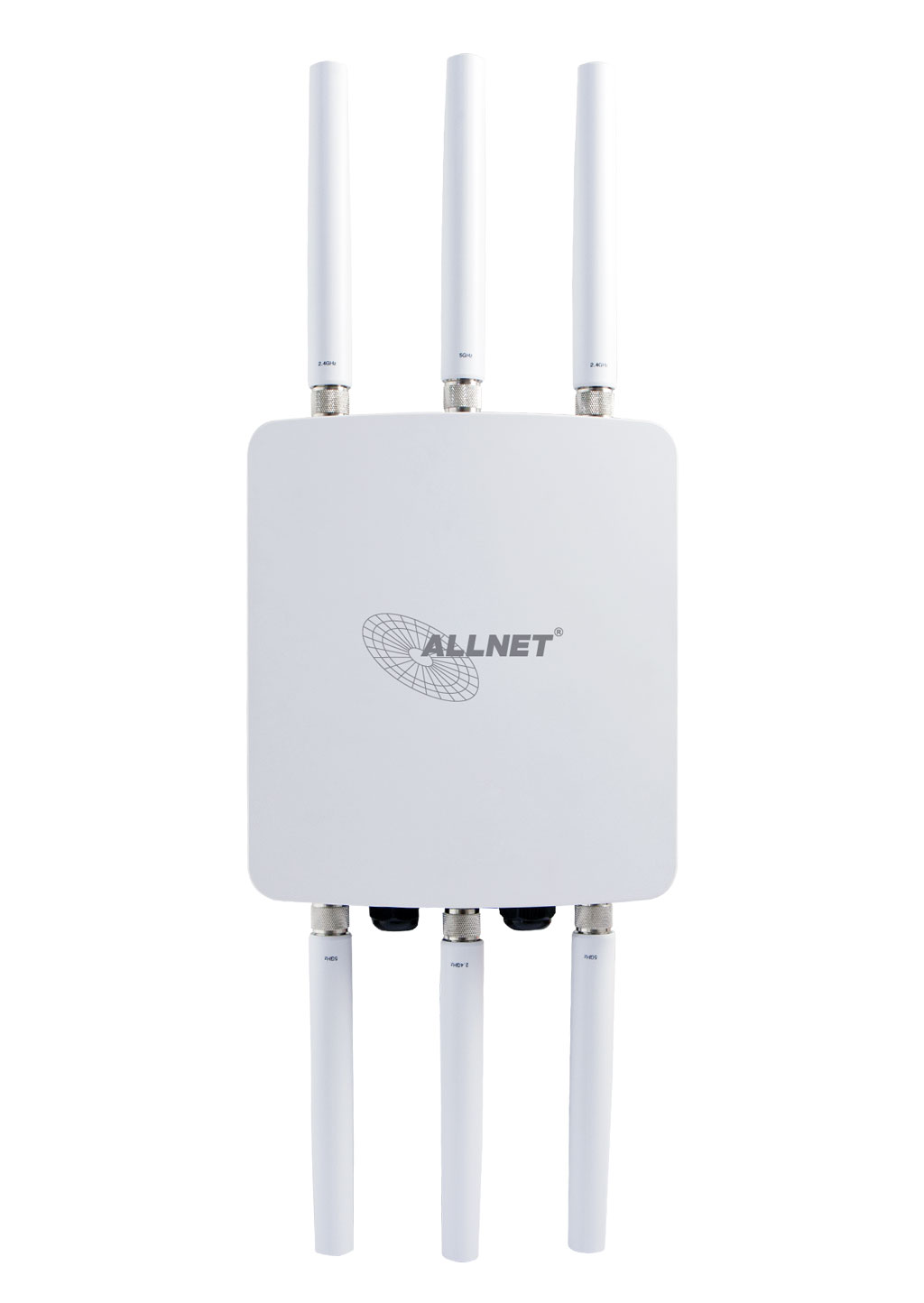

The ALLNET ALL-WAP0305AC is a high performance, long-range outdoor wireless AC dual band 2.4 / 5 GHz Wireless-N access point, which has a high transmission power (29 dBm at 2.4 GHz and 5 GHz).
With wireless speeds of up to 1300 Mbps in the 5 GHz and 450 Mbps in the 2.4 GHz band, with one Gigabit-PoEport in an one Gigabit PoE-port out to connect to an other switch or router, the ALL-WAP0305AC is ideal for the development of a network with greater bandwidth to connect many users. The second PoE port is ideal for use for IP cameras or other PoE-enabled devices.
The ALL-WAP0305AC can be operated in various modes - as a dual-band wireless-n access point, Mesh (2,4 GHz only), WDS Access Point, WDS Bridge orWDS station.
He works simultaneously in the 2.4 GHz and 5 GHz frequency band and supports 802.11a / b / g / n / ac. Other functions such as multiple SSIDs (each SSID can be assigned to a VLAN), Spanning Tree, QoS (WMM), WPA/WPA2 PSK/EAP and 802.1X RADIUS completes the spectrum.
You can provide the ALL-WAP0305AC with the 802.3at standard 30W and also connect a PoE 802.3af capable device directly to the AP. The IP68 protection class housing leaves the ALL-WAP0305AC in low ambient conditions not down.
Technical details:
Element
| Spezification | Standards: | IEEE 802.11a/b/g/n/ac | Frequenzy Band: | Simultanously 2.4 and 5 GHz:
Radio I: 11b/g/n: 2.412~2.484 GHz
Radio II: 11a/n/ac: 5.18-5.24 and 5.26-5.32 and 5.5-5.7 and 5.745-5.825 GHz | Modulation: | 802.11b: BPSK, QPSK, CCK
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
802.11b: Direct-sequence spread-spectrum (DSSS)
802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM)
802.11n/ac: 3 x 3 MIMO with 3 streams
802.11ac with 20/40/80 MHz channel width
802.11n with 20/40 MHz channel width
802.11a/b/g with 20 MHz channel width | Antennas: | 6x N-Type Female Connectoren
3x 5dbi bei 2,4 GHz
3x 5dbi bei 5 GHz | Data rate: | up to 1300 Mbps in 5 GHz; up to 450 Mbps in 2.4 GHz
802.11b: 1, 2, 5.5, 11
802.11a/g: 6, 9, 12, 18, 36, 48, 54
802.11n: 6.5 to 450 (MCS0 to MCS15)
802.11ac: 6.5 to 1300 (MCS0 to MCS15, nss: 1 to 3) | Memory: | 128MB RAM / 16MB Flash | Operating modes: | Access Point/Mesh (only 2,4GHz) and WDS | WDS Details: | WDS AP
WDS Bridge
WDS Station | Security: | WEP Encryption (64, 128, 152 bit)
WPA/WPA2 Personal (WPA-PSK using TKIP or AES)
WPA/WPA2 Enterprise (WPA-PSK using TKIP or AES)
Hide SSID in beacons
MAC Address Filtering
Wireless STA (Client) Connection List
Https Support
SSH Support | Management: | Client Statistics
Save Configuration as User Default
Fast Roaming
Email Alerts
RADIUS Accounting
Guest Network
CLI Supported
Distance Control (Ack Timeout)
802.1X Supplicant (Client Bridge mode)
Multicast
Auto Reboot
Obey Regulatory Power
SNMP v1, v2c, v3
AZ-Wireless-Management (SNMP) Software kompatibel | Services: | CLI
Distance Control (AcK Timeout)
Multicast
Wi-Fi Scheduler
Band Steering
Fast Roaming
Fast Handover
Auto Channel Selection
BSSID support
16 SSIDs support
Support 8 SSIDs on each 2.4 GHz and 5 GHz bands
Independent VLAN settings can be enabled or disabled
Any packet without a VLAN tag will be inserted with a PVID (Ethernet Port VID)
VLAN Pass-through (over WDS Bridge)
SNMP v1/v2c/v3, MIB I/II, Private MIB
Client Traffic Status
Guest Network
Email Alert
QoS: Complaint with IEEE 802.11e standard

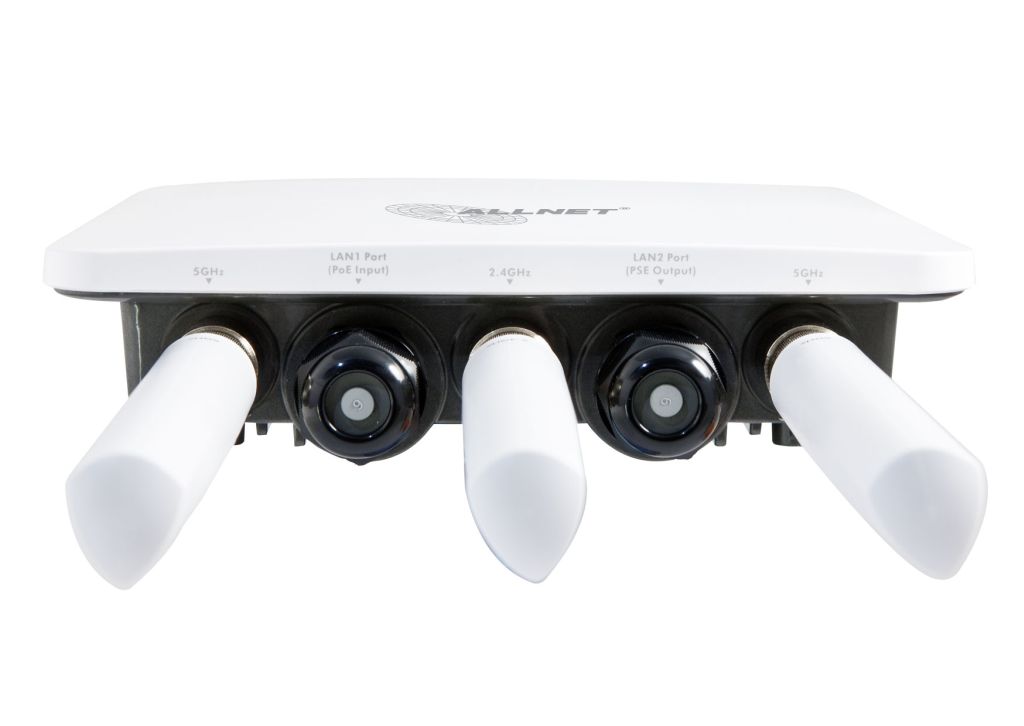

RADIUS Accounting | SSID-to-VLAN Tagging: | supports 802.1q SSID-to-VLAN tagging/Pass trough | Spanning Tree: | supports 802.1d Spanning Tree Protocol | VPN: | Pass-through (PPTP, L2TP, IPSec) | Interfaces: | 1x 10/100/1000 Gigabit Ethernet Port PoE AT IN
1x 10/100/1000 Gigabit Ethernet Port PoE AF OUT
1x Reset Button at injector
1x power supply | Power supply only through Power over Ethernet: | supports IEEE 802.3at 30W, injektor including | LED indikators: | 1x on/off
1x LAN 1
1x LAN 2
1x 2,4GHz
1x 5 GHz | Housing: | Outdoor-metall housing | Housing-protection class: | IP68 | Dimensions/Weight: | 284 x 217 x 53 mm
Weight: 1,89 kg (only device) | Environment: | Temperature operating: -20 ~ 70 °C
Humidity operating: 10% ~ 90% (non condensing)
Temperature storage: -300 ~ 80 °C
Humidity storage: 30% ~90% (non condensing) | Marks: | CE, FCC, IC, RoHS | Package contents: | 1x ALL-WAP0305AC dual band outdoor access point/client bridge
1x PoE Injector
1x RJ-45 ethernet cable
1x Short description
1x CD with user´s manual
1x Set screws for mounting
1x Wall mounting kit
1x Pole mount adapter
3x 2,4GHz Antennas
3x 5GHz Antennas | Downloads
