Bullet Netzwerkkameras

Bessere Bildqualität,Tag und Nachsicht, Bewegungserkennung, Nachverfolgung, PoE fähig, offene Standards, Integration in NVR und weitere Merkmale zeichnen einige ALLNET Kameras aus und sind für den Außen- u. Innenbereich erhältlich.

bullet network cameras


ALLNET ALL-CAM2397-LE / IP-Cam Full HD Mini Bullet IP66 "IR"

Art. nr. 114579

> Zum Online Shop

Highlights:

  • 3MP high resolution
  • HD video Output
  • Low ilumination
  • 3D DNR & DWDR & BLC
  • IP66 Outdoor
  • IR-Light Range up to 30m
  • True day / night

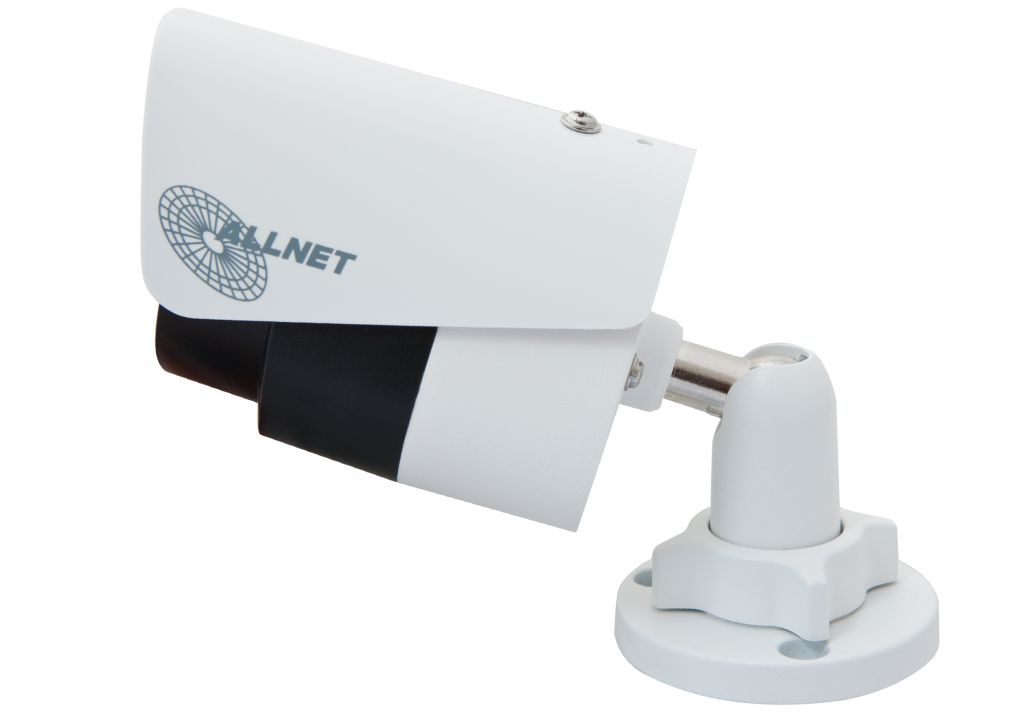

The Full HD infrared bullet IP Camera ALL-CAM2397-LE with IP66 case and the sophisticated mechanical design suites well for inhouse- and outdoor installations.



The camera supports 1920 x 1080 Full-HD video and many features of modern network cameras as well.



The ALL-CAM2397-LE is suitable for day & night use and especially for areas where you need high quality recordings. These includes to be monitored properties,  public areas, storage facilities and much more.

Technical Details:





Camera



Image Sensor:

1/3" Progressive Scan CMOS

Min. Illumination:

0.07Lux @ (F1.2, AGC ON) ,0 Lux with IR

Shutter time:

1/25(1/30) s to 1/100,000 s

Lens:

4mm @ F2.0

1920 × 1080:Angle of view: 79°(4mm) 2048 × 1536: Angle of view: 70°(4mm)

Lens Mount:

M12

Day& Night:

IR cut filter with auto switch

Wide Dynamic Range:

Digital WDR

Digital noise reduction:

3D DNR



Compression Standard



Video Compression:

H.264/M-JPEG

Bit Rate:

32 Kbps ~ 16 Mbps

Dual Stream:

Yes






Max. Image Resolution:

2048×1536

Frame Rate:

50Hz: 20fps (2048 × 1536), 25fps (1920 × 1080), 25fps (1280 × 720)
60Hz: 20fps (2048 × 1536), 30fps (1920 × 1080), 30fps (1280 × 720)

Image Settings:

Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser

BLC:

Yes, zone configurable

ROI:

Yes, up to 4 configurable areas



Network



Network Storage:

NAS

Alarm Trigger:

Motion detection, Dynamic analysis, Tampering alarm

Protocols:

TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,
PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour

Security:

User authentication, watermark

System Compatibility:

ONVIF, PSIA, CGI, ISAPI



Interface



Communication Interface:

1 RJ45 10M / 100M ethernet interface

Reset Button:

Yes



General



Operating Conditions:

-30 °C ~ 60 °C (-22 °F ~ 140 °F)
Humidity 95% or less (non-condensing)

Power Supply:

12 VDC ± 10%, PoE (802.3af)

Power Consumption:

Max. 5 W (Max. 7 W with IR cut filter on)

Weather Proof:

IP66

IR Range:

-I: Approx 20 to 30 meters(65.6-98.4ft)

Dimensions:

60.4×76.9×139.28 mm (2.4” × 3.0” × 5.5”)

Weight:

500g (1.1 lbs)

Accessory

 Article NoProductname
ALLNET TP Cat 6 Überspannungs-/Blitzschutz Surge Protector ALL95100
ALLNET PoE Injektor Gigabit PoE & PoE+ (15,4W/30W) / Kunststoffgehäuse / "ALL0488v6"
ALLNET PoE Injektor Gigabit / PoE & PoE+ & PoE & LT PoE (15,4W/30W/60W/90W) / Metallgehäuse / "ALL048900v2"
ALLNET Switch unmanaged 8 Port Gigabit 63W / 4x PoE+ / 4x LAN / Lüfterlos /19" / "ALL8804PoE+"
ALLNET Switch unmanaged 8 Port Gigabit 150W / 8x PoE+ / 4x LAN / Lüfterlos / 19" / "ALL8808POE"
ALLNET Switch full managed 8 Port Gigabit 130W / 8x PoE+ / 2x SFP / Lüfterlos / 19" / "ALL-SG8610PM"
ALLNET PoE USV Backup - USV für Kameras, Accesspoints ALL90011PoE
