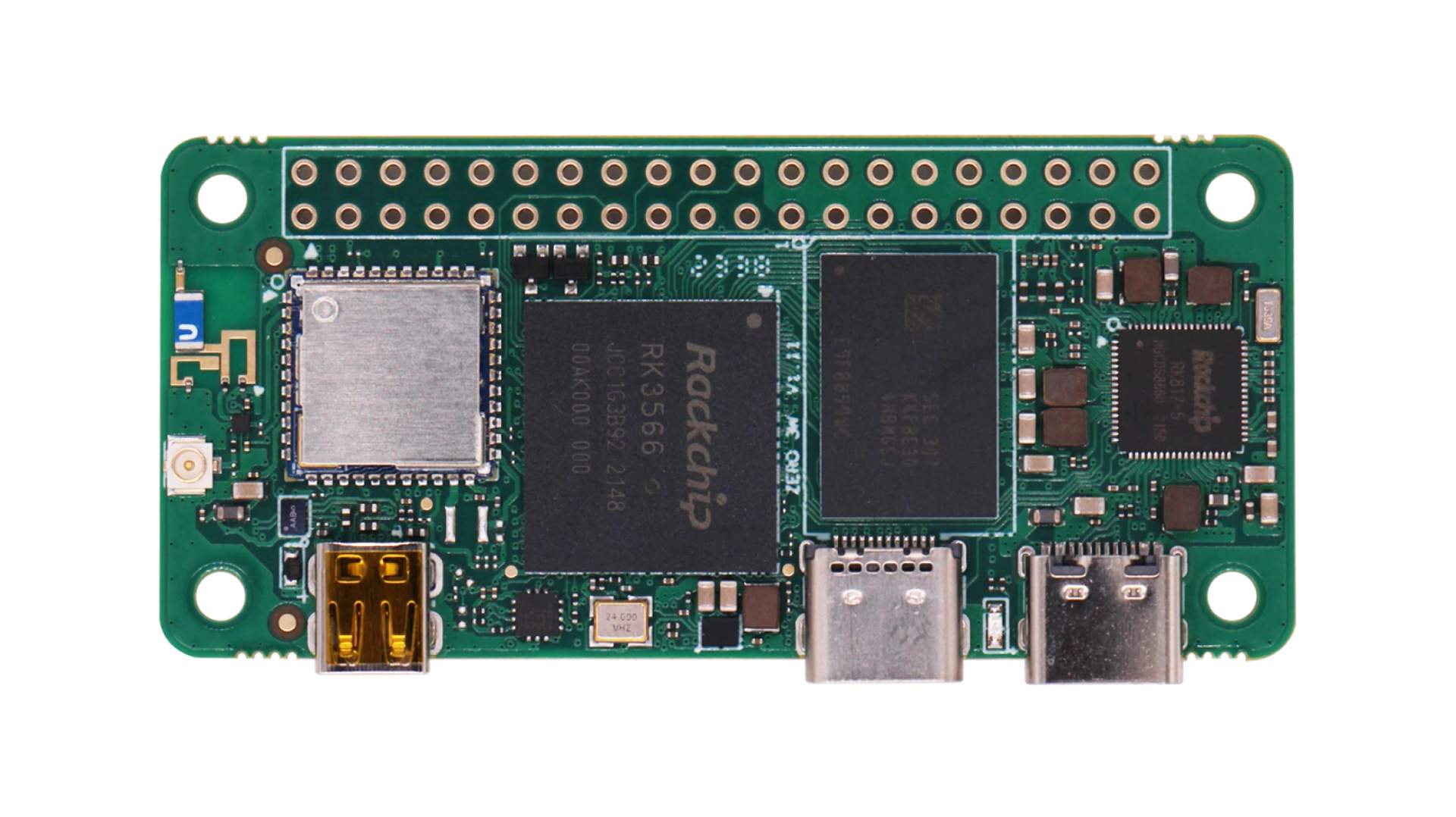

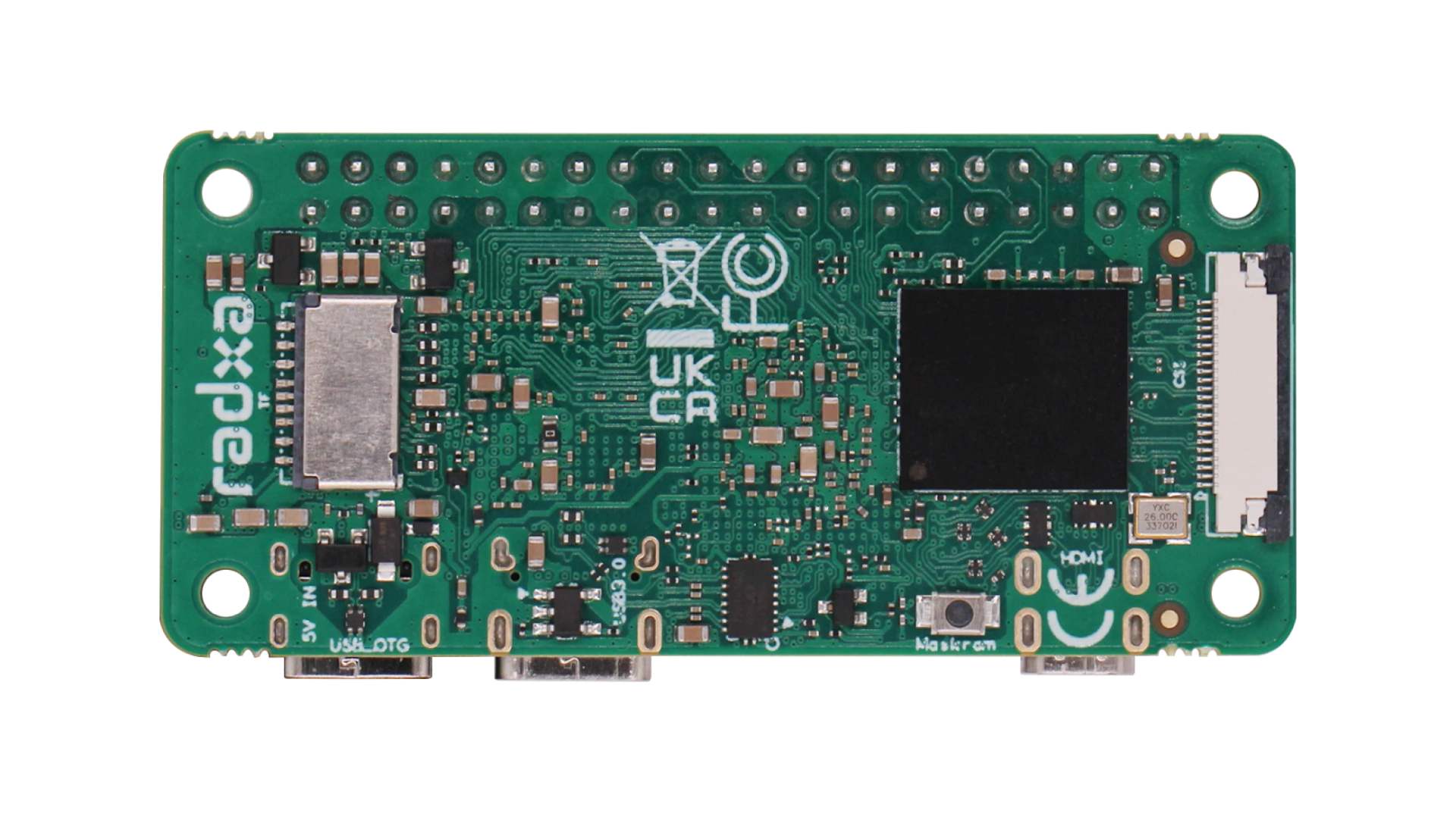

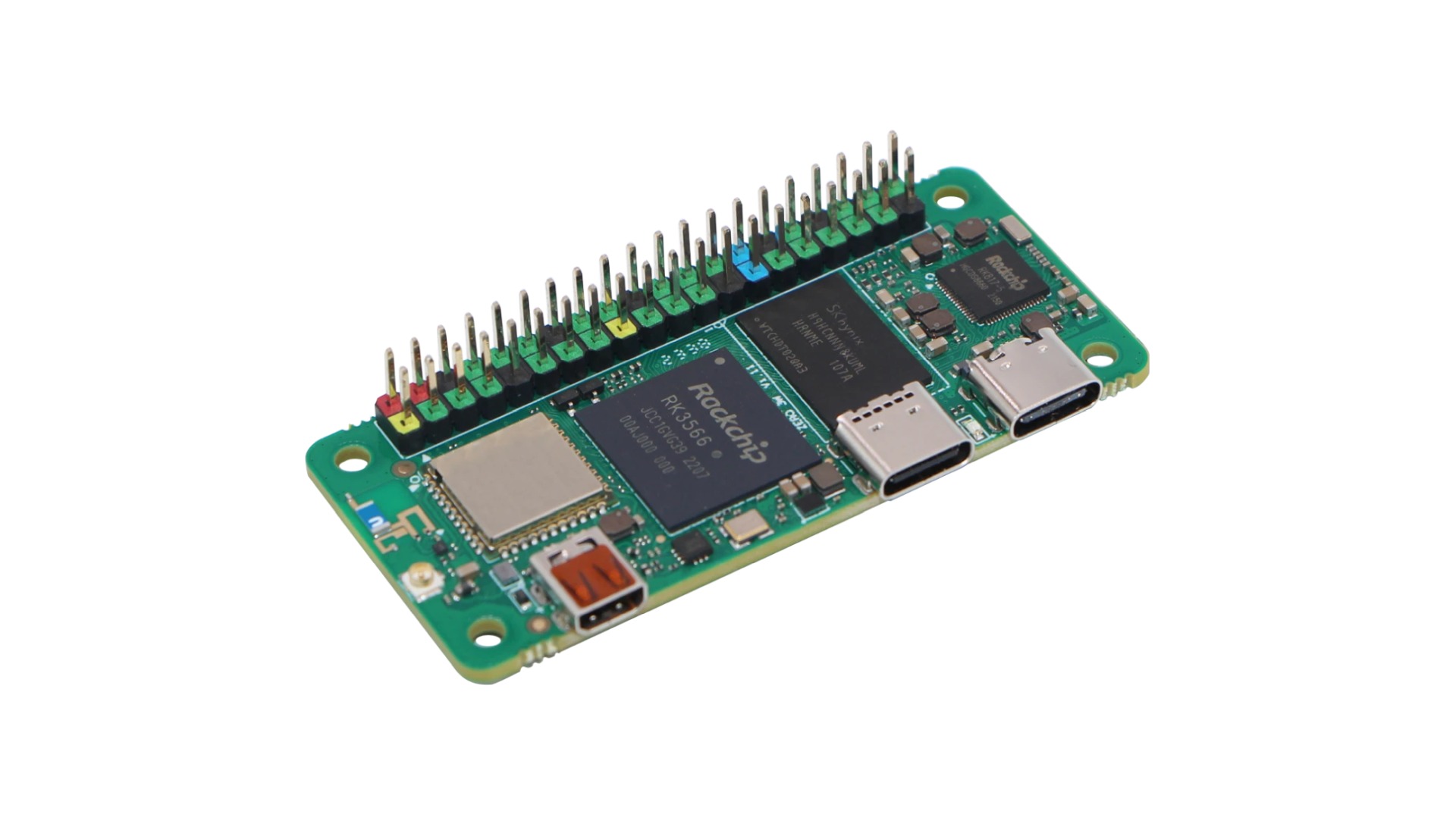

Introducing the RADXA Zero 3W: Experience Quadcore Power in the Palm of Your Hand!

Entfesseln Sie das Potenzial des Rockchip RK3566 64-Bit-Quad-Core-Prozessors, der außergewöhnliche Leistung in einem kompakten Formfaktor liefert, der an einen USB-Stick erinnert. Mit bis zu 8 GB LPDDR4-RAM definiert das RADXA Zero 3W das Mini-SBC-Computing neu.

Key Features:

Rockchip RK3566 64bit quad-core processor

Quad-core Arm® Cortex®-A55 (ARMv8) 64-bit @ 1.6GHz

Arm Mali?-G52-2EE GPU for immersive graphics capabilities

LPDDR4 RAM options: 1GB / 2GB / 4GB / 8GB

Onboard WiFi/BT options: WiFi4+BT or WiFi6+BT5.4

Flexible storage with soldered high-performance eMMC 5.1 (8GB/16GB/32GB/64GB)

Experience versatility and power like never before with the RADXA Zero 3W.

Product information

Rockchip RK3566 64bit quad core based Mini SBC

Quadcore power with up to 8GB LPDDR4 RAM with the dimensions of an USB-stick.

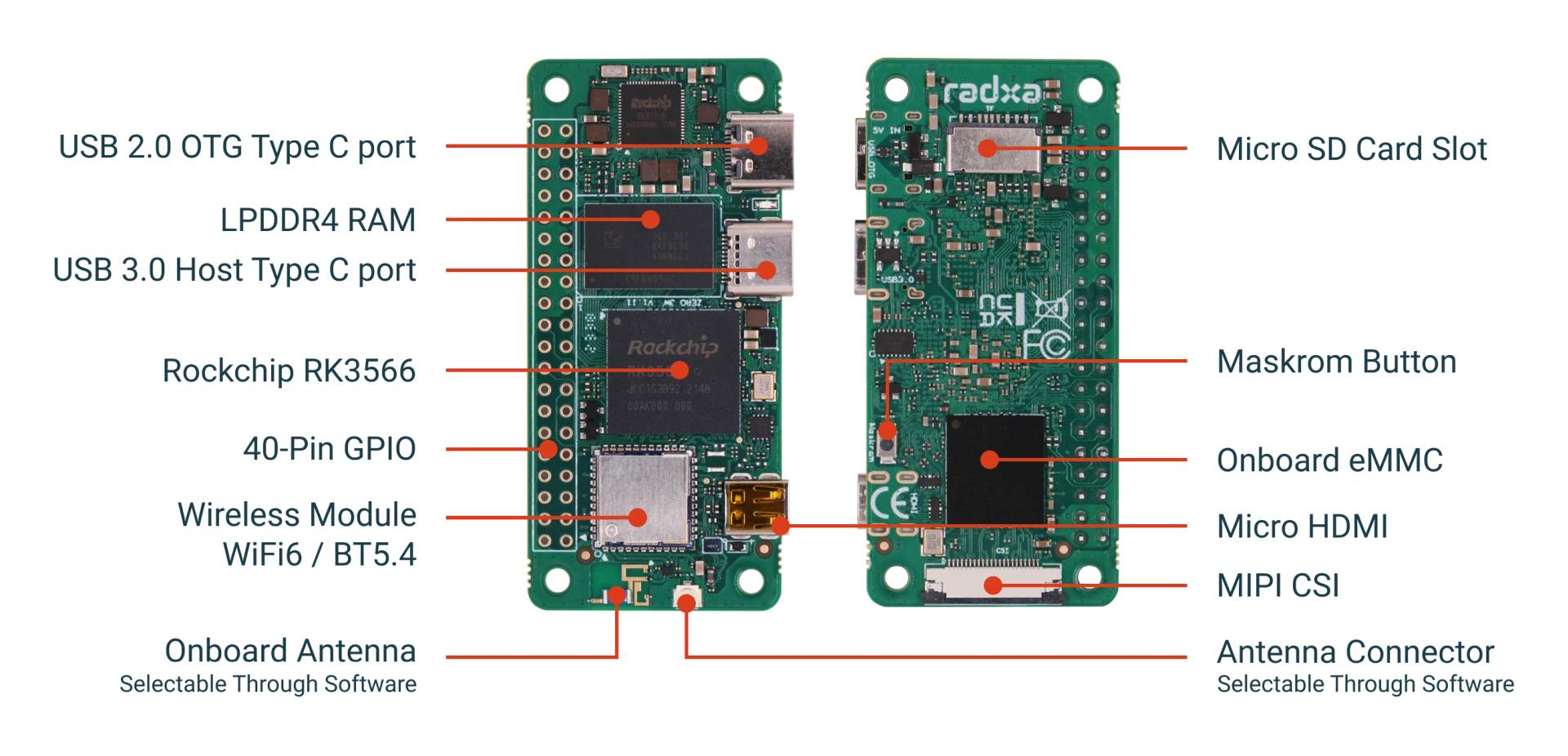

RADXA Zero 3W product details

Rockchip RK3566 64bit quad core processor

Quad-core Arm® Cortex®-A55 (ARMv8) 64-bit @ 1.6GHz

GPU

Arm Mali?-G52-2EE, OpenGL® ES1.1/2.0/3.2, Vulkan® 1.1, OpenCL? 2.0

Memory LPDDR4

LPDDR4 1GB /2GB /4GB /8GB

WiFi/BT onboard (WiFi4+BT/WiFi6+BT5.4)

WiFi4 (802.11 a/b/g/n) /BT with onboard antenna and uFL connector*

WiFi6 (802.11 a/b/g/n/ac/ax) /BT5.4 with onboard antenna and uFL connector*

* antenna option can be configured via software

Storage eMMC 5.1

soldered high performance eMMC 5.1 with capacities of 8GB/ 16GB/ 32GB/ 64GB

Micro SD card

uSD slot supports up to 128G uSD card

Display Micro HDMI

1080p@60fps via Micro HDMI

Peripherie

H.264/H.265 decoder up to 4K@60fps

H.264/H265 encoder up to 1080p@60fps

USB 3.0 Type-C HOST x1

USB 3.0 HOST

USB 2.0 Type-C OTG x1

USB 2.0 OTG (for power and data)

MIPI CSI x1

MIPI CSI Camera Interface

Network

Wireless 802.11 abgn, WiFi4, Bluetooth 5.0

Wireless 802.11 abgn/ac/ax, WiFi6, Bluetooth 5.4

IO 40-pin expansion header (depending on the model):

- up to 5 x UART

- 1 x SPI bus

- up to 2 x I2C bus

- 1 x PCM/I2S

- up to 6 x PWM

- up to 28 x GPIO

- 2 x 5V DC power in

- 2 x 3.3V power pin

Software

- ARMv8 Instruction Set

- Debian/Ubuntu Linux support

- Hardware access/control library for Linux

Others

Maskrom button

Size 65mm x 30mm

Essentials You Need

RADXA ZERO 3W

Power adapter with USB type C port equal or larger than 5W

MicroSD Card or onboard eMMC module

Keyboard & Mouse

Monitor with HDMI input

______________________________________________________

Additional information & Setup instructions

https://docs.radxa.com/zero/zero3/getting-start
