Rockchip RK3566 64bit quad core based Mini SBC

Quadcore power with up to 8GB LPDDR4 RAM with the dimensions of an USB-stick.

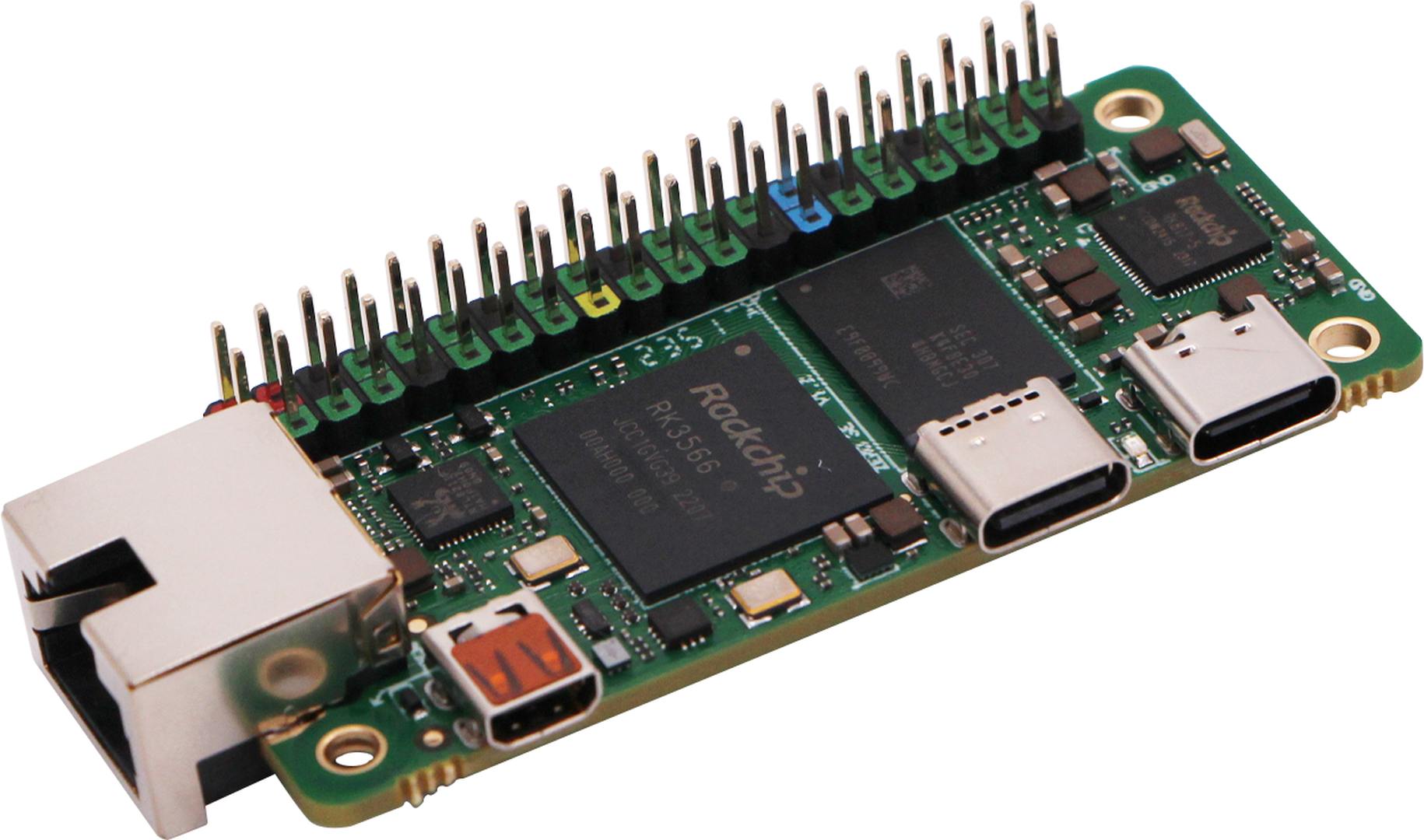

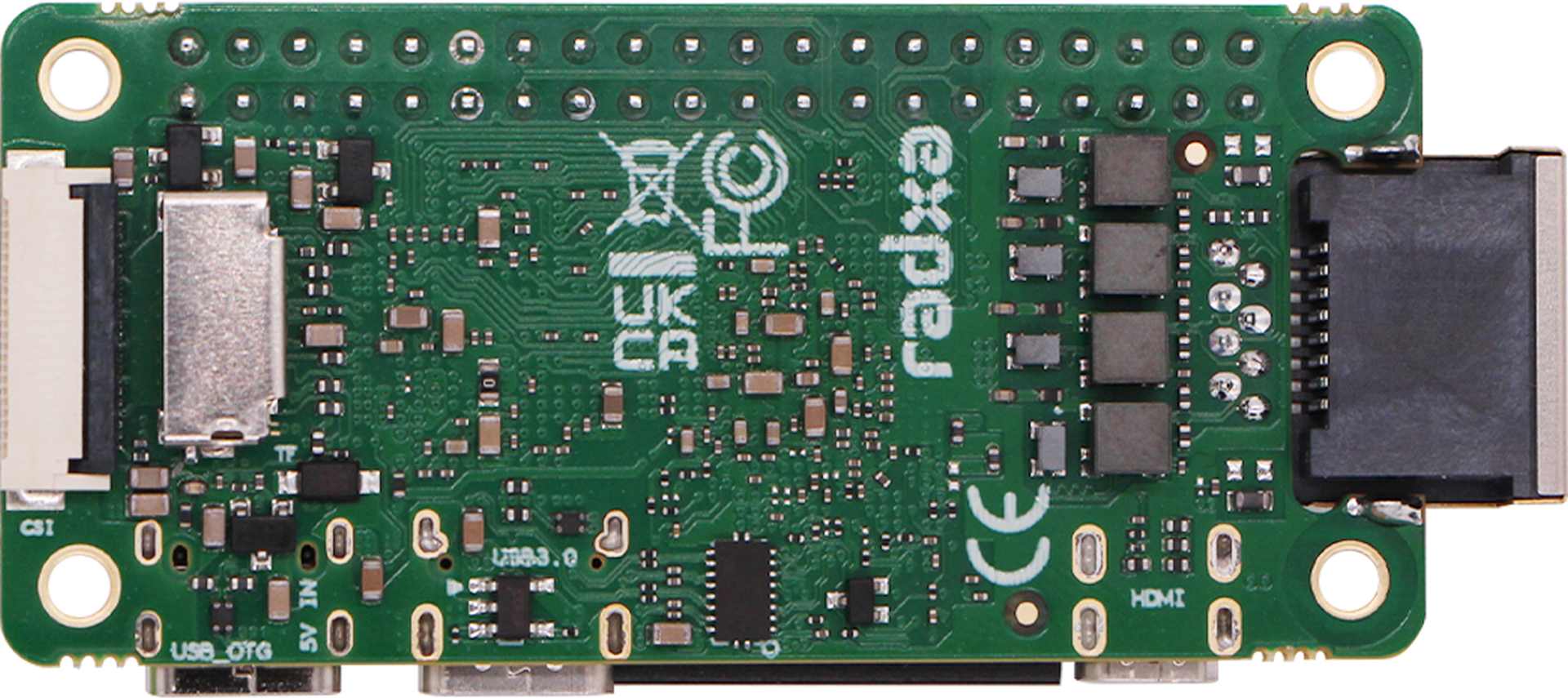

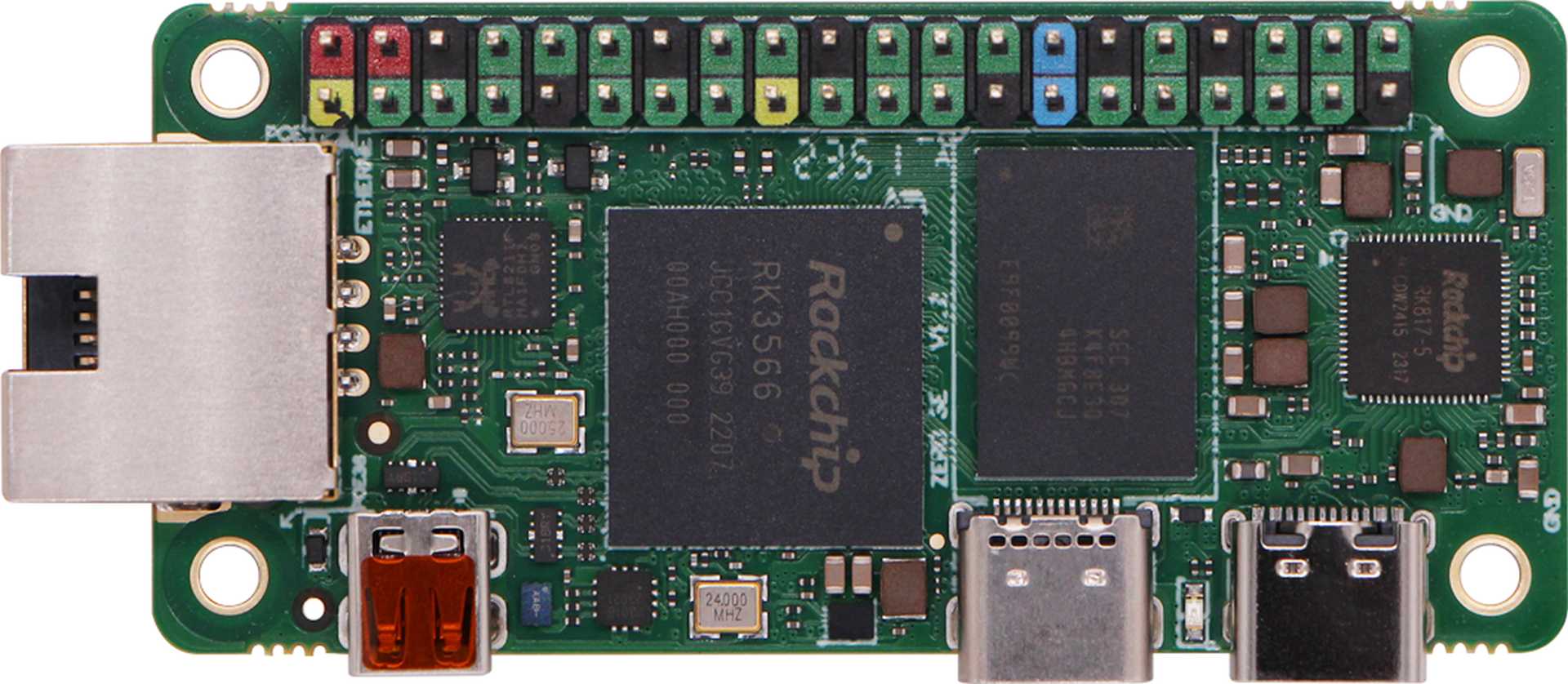

RADXA Zero 3E product details

Rockchip RK3566 64bit quadcoreprocessor

Quad-core Arm® Cortex®-A55 (ARMv8) 64-bit @ 1.6GHz

GPU

Arm Mali?-G52-2EE, OpenGL® ES1.1/2.0/3.2, Vulkan® 1.1, OpenCL? 2.0

Memory LPDDR4

LPDDR4 1GB /2GB /4GB /8GB

Micro SD card

TF Card Slot

Display Micro HDMI

1080p@60fps via Micro HDMI

H.264/H.265 decoder up to 4K@60fps

H.264/H265 encoder up to 1080p@60fps

USB 3.0 Type-C HOST x1

USB 3.0 HOST

USB 2.0 Type-C OTG x1

Micro USB 2.0 OTG (for power and data)

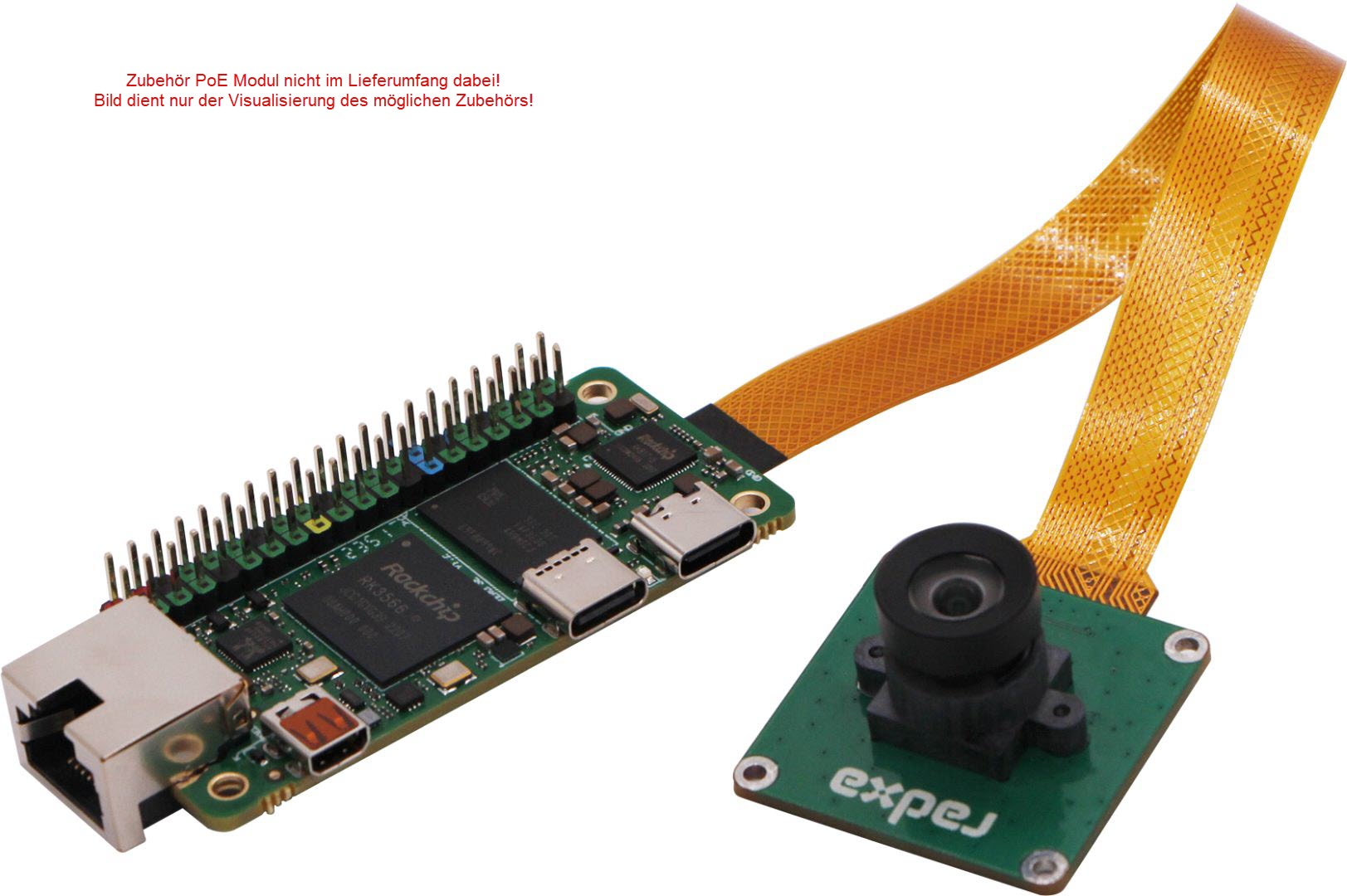

MIPI CSI x1

MIPI CSI Camera Interface (4-lane MIPI CSI)

Network

Gigabit Ethernet with PoE support (additional PoE HAT required)

IO 40-pinexpansionheader:

- up to 5 x UART

- 1 x SPI bus

- up to 2 x I2C bus

- 1 x PCM/I2S

- up to 6 x PWM

- up to 28 x GPIO

- 2 x 5V DC power in

- 2 x 3.3V power pin

Software

- ARMv8 Instruction Set

- Debian/Ubuntu Linux support

- Hardware access/control library for Linux

Others

Size 65mm x 30mm

Operating Temperature 0-50° C

Essentials You Need

• RADXA ZERO 3E
• Power adapter with USB type C port equal or larger than 5W (DC 5V/1A)
• MicroSD Card or onboard eMMC module
• Keyboard & Mouse
• Monitor with HDMI input

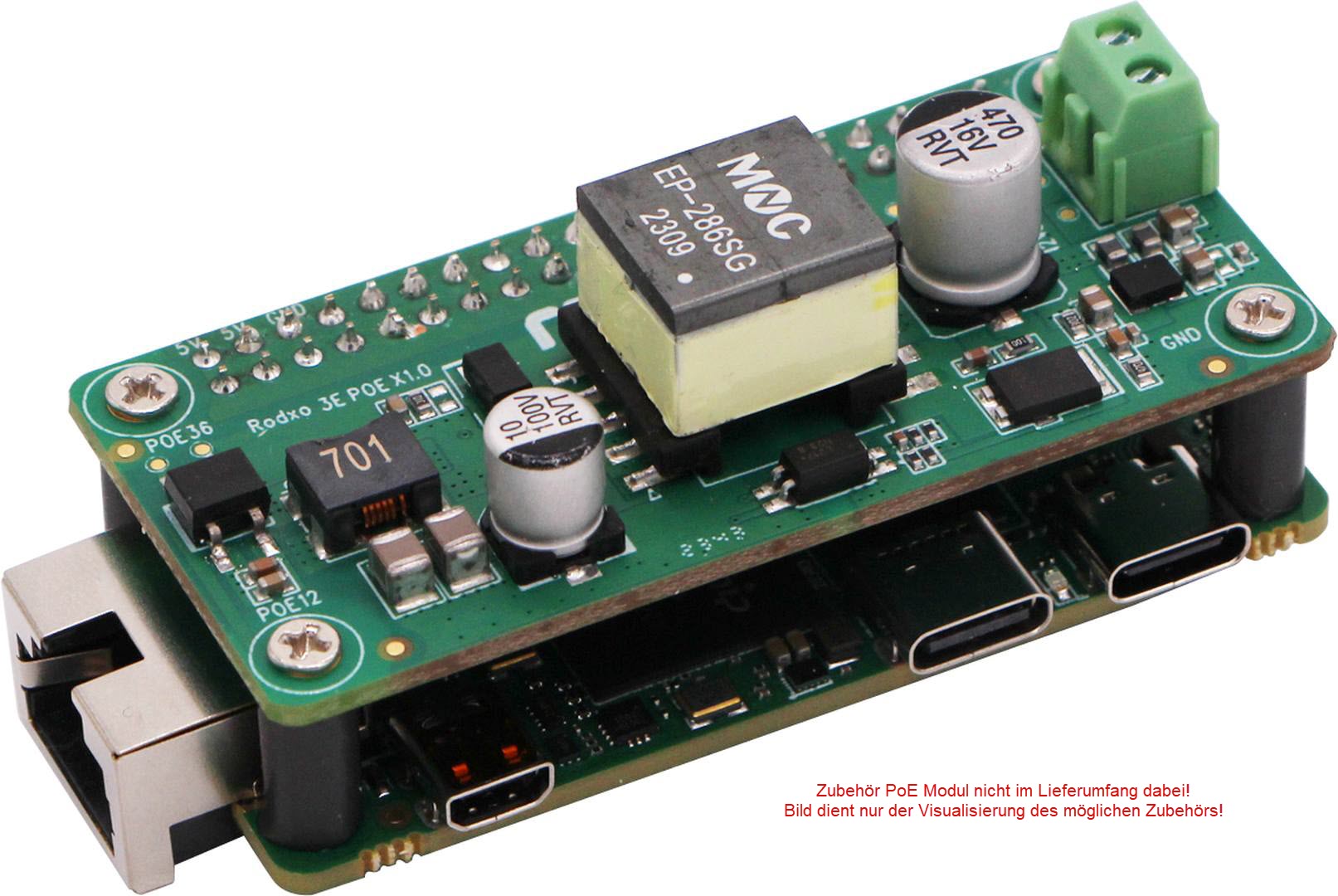

• opt. PoE HAT

______________________________________________________

Additional information & Setup instructions

https://docs.radxa.com/zero/zero3/getting-start
