Khadas_ VIM2 Pro
highlights

Android 7.1 + Ubuntu + Buildroot + Docker Multi-OS

Pre-installed with Android, you can also install Ubuntu, Buidroot, Dockworker OS, it will bring you a surprise experience with it.

Amlogic S912 Octa Core CPU

Fast and stable performance can give you a high-speed feedback and smooth response.

DDR4 3 GB RAM, ROM eMMC 32GB

It is configured with DDR4 3 GB RAM and 32 GB eMMC ROM, so it can provide enough space and freedom to install apps without worrying about losing enough storage space.

Bluetooth 4.2 connectivity

Easy pairing with most Bluetooth enabled devices.

Gigabit LAN

Gigabit LAN can greatly improve Internet speed and performance.

Multiple Use Case

You can shoot Khadas VIM2 Pro Development Board in SBC, Cluster, Digital Signage, Robotics, IoT, TV Box.

Specification

General information

Fire: Khadas

Model: VIM2 Pro

Type: TV Box

Hardware System: Android Nougat 7.1, Ubuntu 16.04+, Buidroot, Dockworker

CPU: Amlogic S912 1.5 GHz 64Bit Octa - Core ARM Cortex-A53

•     GPU: 750 MHz ARM Mali-T820MP3
•     RAM: 3GB DDR4
•     ROM: 32GB EMMC
•     TF - Card: Molex Slot
•     SPI - Flash: 2MB
•     MCU: STM8S003 with programmable EEPROM

WiFi Communication: AP6359SA, 2X2 MIMO with RSDB

•     Bluetooth: 4.2
•     LAN: 10/100 / 1000M
•     Media HW UHD H.265 / VP9 60fps 10Bit Video Decoder
•     HDR10 and HLG HDR - video processing

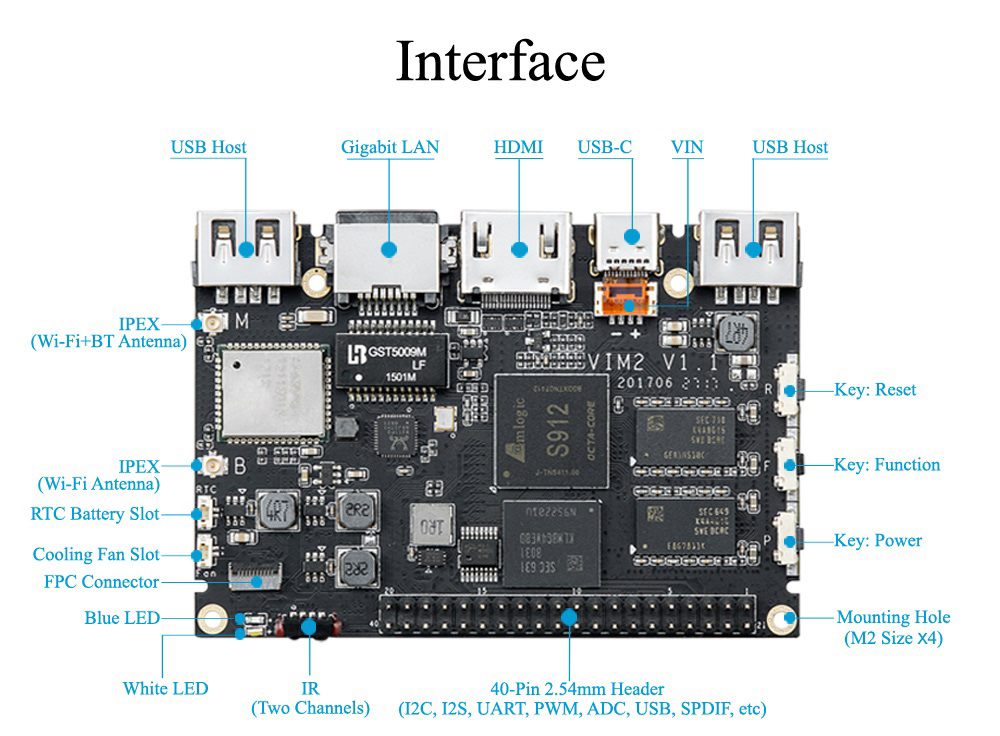

•     Interface HDMI 2.0a: Type-A female, up to 4K @ 60Hz
•     USB2.0 HOST x 2 (900mA and 500mA Load)
•     USB - Type-C: USB2.0 OTG & DC IN

Other characteristics Width Input voltage: range from 5V to 9V, recommended 5.0V

•     Current limit switch: Programmable, 3.0A as standard (up to 4.0A)
•     VIN (Extra Power IN): 4 pins, 1.25 mm pitch header
•     RTC & Battery Category: 0.8 mm pitch header -
•     Fan-header cooling: 3 steps speed, with a 0.8 mm pitch-header
•     40 pins I / O - Header: 2.54 mm, USB, I2C, I2S, SPDIF, UART, PWM, ADC, ISO7816
•     FPC - Connector : 10 pins, 0.5 mm pitch, with I2C, IOs
•     Pogo Pads Array: USB, I2C, DVB-Bus, IOs
•     Pogo Pads MCU: SWIM, UART, ADC, NRST
•     Pogo - Pads for VIN: System Power Input
•     Buttons: x3 (Power / Func / Reset)
•     LEDs: Blue LED x1, white LED - x1

Mounting holes: Size M2 x 4 UEFI: Development of

WOL: Wake up & on Lan

IR receiver: 2 channels

Dimensions and weight Product weight:

0.071 kg
Package weight:

0.150 kg

Product size:

82.0 x 57.5 x 11.5 mm

Package size:

160 x 90 x 20 mm

Package content

1 x Khadas VIM2 Pro TV Box

1 x USB cable C
