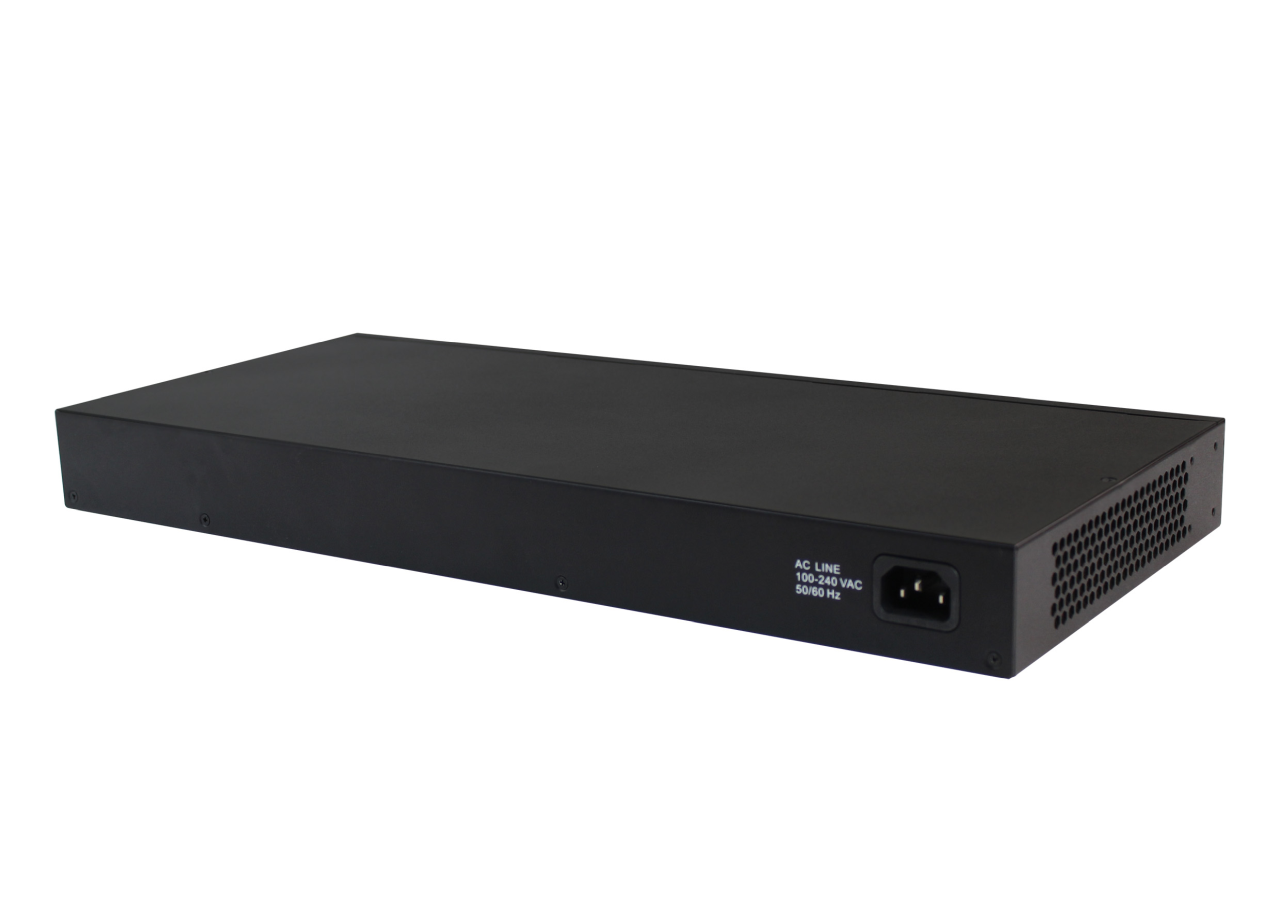

ALLNET ALL-SG8428M-10G ? Smart Managed Switch für maximale Performance
Highlights:- 24x 10/100/1000 Mbps RJ45-Ports
- 4x 1G/10G SFP+ Slots für High-Speed-Uplinks
- Layer-2 Management-Funktionen für effiziente Netzwerkkontrolle
- Energieeffizientes, lüfterloses Design
- Desktop- und Rackmount-fähig (inkl. Montagezubehör)
- Robustes Metallgehäuse für langlebigen Einsatz
Produktbeschreibung
Erleben Sie höchste Netzwerkperformance mit dem ALLNET ALL-SG8428M-10G! Dieser kosteneffiziente 24-Port Gigabit Layer-2 Switch mit 4 zusätzlichen SFP+ Slots bietet eine leistungsstarke, lüfterlose Lösung für anspruchsvolle Business- und Industrieumgebungen. Ideal geeignet für den Einsatz auf dem Desktop oder zur nahtlosen Integration in 19"-Rack-Systeme.
Ihre Vorteile auf einen Blick-
Maximale Flexibilität: 24 Gigabit-Ports + 4 SFP+ MiniGBIC Slots für Glasfaseranbindungen.
-
Lüfterloses Design: Flüsterleiser Betrieb ? perfekt für geräuschempfindliche Arbeitsumgebungen.
-
Non-blocking Architektur: Für verzögerungsfreie Datenübertragung und höchste Netzwerkgeschwindigkeit.
-
Einfache Installation: Unterstützung des NWay-Protokolls zur automatischen Anpassung von Geschwindigkeit und Duplex-Modus.
-
Rackmount-fähig: Ideal für professionelle Server- und Technikräume.

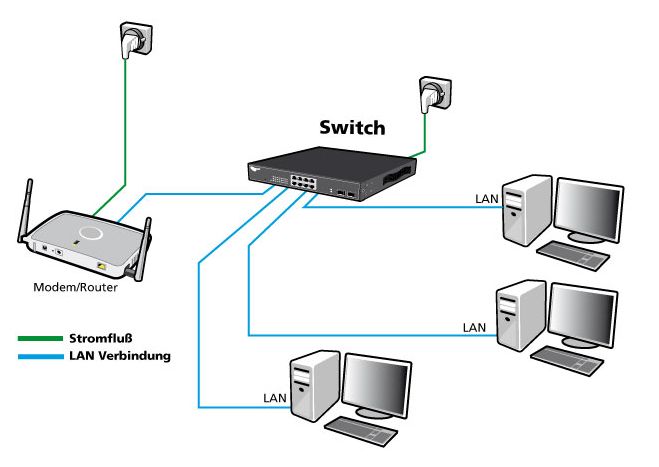

Anwendungsbereiche-
Unternehmen mit hohen Anforderungen an Bandbreite und Zuverlässigkeit
-
Geräuscharme Büroumgebungen
-
Professionelle Rechenzentren und Netzwerkinfrastrukturen
-
Industrieanwendungen dank robuster Bauweise
Technische Daten:
Hardware Specs
Items
|
Specifications
|
Model No.
|
ALL-SG8428M-10G
|
Key Components
|
- RTL9301M+RTL8218Dx3
- Flash IC: MXIC 16M Byte
- DDR: 1G bits
|
I/O ports
|
24x GbE ports, RJ45
4 x 10G ports, SFP+
Reset Button: reset to default setting, re-start system
Console port by RJ45 type
|
LED Define
|
PWR: Green LED
- Off: power off or fail
- On: power on
SYS: Green LED
- Off: power off or fail
- On: system is ready
- Blinking: system booting up
Alert: Red LED
- Off: Switch is normal condition
- On: Alarm for system failure because of overheat, wrong voltage.
1-24 Port LED:
Link/ACT:
- Off: port disconnected or link fail
- Green on: 1000Mbps connected
- Amber on: 10/100Mbps connected
- Blinking: sending or receiving data
25-28 port LED:
SFP+:
- Off: disconnected or fail
- Blue: 10Gbps connected
- Green: 1000Mbps connected
- Blinking: data transmitting
|
HW feature
|
IEEE802.3 10BASE-T
IEEE802.3u 100BASE-TX
IEEE802.3ab 1000BASE-T
IEEE802.3ae SFP+
IEEE802.3az EEE
MAC address Table: 16K
Packet buffer size: 12Mbit
Jumbo Frame: 12K bytes
128Gbps switching capacity
Forwarding rate: 95.2Mpps (64-byte package size)
|
Data Transfer Rate
|
Ethernet:10 Mbps(half duplex),20 Mbps(full duplex)
Fast Ethernet:100 Mbps(half duplex),200 Mbps(full duplex)
Giga Ethernet:2000 Mbps(full duplex)
10 Gigabit Ethernet:20 Gbps(full duplex)
|
System Monitor
|
HW Monitor IC: ADT7463
-
-
-
-
Voltage Monitor
- Input Voltage : 12V (+/-7% Alarm Threshold)
- I/O Voltage : 3.3V (+/- 5% Alarm Threshold)
- DDR Voltage : 1.5V (+/- 5% Alarm Threshold)
- PHY Voltage : 1.1V (+/- 5% Alarm Threshold)
- MAC Voltage:1.0V (+/- 5% Alarm Threshold)
- Temperature Monitor
- BOARD: 0~80°C
- MAC: 0~85°C
- PHY: 0~85°C
|
Power Input
|
Internal power supply
Input: 90~264VAC/47~63Hz
Output: 12V/3A
|
Reset button
|
Support reset to default configuration
|
Dimension
|
441(W) x 196(D) x 44(H) mm
|
FAN Design
|
Fan-less
|
Temperature
|
Operating: 0 ~ 40°C
Storage : -40 ~ 70°C
|
Humidity
|
Operating: 10% ~ 90% RH (non-condensing)
Storage : 5% ~ 90% RH (non-condensing)
|
Software Specs
Status
|
System Information
|
|
|
Logging Message
|
|
|
Port
|
Statistics
|
|
Error Disabled
|
|
Bandwidth Utilization
|
|
Link Aggregation
|
|
|
MAC Address Table
|
8K
|
|
Network
|
IP Address
|
Static / Dynamic
|
|
System Time
|
SNTP / From Computer / Manual Time
|
|
Port
|
Port Setting
|
State / Speed / Duplex / Flow Control
|
|
Error Disabled
|
Recovery Interval
|
ACL / ARP Rate Limit / BPDU Guard / Broadcast Flood / DHCP Rate Limit / Port Security / Self Loop / Unicast Flood / Unknown Multicast Flood
|
Link Aggregation
|
Group
|
|
Port Setting
|
State / Speed / Flow Control
|
LACP
|
|
EEE
|
|
|
Jumbo Frame
|
1518 ? 10000 Byte
|
|
PoE
|
Global Setting
|
Schedule Status
|
|
Priority Setting
|
|
|
Power Limit
|
|
|
Power Show
|
|
|
VLAN
|
VLAN
|
Create VLAN
|
|
VLAN Configuration
|
|
Membership
|
|
Port Setting
|
|
Voice VLAN
|
Property
|
|
Voice OUI
|
|
Protocol VLAN
|
Protocol Group
|
|
Group Binding
|
|
MAC VLAN
|
MAC Group
|
|
Gr-oup Binding
|
|
Surveillance VLAN
|
Property
|
|
Surveillance OUI
|
|
GVRP
|
Property
|
|
Membership
|
|
Statistics
|
|
MAC Address Table
|
Dynamic Address
|
Aging Time
|
|
Static Address
|
|
|
Filtering Address
|
|
|
Spanning Tree
|
Property
|
State / Operation Mode / Path Cost / BPDU Handling
|
Operation Mode : STP/RSTP/MSTP
|
Port Setting
|
|
|
MST Instance
|
|
|
MST Port Setting
|
|
|
Statistics
|
|
|
Discovery
|
LLDP
|
Property
|
|
Port Setting
|
|
MED Network Policy
|
|
MED Port Setting
|
|
Packet View
|
|
Local Information
|
|
Neighbor
|
|
Statistics
|
|
Multicast
|
General
|
Property
|
Unknown Multicast Action / Multicast Forward Method
|
Group Address
|
|
Router Port
|
|
Forward All Table
|
|
Throttling
|
|
Filtering Profile
|
|
Filtering Binding
|
|
IGMP Snooping
|
Property
|
State / Version / Report Suppression
|
Querier
|
|
Statistics
|
|
MLD Snooping
|
Property
|
State / Version / Report Suppression
|
Statistics
|
|
MVR
|
Property
|
State / VLAN / Mode / Group Start / Group Count / Query Time
|
Port Setting
|
|
Group Address
|
|
Security
|
RADIUS
|
|
|
TACACS+
|
|
|
AAA
|
Method List
|
|
Login Authentication
|
Console / Telnet / SSH / HTTP / HTTPS
|
Management Access
|
Management VLAN
|
|
Management Service
|
Telnet / SSH / HTTP / HTTPS / SNMP / Session Timeout
|
Management ACL
|
|
Management ACE
|
|
Authentication Manager
|
Property
|
|
Port Setting
|
|
Sessions
|
|
Port Security
|
|
|
Protected Port
|
|
|
Storm Control
|
|
State / Broadcast / Unknown Multicast / Unknown Unicast / Action (Drop / Shutdown)
|
DoS
|
Property
|
|
Port Setting
|
|
Dynamic ARP Inspection
|
Property
|
|
Statistics
|
|
DHCP Snooping
|
Property
|
|
Statistics
|
|
Option82 Property
|
|
Option82 Circuit ID
|
|
IP Source Guard
|
Port Setting
|
|
IMPV Binding
|
|
Save Database
|
|
ACL
|
MAC ACL
|
|
|
MAC ACE
|
|
|
IPv4 ACL
|
|
|
IPv4 ACE
|
|
|
IPv6 ACL
|
|
|
IPv6 ACE
|
|
|
|
ACL Binding
|
|
|
QoS
|
General
|
Property
|
CoS / DSCP / CoS-DSCP / IP Precedence
|
Queue Scheduling
|
Strict Priority / WRR
|
CoS Mapping
|
|
DSCP Mapping
|
|
IP Precedence Mapping
|
|
Rate Limit
|
Ingress / Egress Port
|
|
Egress Queue
|
|
Diagnostics
|
Logging
|
Property
|
Console / RAM / Flash
|
Remote Server
|
|
Mirroring
|
|
|
Ping
|
|
|
Traceroute
|
|
|
Copper Test
|
|
|
Fiber Module
|
|
|
UDLD
|
Property
|
Message Time
|
Neighbor
|
|
Management
|
User Account
|
|
|
Firmware
|
Upgrade / Backup
|
Action (Upgrade / Backup) / Method (TFTP / HTTP)
|
Active Image
|
Active Image / Backup Image
|
Configuration
|
Upgrade / Backup
|
Action (Upgrade / Backup) / Method (TFTP / HTTP)
|
Save Configuration
|
Source File / Destination File, Restore Factory Default
|
SNMP
|
View
|
|
Group
|
|
Community
|
|
User
|
|
Engine ID
|
|
Trap Event
|
Authentication Failure / Link UP_Down / Cold Start / Warm Start
|
Notification
|
|
RMON
|
Statistics
|
|
|
History
|
|
|
Event
|
|
|
Alarm
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
