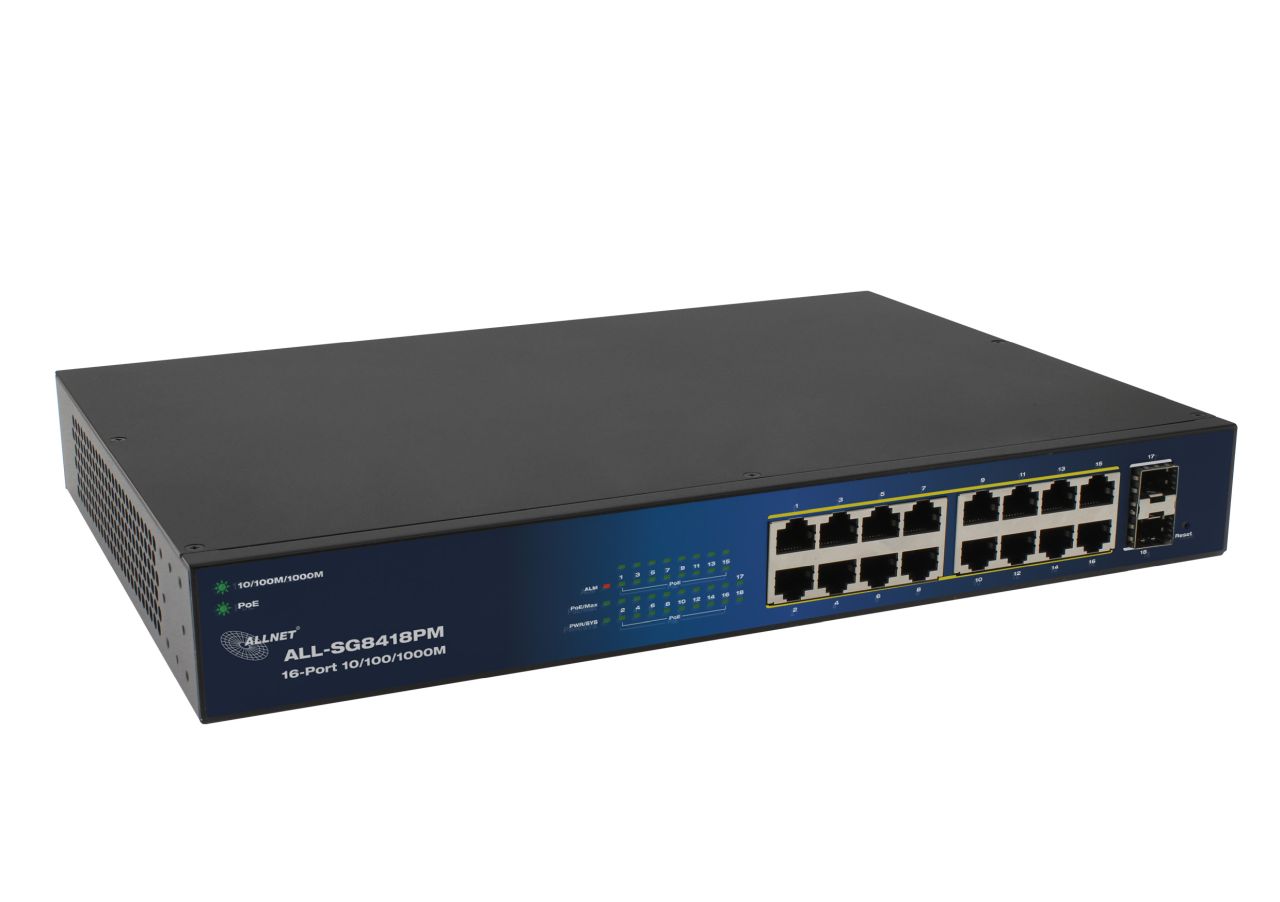

ALLNET 18 Port Managed Gigabit Layer-2 Switch +2x SFP MiniGbic Slots ohne Lüfter für Desktop und 19" Rackinstallation
Highlights: - 18 Port Gigabit non-blocking Switch Architektur
- 16x PoE Ports nach IEEE802.3af/at Standard
- 2x 1GbE SFP Ports für optionale GBIC-Module
- VLAN Port-Based / Tagged Based
- Link Aggregation ( IEEE802.3ad LACP & Static Trunk)
- IGMP Snooping
- QoS (QoS>QoS multi-label, queue config, QoS mapping )
- Total-Lüfterlos, keine nervende Geräusche mehr... max. 240W Budget
- 19"Zoll-Winkel inklusive
- PoE Budget 240W
- Unterstützt Endspan POE
- PoE-Belegung = Endspan (1/2 und 3/6)

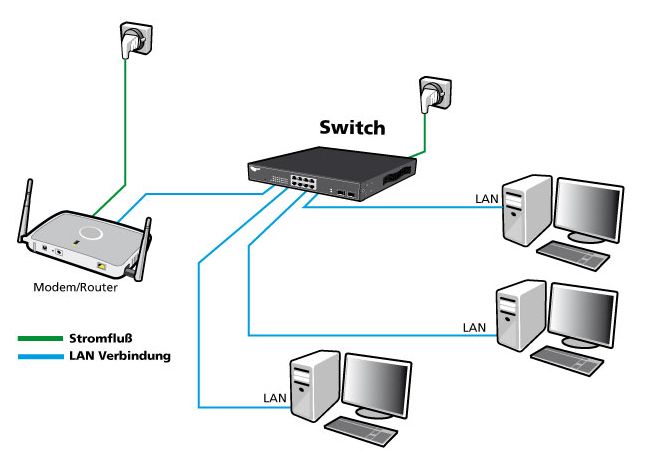

Entdecken Sie den neuen ALLNET ALL-SG8418PM Switch ? die ideale Lösung für kleine und mittlere Arbeitsgruppen, die eine schnelle und zuverlässige Netzwerkverbindung benötigen. Mit 16 abwärtskompatiblen Gigabit PoE Ports bietet dieser Switch eine leistungsstarke Konnektivität für Ihre PoE-fähigen Geräte.
Dank seines lüfterlosen Designs eignet sich der ALL-SG8418PM perfekt für Büroumgebungen, da er keine störenden Geräusche erzeugt. Er ist smart managebar und unterstützt eine Vielzahl von Standards wie QoS, VLAN, Storm-Control und IGMP Snooping, was für höchste Performance und Sicherheit in Ihrem Netzwerk sorgt.

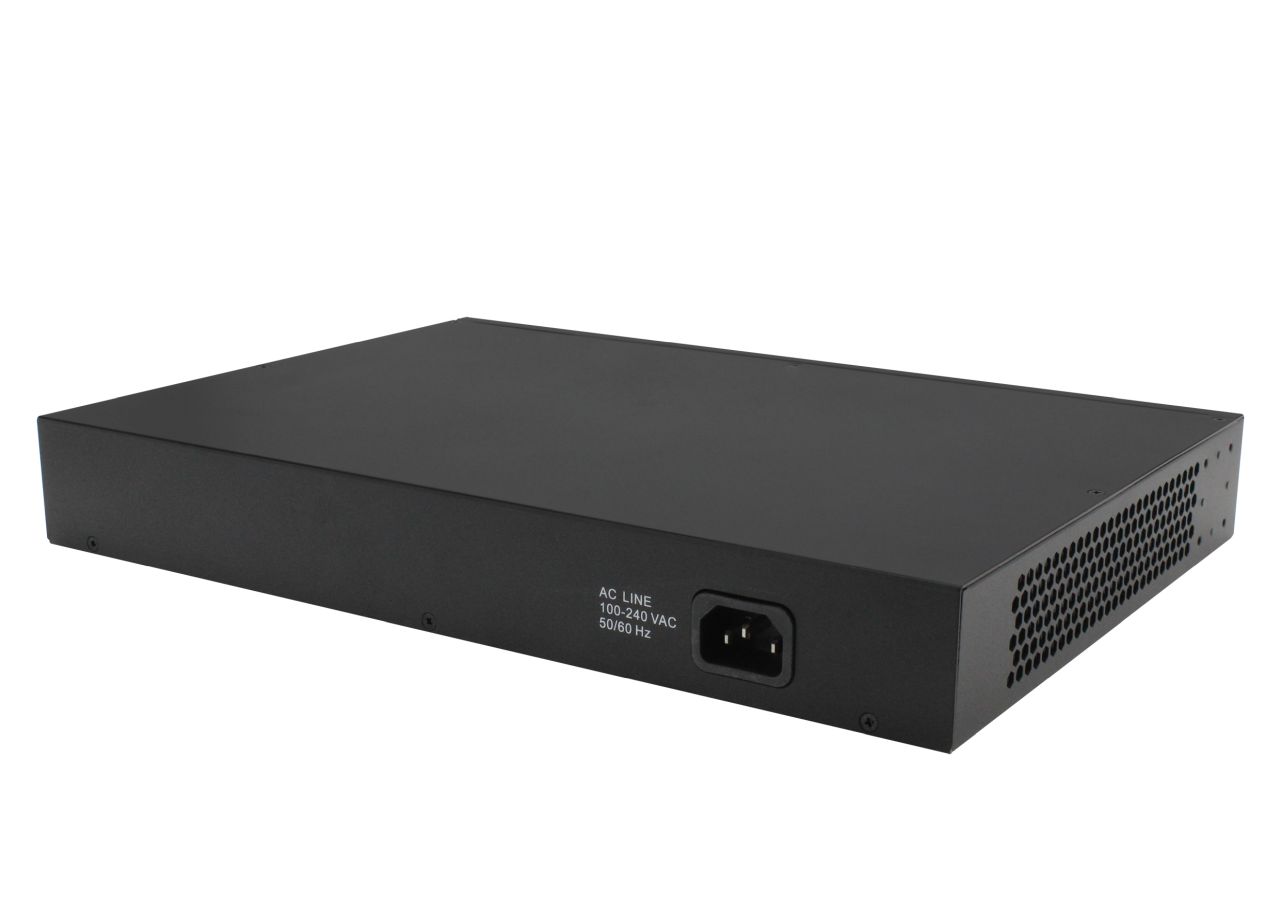

Das robuste Metallgehäuse des Switches ist sowohl für die Montage im 19-Zoll-Schrank als auch zur Wandmontage geeignet. Darüber hinaus verfügt der ALL-SG8418PM über 2x SFP miniGBIC Slots, um auch entfernte Server oder Uplink-Endgeräte über Lichtwellenkabel anzubinden.
Entscheiden Sie sich für den ALLNET ALL-SG8418PM Switch und erleben Sie eine nahtlose Netzwerkverbindung ohne Kompromisse bei Leistung und Zuverlässigkeit.
Mechanische Zeichnung:

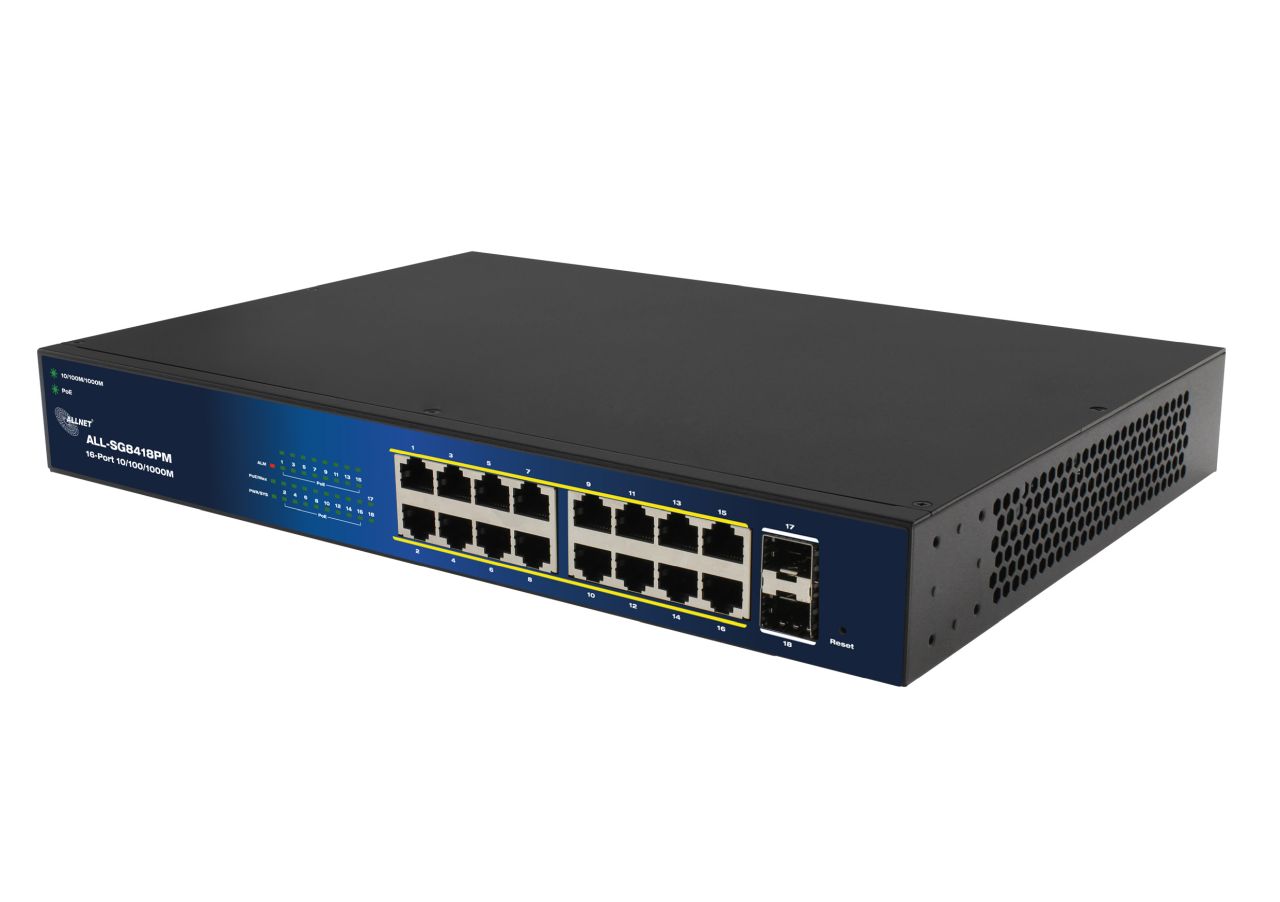

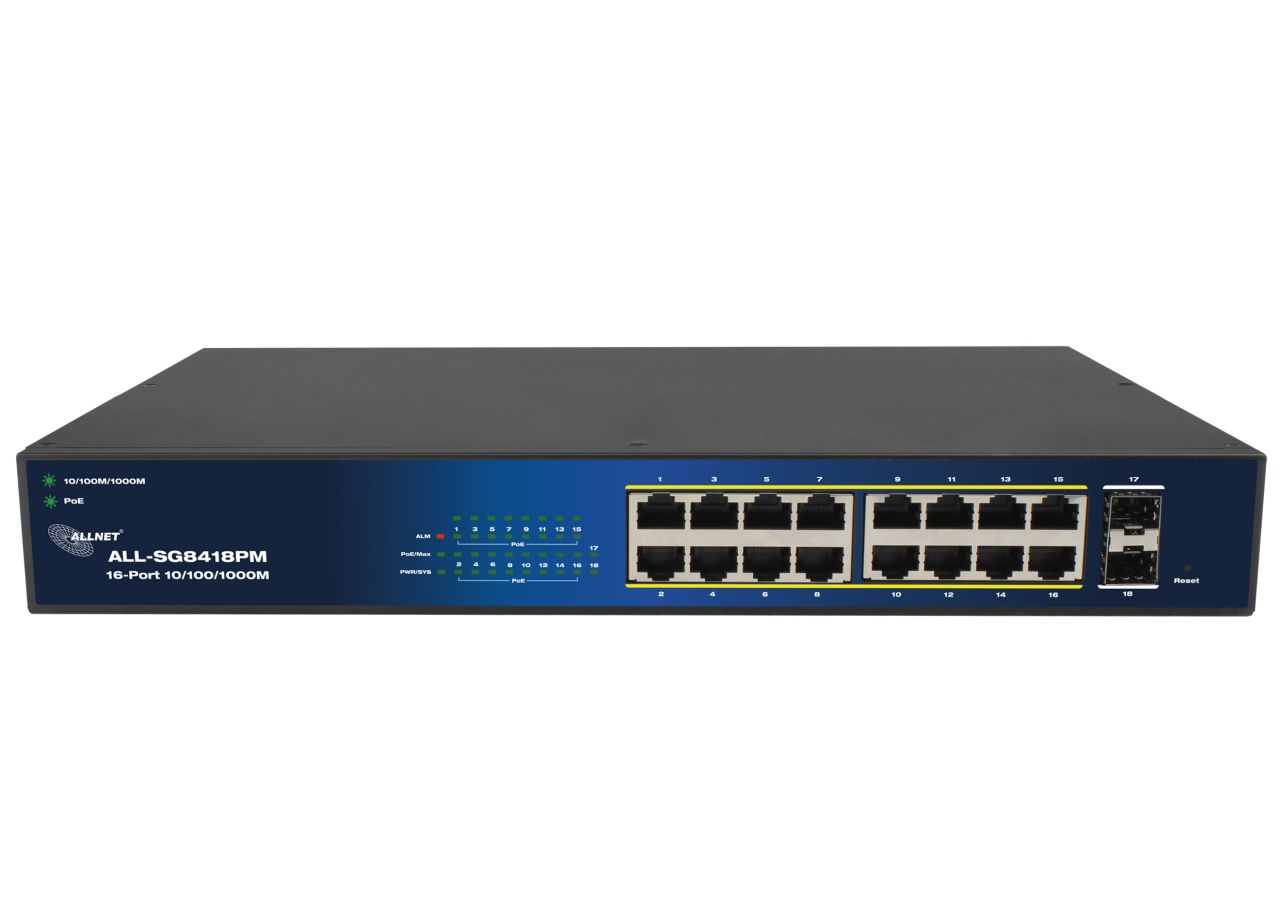

Front-Panel:
Technical Details:
Items
|
Specifications
|
Model No.
|
ALL-SG8418PM
|
Key
Components
|
RTL8382M+RTL8218D
IP808ARx2 PSE controller
DDR:1Gb
Flash IC:16MB
|
I/O ports
|
16x GbE ports, RJ45
2x SFP Giga Ports
Reset Button: reset to default setting, re-start system
|
PoE ports
|
Port# 1~ 16
IEEE802.3at, IEEE802.3af
|
LED Define
|
PWR/SYS: Green LED
- Off: power off or fail
- On: power on ALM: Red LED
- Off: Switch is normal condition
- On: Alarm for system failure because of overheat, wrong voltage. PoE Max.: Green LED
- Off: No over PoE max power Alert
- On: Over PoE max power Alert
Port LED
Link/ACT: Green
- Off: port disconnected or link fail
- Green on: 10/100/1000Mbps connected
- Blinking: sending or receiving data
PoE: Green LED
- Off: PoE power output off
- Green on: PoE power output on SFP Port:
- Off: disconnected or fail
- Green: 100/1000Mbps connected
- Blinking: data transmitting
|
HW feature
|
IEEE802.3 10BASE-T
IEEE802.3u 100BASE-TX
IEEE802.3ab 1000BASE-T
IEEE802.3x flow control & back pressure
IEEE802.3z 1000Base SX/LX
IEEE802.3az EEE
IEEE802.3at, IEEE802.3af
Switch Capacity: 36Gbps bi-direction
Forwarding Mode: Store and Forward
MAC address Table: 8K
Packet buffer size: 4.1M bit
Jumbo Frame: 9K bytes
|
Power Input
|
Internal power supply
Input: 100-240V AC
Output: 280W
E-cap life time >3 years @ 40?
|
PoE power pin-out
|
Alternative A (Pin 1,2/3,6)
|
PoE Output power capacity
|
Maximum output :30W per each port
- Compliant with IEEE802.3af/at standard, Following IEEE802.3at/at to support PoE or PoE+
- Automatically discover the connection of PD device and immediately sends power to it
- Auto disable port if the port current is over 700mA or short happens
- Priority can be configured and default setting is lower port NO. has high priority
- The maximum power used by power devices is defined by the following classification. When Port works in Auto Mode, the output port power limit will be associated with PD classification Value.
Follow the standard PSE pin-out standard of Alternative A (MAD-X) which is sending out power over number 1,2,3,6 pins of 8 wires of Ethernet CAT5 UTP cable
|
PoE Power Budget
|
240Watt
|
Reset button
|
Support reset to default configuration
|
Dimension
|
441mm(W)x190mm(D)x44mm(H)
|
FAN Design
|
N/A
|
Temperature
|
Operating: 0 ~ 40?
Storage : -40 ~ 70?
|
Humidity
|
Operating: 10% ~ 90% RH (non-condensing)
Storage: 5% ~ 90% RH (non-condensing)
|
Software Feature
Status
|
System
Information
|
|
|
Logging Message
|
|
|
Port
|
Statistics
|
|
Error Disabled
|
|
Bandwidth Utilization
|
|
Link Aggregation
|
|
|
MAC Address Table
|
8K
|
|
Network
|
IP Address
|
Static / Dynamic
|
|
System Time
|
SNTP / From Computer / Manual Time
|
|
Port
|
Port Setting
|
State / Speed / Duplex / Flow Control
|
|
Error Disabled
|
Recovery Interval
|
ACL / ARP Rate Limit / BPDU Guard / Broadcast
Flood / DHCP Rate Limit / Port Security / Self Loop
/ Unicast Flood / Unknown Multicast Flood
|
Link Aggregation
|
Group
|
|
Port Setting
|
State / Speed / Flow Control
|
LACP
|
|
EEE
|
|
|
Jumbo Frame
|
9K Byte
|
|
PoE
|
Global Setting
|
Schedule Status
|
|
Priority Setting
|
|
|
Power Limit
|
|
|
Power Show
|
|
|
VLAN
|
VLAN
|
Create VLAN
|
|
VLAN Configuration
|
|
Membership
|
|
Port Setting
|
|
Voice VLAN
|
Property
|
|
Voice OUI
|
|
Protocol VLAN
|
Protocol Group
|
|
Group Binding
|
|
MAC VLAN
|
MAC Group
|
|
Group Binding
|
|
Surveillance VLAN
|
Property
|
|
Surveillance OUI
|
|
GVRP
|
Property
|
|
Membership
|
|
Statistics
|
|
MAC Address
Table
|
Dynamic Address
|
Aging Time
|
|
Static Address
|
|
|
Filtering Address |
|
|
Spanning Tree
|
Property
|
State / Operation Mode /
Path Cost / BPDU
Handling
|
Operation Mode : STP/RSTP/MSTP
|
Port Setting
|
|
|
MST Instance
|
|
|
MST Port Setting
|
|
|
Statistics
|
|
|
Discovery
|
LLDP
|
Property
|
|
Port Setting
|
|
MED Network Policy
|
|
MED Port Setting
|
|
Packet View
|
|
Local Information
|
|
Neighbor
|
|
Statistics
|
|
Multicast
|
General
|
Property
|
Unknown Multicast Action / Multicast Forward Method
|
Group Address
|
|
Router Port
|
|
Forward All Table
|
|
Throttling
|
|
Filtering Profile
|
|
Filtering Binding
|
|
IGMP Snooping
|
Property
|
State / Version / Report Suppression
|
Querier
|
|
Statistics
|
|
MLD Snooping
|
Property
|
State / Version / Report Suppression
|
Statistics
|
|
MVR
|
Property
|
State / VLAN / Mode / Group Start / Group Count / Query Time
|
Port Setting
|
|
Group Address
|
|
Security
|
RADIUS
|
|
|
TACACS+
|
|
|
AAA
|
Method List
|
|
Login Authentication
|
Console / Telnet / SSH / HTTP / HTTPS
|
Management
Access
|
Management VLAN
|
|
Management Service
|
Telnet / SSH / HTTP / HTTPS / SNMP / Session Timeout
|
Management ACL
|
|
Management ACE
|
|
Authentication Manager
|
Property
|
|
Port Setting
|
|
MAC-Based Local Account
|
|
|
|
WEB-Based Local Account
|
|
Sessions
|
|
Port Security
|
|
|
Protected Port
|
|
|
Storm Control
|
|
State / Broadcast / Unknown Multicast / Unknown Unicast / Action (Drop / Shutdown)
|
DoS
|
Property
|
|
Port Setting
|
|
Dynamic ARP
Inspection
|
Property
|
|
Statistics
|
|
DHCP Snooping
|
Property
|
|
Statistics
|
|
Option82 Property
|
|
Option82 Circuit ID
|
|
IP Source Guard
|
Port Setting
|
|
IMPV Binding
|
|
Save Database
|
|
ACL
|
MAC ACL
|
|
|
MAC ACE
|
|
|
IPv4 ACL
|
|
|
IPv4 ACE
|
|
|
IPv6 ACL
|
|
|
IPv6 ACE
|
|
|
ACL Binding
|
|
|
QoS
|
General
|
Property
|
CoS / DSCP / CoS-DSCP / IP Precedence
|
Queue Scheduling
|
Strict Priority / WRR
|
CoS Mapping
|
|
DSCP Mapping
|
|
IP Precedence Mapping
|
|
Rate Limit
|
Ingress / Egress Port
|
|
Egress Queue
|
|
Diagnostics
|
Logging
|
Property
|
Console / RAM / Flash
|
Remote Server
|
|
Mirroring
|
|
|
Ping
|
|
|
Traceroute
|
|
|
Copper Test
|
|
|
Fiber Module
|
|
|
UDLD
|
Property
|
Message Time
|
Neighbor
|
|
Management
|
User Account
|
|
|
Firmware
|
Upgrade / Backup
|
Action (Upgrade / Backup) / Method (TFTP / HTTP)
|
Active Image
|
Active Image / Backup Image
|
Configuration
|
Upgrade / Backup
|
Action (Upgrade / Backup) / Method (TFTP / HTTP)
|
|
|
Save Configuration
|
Source File / Destination File, Restore Factory Default
|
SNMP
|
View
|
|
Group
|
|
Community
|
|
User
|
|
Engine ID
|
|
Trap Event
|
Authentication Failure / Link UP_Down / Cold Start / Warm Start
|
Notification
|
|
RMON
|
Statistics
|
|
|
History
|
|
|
Event
|
|
|
Alarm
|
|
|
|
