A destacar:- Power Booster de alto rendimiento -- 12V/24V/48VDC

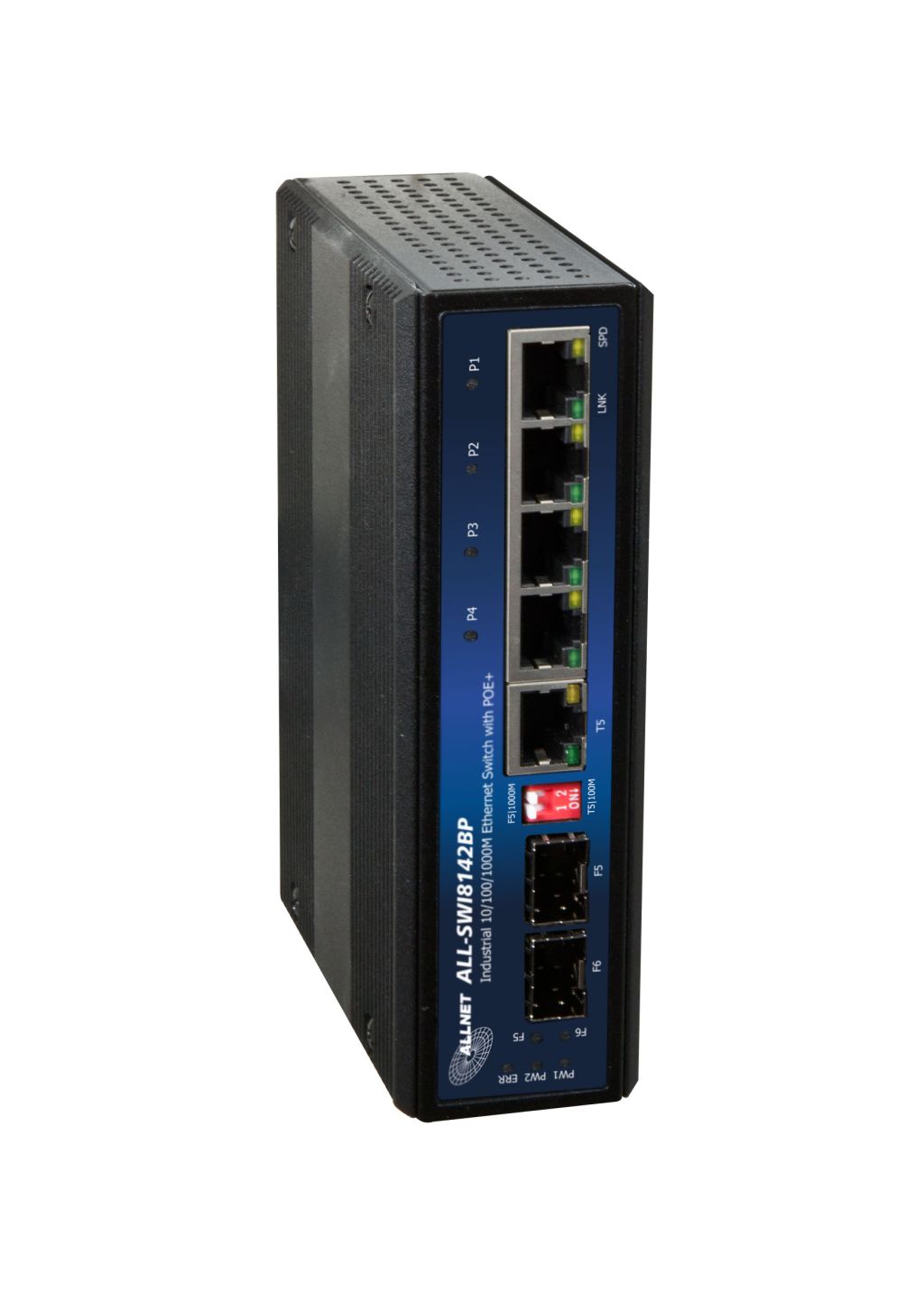

- Inyector Gigabit PoE industrial robusto de 6 puertos
- 4x10/100/1000M TX PSE (802.3af/at POE+)
- 2 slots SFP 100/1000M para módulos MiniGbic
- Amplificador de tensión de 12/24/48VDC hasta 55VDC
- Rango de tensión de entrada 12-56VDC
- Temperatura de funcionamiento ampliada: de -40°C a +75°C
Introducción

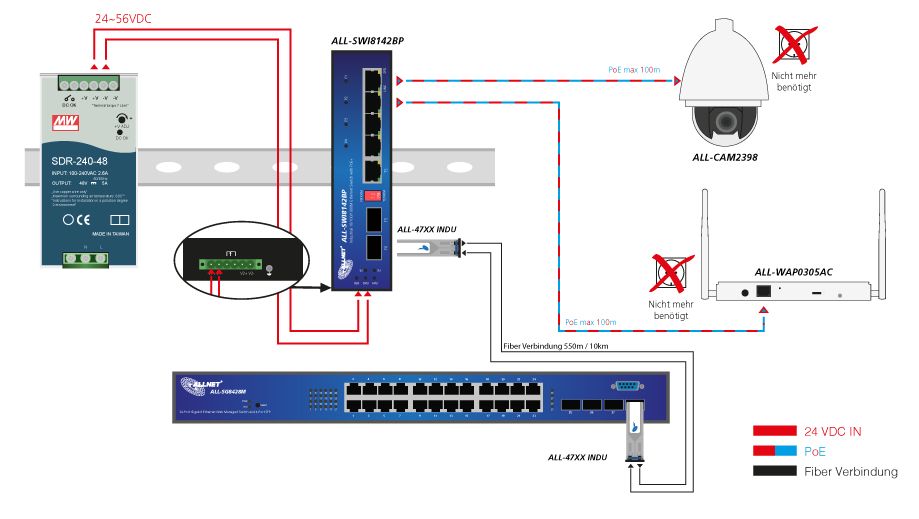

El Switch industrial POE+ de 6 puertos de alta potencia está equipado con nuestra tecnología ColdDesign de alta eficiencia que permite que el bajo voltaje de entrada, como 12/24/48VDC, se incremente hasta 55VDC para cumplir con los requisitos de IEEE802.3at. La tecnología ColdDesign no sólo aumentará la tensión de entrada, sino que también reducirá el problema del calor excesivo al mínimo. Acepta un voltaje de entrada tan bajo como 12VDC, para aumentar hasta 55VDC. Y también está equipado con 2 puertos SFP que pueden ser utilizados como redundancia, en cascada a sus otros dispositivos para ampliar su aplicación de red. Ha sido probado rigurosamente para sus aplicaciones de seguridad, transporte y telecomunicaciones.
Características técnicas:
IEEE Standard
|
IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3ab 1000Base-T Gigabit Ethernet
IEEE 802.3z 1000Base-X Gigabit Ethernet
IEEE802.3x Flow Control and Back Pressure,
IEEE802.3af for POE
IEEE802.3at for POE+
|
Switch Architecture
|
Back-plane (Switching Fabric): 12Gbps
|
Data Processing
|
Store and Forward
|
Flow Control:
|
IEEE 802.3x Flow Control and Back Pressure
|
Jumbo Frame
|
9KB
|
MAC address Table Size
|
1K
|
Packet Buffer Size
|
1M
|
Network Connector :
|
5xRJ-45 10/100/1000BaseT(X) auto negotiation,
4 Giga POE+ 802.3at/af 30W PSE per port
Auto MDI/MDI-X function, Full/Half duplex
2 x SFP 100/1000M BaseX
|
Network Cable
|
UTP/STP Cat.5e or above Cable
|
EIA/TIA-568 10-ohm (100m)
|
Fiber Cable (Multi-mode):50/125um,62.5/125um
Fiber Cable (Single-mode): 9/125um
|
Protocol
|
CSMA/CD
|
LED
|
PW1(Power 1) Green,
PW2(Power 2) Green,
ERR (Fault) Amber,
|
TX/RJ-45 port:
LNK (Link/Active) Green,
SPD(Speed) 10/100(OFF) ,1000 (Green)
|
SFP Fiber Per port:
Link (Green)
Active Flash
|
DIP Switch
|
DIP 1: OFF: Port 5 SFP ON (DEFAULT)
ON: Port 5 SFP OFF
DIP 2: OFF: SFP 1000M (DEFAULT)
ON: SFP 100M
|
Reserve polarity protection
|
Present
|
Overload current protection
|
Present
|
Power Supply
|
Redundant Dual DC 12V-56V Power Input
|
Power Consumption
|
5.76W@12/24/48 VDC full load, Without POE
|
Alarm Relay Contact
|
Relay outputs with current carrying capacity of 1 A @24VDC,
Relay in short circuit mode when 2 powers are connected. in open circuit mode when only one power supply is connected
|
POE power
|
POE power per port 30watts. Maximum 36Watts per port at 12/24/48VDC input
Maximum total power 126Watts at 24VDC and 48VDC power input.
Maximum total power 65W at 12VDC power input
|
Removable Terminal Block
|
Provide 2 Redundant power, Alarm relay contact ,6 Pin
Wire range: 0.34mm^2 to 2.5mm^2
Solid wire (AWG):12-24/14-22
Stranded wire(AWG): 12-24/14-22
Torque:5lb-In/0.5Nm/0.56Nm
Wire Strip length: 7-8mm
|
Operating Temperature
|
-40° ~ 75° fully tested.
|
Operating Humidity
|
5% to 95% (Non-condensing)
|
Storage Temperature
|
-40° ~ 85° C
|
MTBF (mean time between failure)
|
510,304 hrs ( MIL-HDBK-217F) at 25°C
|
Housing
|
Rugged Metal, IP30 Protection
|
Case Dimension (L x W x D)
|
142mmx43mmx105mm (LxWxD)
|
Installation mounting
|
DIN Rail mounting and Wall Mounting
|
Certifications:
|
EN55022/24
|
ITE equipment
|
EN50155
|
Railways Applications Electronic Equipment used on Rolling Stock
|
EN55011
|
Industrial, Scientific and Medical (ISM) equipment
|
EN50121-3-2
|
Railway Applications ? Electromagnetic Compatibility ? Part 3-2 Rolling Stock - Apparatus
|
EN50121-4
|
Railway Applications ? Electromagnetic Compatibility ? Part4 Emissions and Immunity of the Signaling and Telecommunications Apparatus
|
Safety
|
IEC EN60950-1
|
EMC/EMS
|
CE, FCC, VCCI
|
EMI
|
FCC Part 15 Subpart B Class A,
CE EN 55022 Class A
|
EN 50155 / EN 60068-2-6
|
Vibration
|
EN 50155 / EN 60068-2-27
|
Shock
|
EN 50155 / EN 60068-2-32
|
Free Fall
|
|
