ALLNET 4duino - Arduino™ Sensoren

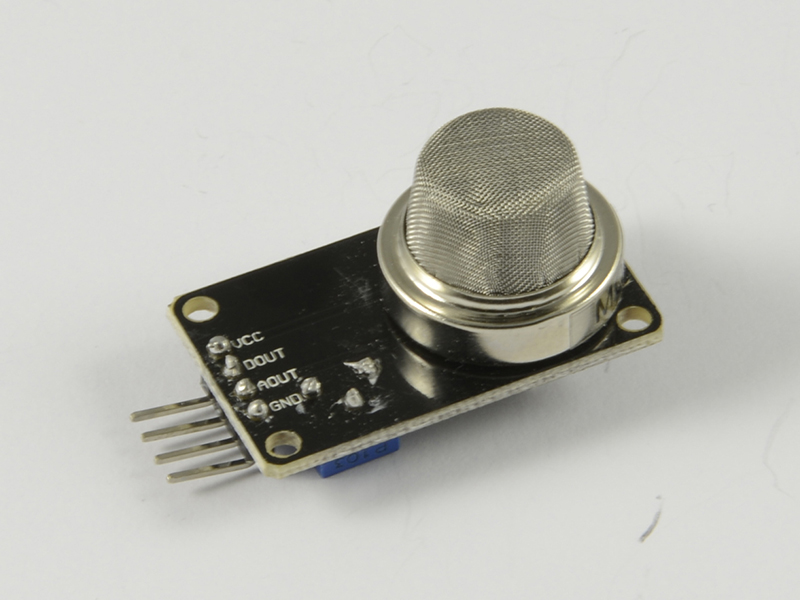

4duino Sensitive for Natural gas, LPG. MQ-5

B-4 (C10)

Beschreibung:

Type Analog

Detecting Type Smoke Gas LPG Butane Hydrogen Gas

Rated Voltage DC 5V

Detecting Range 300-10000ppm

Pin Quantity 4

Pin Spacing 1.8mm/ 0.07"

Pin Definition

AO-analog Output

DO-Digital Output

GND- Ground

VCC-Voltage To Current Converter

Total Size 35 x 20 x 21mm/ 1.4" x 0.79" x 0.83" (L*W*H)

Material Plastic, Electronic Part

Net Weight 7g

Features:

Analog type, DC 5V rated voltage,300-10000ppm Detecting Range, high sensitivity to Combustible gas in wide range.

The gas sensor are suitable for detecting Ammonia, Aromatic Compound, Sulfide concentrations in the air.It is able to give alarms when those gas leaks. You can adjust the sensitivity with the potentiometer.

Package:

1 x MQ-6 Gas Sensor Module
