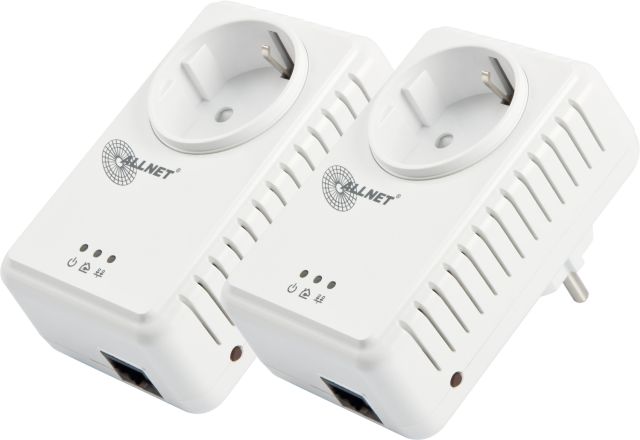

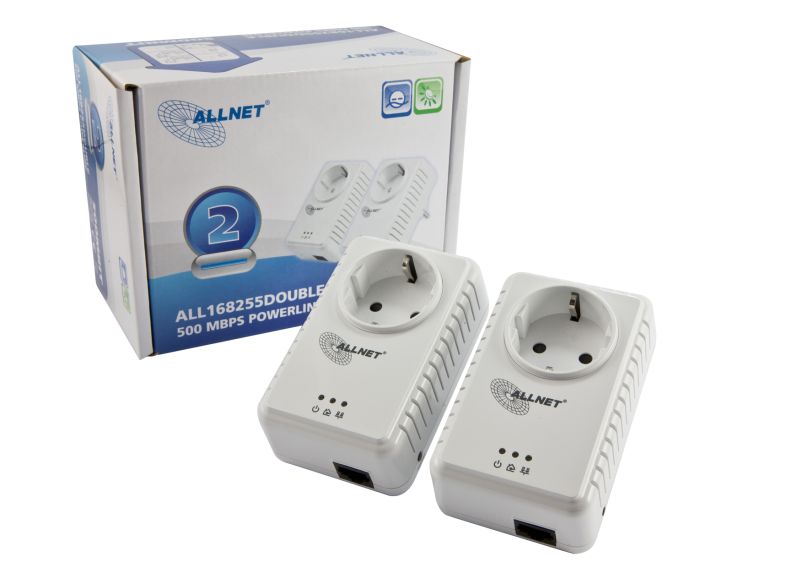

ALLNET ALL168255 / 500Mbit MINI HomePlug AV Powerline Adapter with Passtrough power outlet
The ALLNET ALL168255 HomePlugAV Passthrough Powerline adapter with 500 Mbit / s bandwidth allows a very easily networking for computers and other IP-enabled devices via the existing power supply system (230V).
Compared to its predecessor ALL168555 the size shrunked significantly.
The ALL168255 has an additionally integrated power outlet. The built-in noise filter reduces this noise and interference to a minimum, which are generated by other electrical devices. This results in a significantly improved signal quality and increased bandwidths and ranges against Powerline adapters without Filter.
With up to 500Mbit / s bandwidth the ALL168255 is prepared for all modern applications such as IPTV, HD video streaming, VoIP, video surveillance, and more. The true plug / play installation ensures easy handling. Just plug in and the connection is up. Secure connections are guaranteed by the 128 bit AES encryption provides.
A very low power consumption of less than 2 watts in operation and less than 0.5 watts in standby meets the requirements of a modern Green IT product.
Items | Description |
PHY Rate | 500Mbps |
Effect Data Rate | TCP: Up to 95 Mbps effective throughput UDP: Up to 95 Mbps effective throughput |
Frequency Band | 2~68 MHz (With Mask) |
Access Methods | priority-based CSMA/CA channel access schemes maximize efficiency and throughput |
Qos | l – Integrated Quality of Service (QoS) Enhancements l – Hardware Packet Classifiers for ToS, CoS and IP Port Number l – Supports IGMP managed multicast sessions |
Modulation | OFDM (QAM 8/16/64/256/1024/4096, QPSK, BPSK, ROBO) |
Standards | IEEE 802.3, HomePlug AV Protocol Compliance with HomePlug 1.0 coexistence capability |
OS | Microsoft Windows® 2000, XP, Vista ,Windows 7 (for utility-program only) |
Nodes | Up to 8 total devices |
IGMP | IGMP supports IGMP managed multicast sessions |
Encryption | 128-bit AES Link Encryption with key management |
Push button | NID/RST button |
Port | One 100 Mpbs Ethernet Port |
Distance | AC Wire : 200 meters distance max. |
LEDs | PWR (Green) PLC (Green/Orange/Red, throughput indicator) ETH (Green) |
Environment | Temperature | Operating : 0~40 ℃ |
Storage : -20~60 ℃ |
Relative Humidity | Operating : 10~85% Non-Condensing |
Storage : 5~90% Non-Condensing |
Power Source | 100 ~ 240 VAC 50/60Hz |
Power Consumption | ca. 2W (Normal mode), less than 0.5W (Standby mode) |
Certification | CE |
