The next ALLNET Powerline generation

The new SmartLink Technology allows faster and more reliable data transfer and boosts the overall network performance for powerline user. Up to now, powerline has used only two of the possible three lines for communication. SmartLink for the first time uses ground next to phase and neutral for data transfer via powerline.

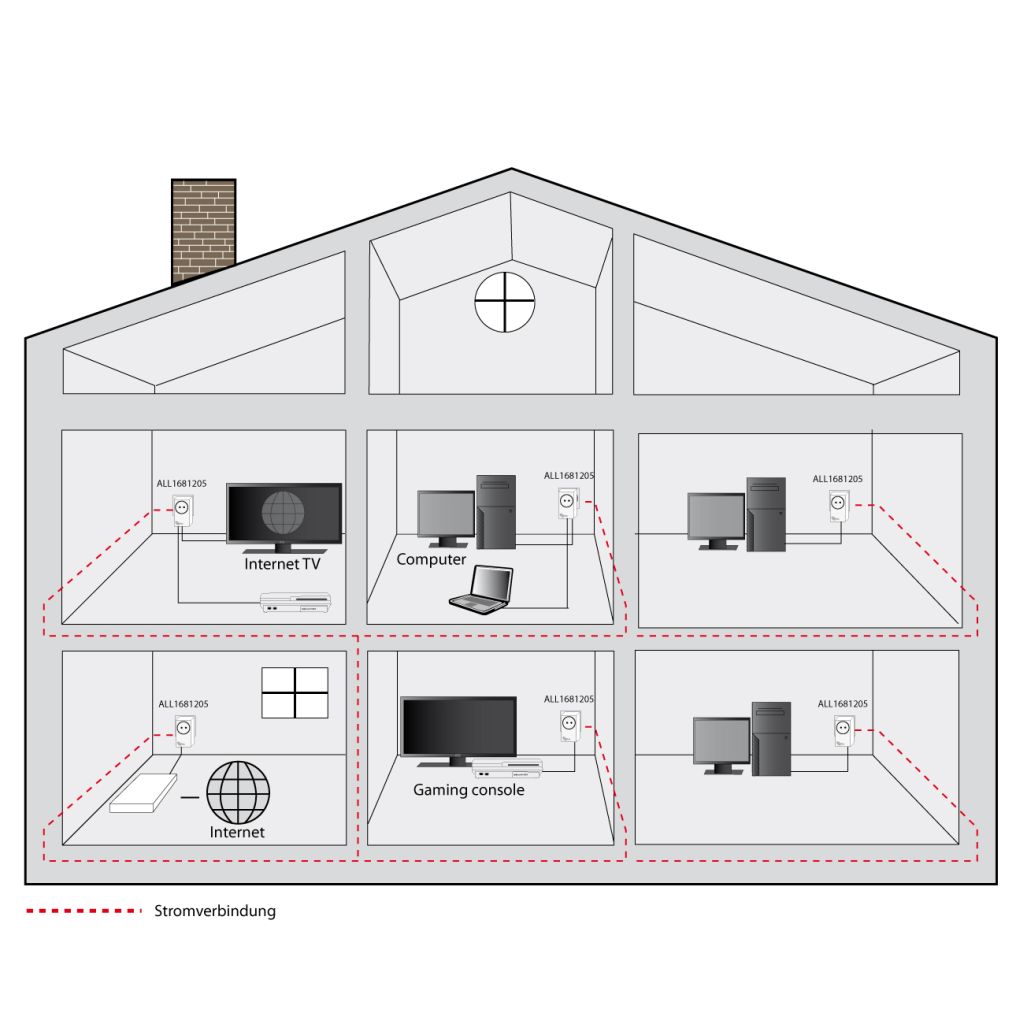

This allows even to supply remote areas, like cellar or attic and expands the speed advantages to every room in the house.

Highlights

  • Powerful internet connection with significantly higher range
  • Uses ground next to phase an neutral
  • Optimized signal interference on powerline for better transmission
  • Automatic selection of best communications method

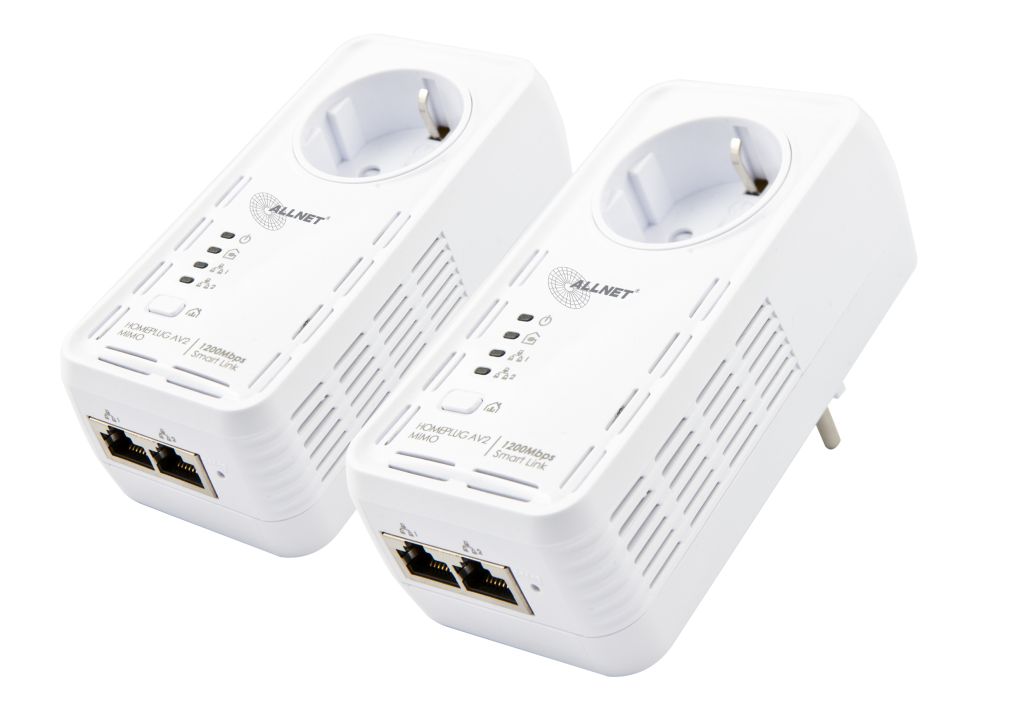

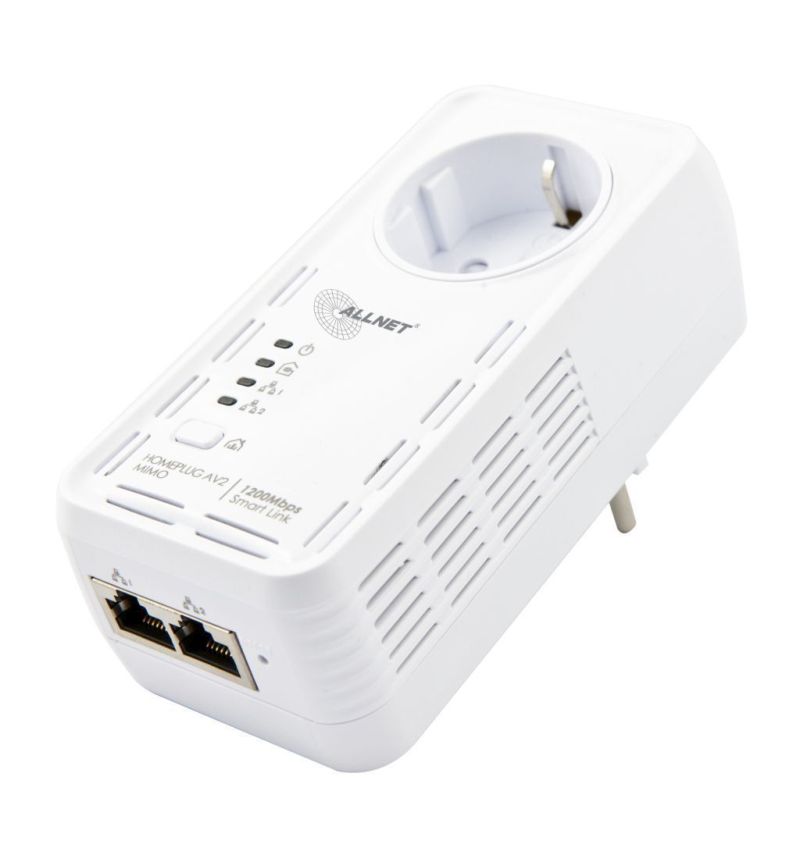

1200Mbit Powerline Adapter SmartLink



Art. nr. 118597

> Zum Online Shop

Highlights:

    • Up to 1200Mbps powerline data transmission rate

    • Supports MIMO

    • Compatible with other HomePlug AV technologies

    • Secure communication and protect your data by clicking one button

    • 2 gigabit ethernet ports

    • easy installation





    The ALL1681205 adapter is the first ALLNET Powerline adapter on the market with HomePlug AV2 standard with Smartlink 1200Mbps and MIMO support.

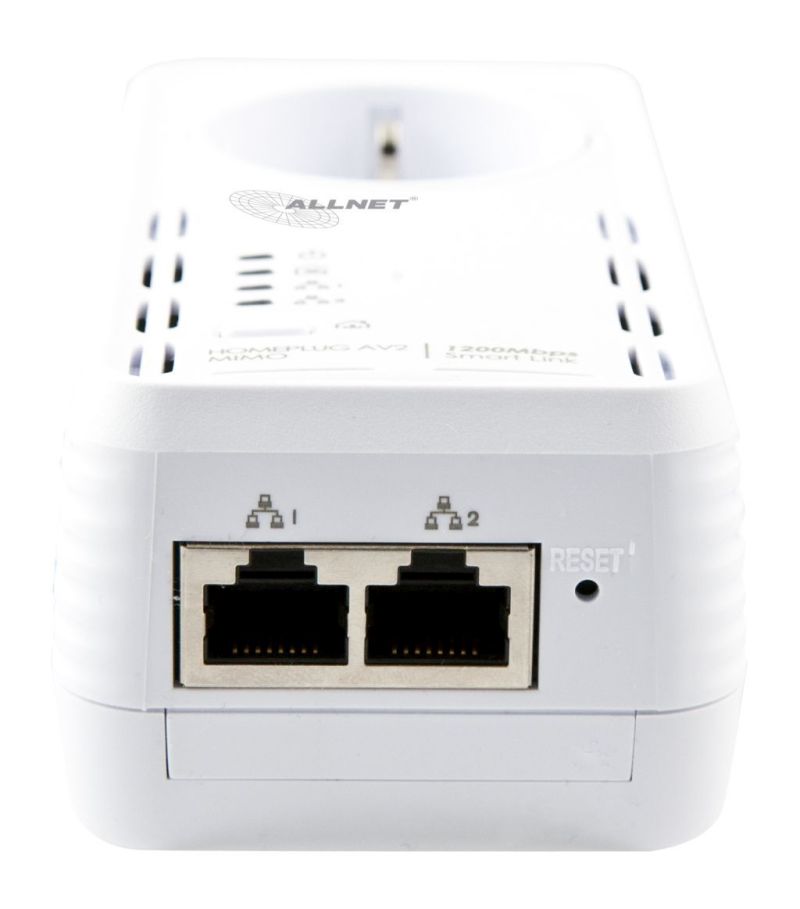

    The ALLNET ALL 1681205 uses the latest Qualcomm Atheros QCA 7500 / QCA 8334 chipset. It has 2x gigabit ethernet RJ45 ports and it´s compliant to the powerline standards IEEE1901 Homeplug AV and greenPHY. This allows easy use with existing Powerline devices from other manufacturers.



    High data rates and quality of service (QoS) allow the utilisation of HD multimedia applications. Digital high-speed multimedia home networking throughout the hous, including IP-TV sevices, einschließlich IPTV-Dienste, simultaneous HD video and

    audio distribution, voice over IP calls, online-gaming.

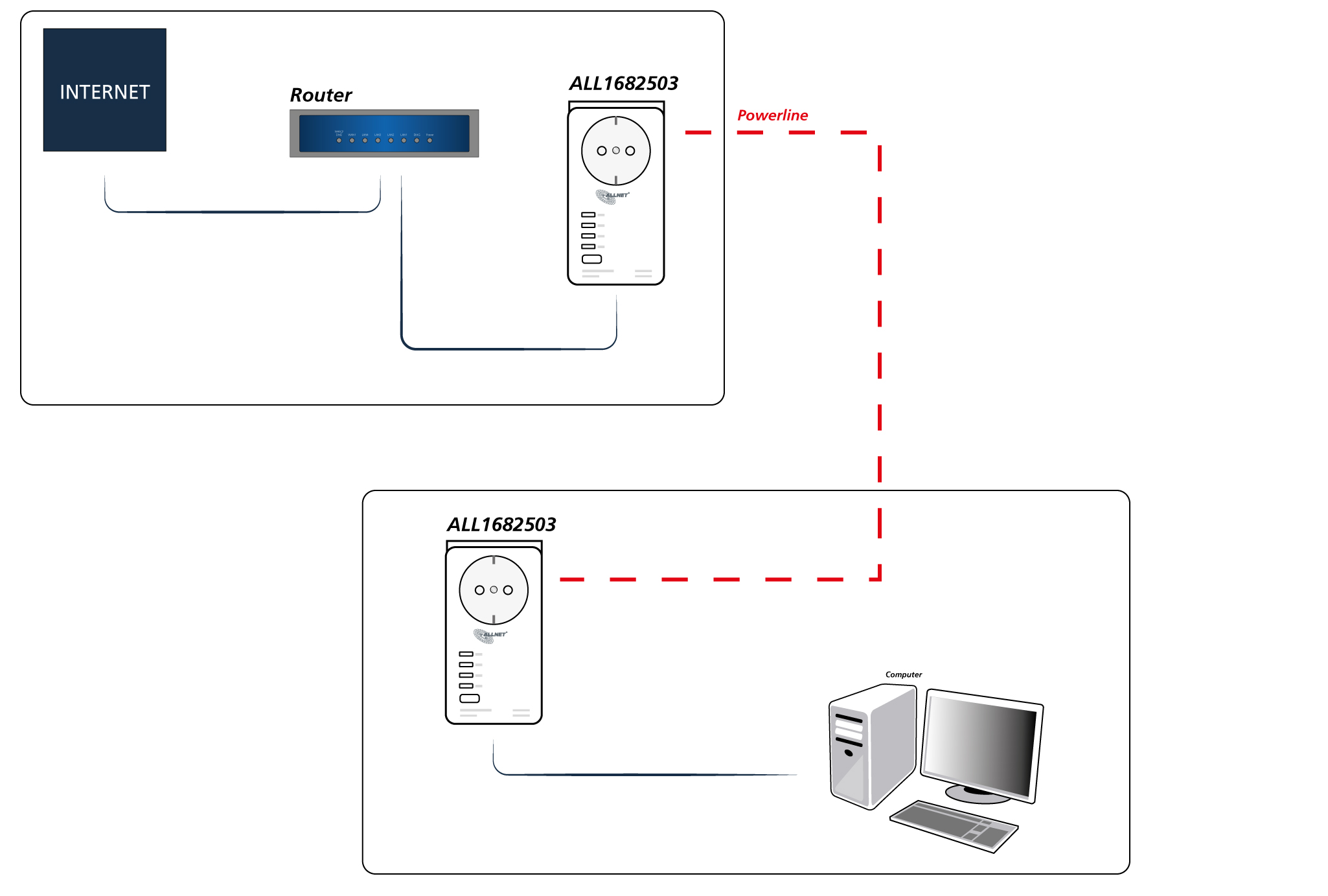

    The ALL1681205 offers a simple plug-and-play networking by pushing a button, a confi guration via software is not required.



    The Network Management Key (NMK) with his 128-bit AES hardware-encoding ensures safe, authenticated acces to the logical network and protects the network from hackers.



    The new HomePlug AV2 standard enables high effi cient data transmission on the electrical cable with technologies like Effi cient Notching & High Effi ciency PHY Protocoll Data Unit (PPDU) Structure.



    Technische Daten:

    Element

    Spezifikation

    Chipset:

    Qualcomm QCA7500 + QCA8334

    Standards:

    • IEEE 1901, IEEE 1905.1 and HomePlug AV                Compliant

    • HomePlug AV2 Compliant

    • AV2 30MHz and 67MHz MIMO profi les

    • AV2 30MHz and 67MHz SISO profi les

    • Power Save mode

    • Co- existence with HomePlug 1.0/Turbo Nodes

    • Compliant to ErP 2013 directive

    • IEEE 802.3 10/100/1000 Ethernet(1200Mbps)

    Brutto data rate Powerline:

    up to 1200Mbps

    Frequency band:

    2MHz to 67,5 MHz

    Access-Methode Powerline:

    Priority-based CSMA/CA channel access

    Quality of Service:

    • Priority-based CSMA/CA channel access schemes maximize effi ciency and throughput
    • Integrated Quality of Service (QoS) Enhancements
    • Supports IGMP managed multicast session

    Modulation:

    OFDM 4096/1024/256/64/16/8 QAM, QPSK, BPSK, ROBO, und Mini-ROBO Modulation Schema

    Powerline interface:

    Type F earthing contact socket /connector (DE), Type C/E (FR)

    Network interface:

    2x RJ45 10/100/1000Mbit

    IGMP:

    • Support IGMP managed multicast sessions
    • IGMP snooping with multicast to multiple unicast support
    • IGMP/MLD Adressfiltering

    Nodes/Clients:

    max. 15 devices

    Security support:

    128bit AES Link encryption with key management

    (aktivated via Simple Connect button)

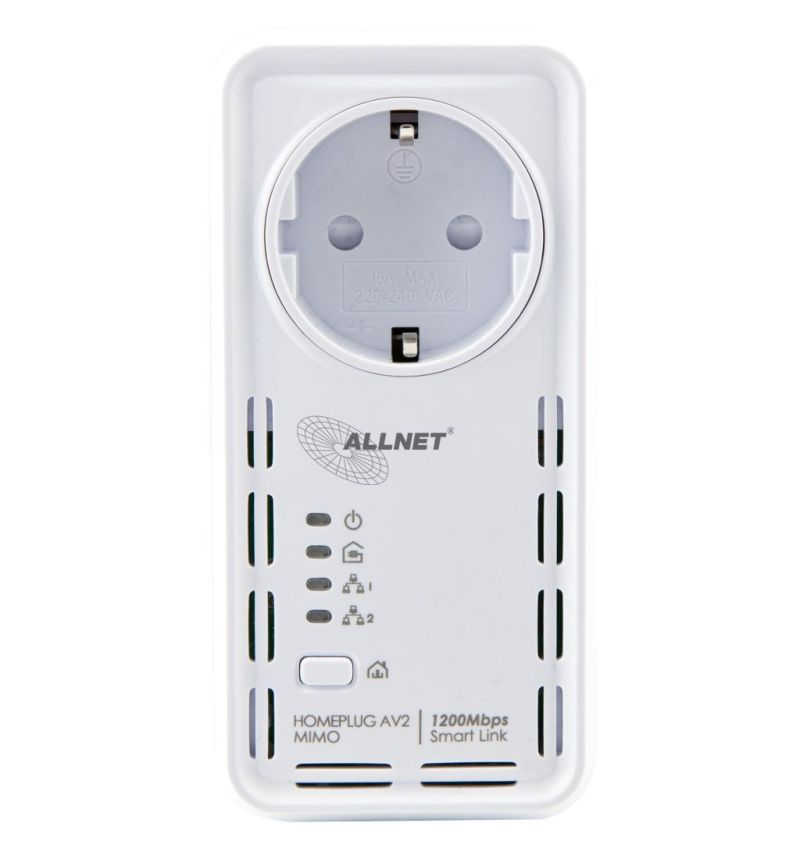

    LED indicators:

    Power LED
    PowerLine Link/ACT Status LED
    2x Ethernet Link/ACT Status LED

    Power supply:

    Type F earthing contact socket /connector (DE), Type C/E (FR) Switch mode 85VAC to 265VAC

    Operating systems:

    all TCP/IP operating systems

    Operating systems for

    configurationsoftware:



    Windows® XP32bit, Windows® Vista32/64bit, Windows®7 32/64bit

    Housing:

    synthetic housing

    Environment:

    Temperature operating: 0 ~ 40 °C

    Humidity operating: 30% ~ 80% (non condensing)

    Temperature storage: -25 ~ 70 °C

    Humidity storage: 30% ~ 95% (non condensing)

    Marks:

    CE

    Dimensions:

    120 x 58 x 40mm

    Weight:

    205g (only device)

    Package content:

    2x ALLNET ALL1681205
    1x RJ45 patch cable 1m
    1x CD-ROM with manual & software
