LT PoE 90W
With Power over Ethernet (PoE) it is possible to supply ending devices via network cable not only with data but also with power. This means that you do not only save a power supply, it is now possible to install the ending devices at places with no power sockets. PoE holds a big savings potential.
The ALLNET LT PoE products support the IEEE802.3af standard with a performance of 15.4 watts, the IEEE802.3at standard with 30 watts and the LT PoE standard with 90 watts performance.
The ALLNET product series recognizes active PoE end devices automatically and supplies them wit PoE depending on the capacity requirement.
Due to the combination of switch/injector, repeater and splitter it is possible to enable distances of more than 500 meters. Not PoE capable devices can still be supplied with up to 25V power after this distance. With the CAT6 cables it is therefore achievable to transport performances up to 90 watts via PoE.
Find more informations in our LT PoE product catalogue.
http://www.allnet.de/fileadmin/marketing/kataloge/2015/lt-poe-en.pdf
ALLNET LT PoE 90W product portfolio
4-port 10/100/1000Mbit/s gigabit ethernet Switch with 1x PoE input (LT PoE 90W) and 4x PoE output (LT-PoE 90W / IEEE802.3at or IEEE802.3af)Highlights:

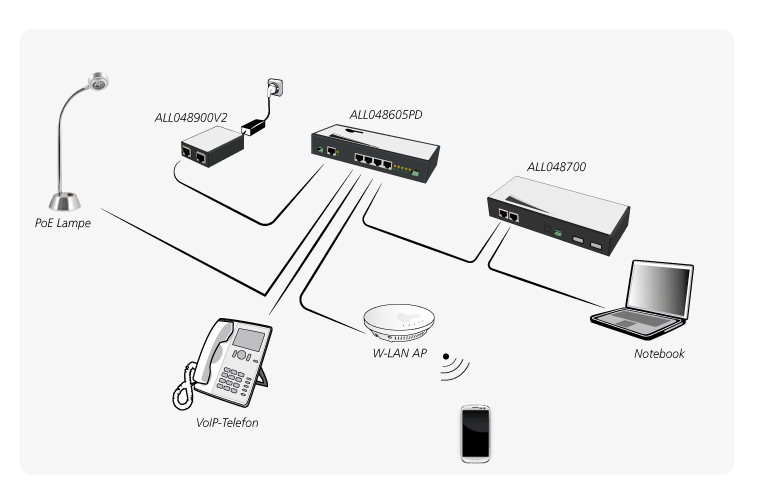

completely independent of sockets and power supplies The ALLNET ALL048605PD switch can be powered by an external power supply or PoE with the required energy as well. In addition, the switch is also able, to supply up to four PoE enabled devices over the network cable simultaneously with data and power! Cable length max. is 100 meters in both directions. This allows for a distance up to 200 meters, thus guaranteeing maximum flexibility in the supply of the devices. This allows an outstandig flexibility in the choice of installation of your IP cameras or wireless access points as well.
3 voltage inputs for optimal supply The power supply of this device can be done by three different ways: 1. PD port via another PoE device or Injector (max. 90W). 2. Variable DC power input, with up to 90W (10s) and 60W output with permanent 12V input. 3. Fixed DC input with 56V and up to 500W.
Technical details:
