MISCELLANEOUS MEDIA FOR A POWERFUL NETWORK
The process of interlinking households, institutions or enterprises, steadily gets interrupted by the problem of connecting various kinds of devices with different ports and transmission media, which have to be integrated into a common network infrastructure. To guarantee a trouble-free cooperation of the devices in the network, media converters go into action. Hence, the transmission over various media is possible and the whole network infrastructure profits. The data input comes over one medium, for example via fiber optics. The media converter eventually alters the transmission medium, so that the data now can be out-put over e.g. the copper cable.
ADVANTAGES OF MEDIA CONVERTERS
The conversion of the medium isn't just beneficial due to the interaction between different devices. The change of the transmission cable enables also the expansion of reach and speed of the data transfer. This goes hand in hand with the saving of costs, since the fiber cables bypass large distances easily. So, no further devices needs to be integrated into your network.
ALLNET converter and transceiver

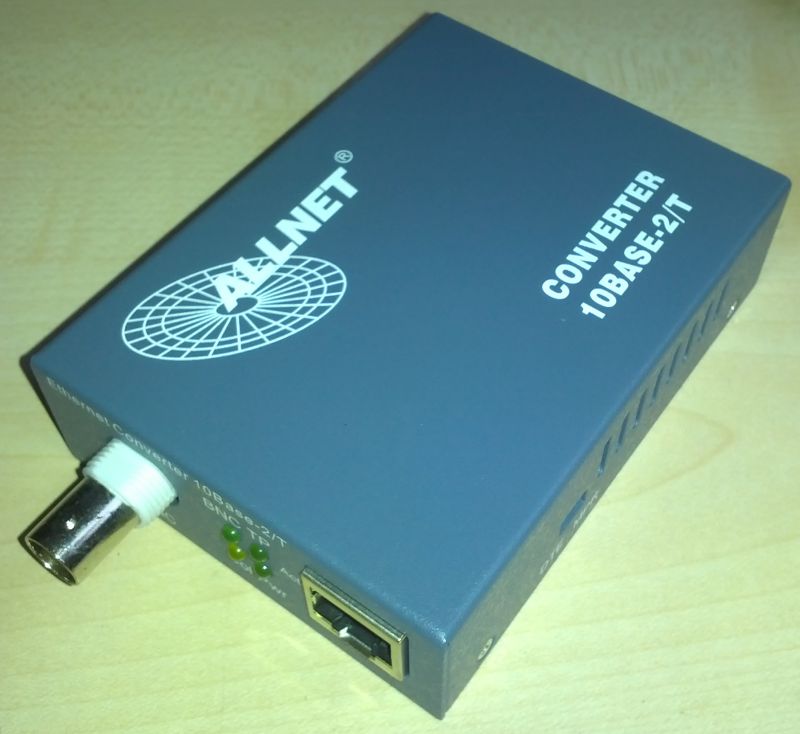

ALLNET Medya dönüştürücü 10BaseT/10Base2 BNC - ALL0500 Ürün №: 1407 10Base2 Coax hatlarını (BNC-bağlantısı) Twisted Pair bakır hatlara gerçekleştirmek üzere (RJ45)medya dönüştürücü · LAN-Standart Ethernet · LAN-bağlantısı 1 RJ45 10BaseT · LAN-bağlantısı 2 BNC 10Base2

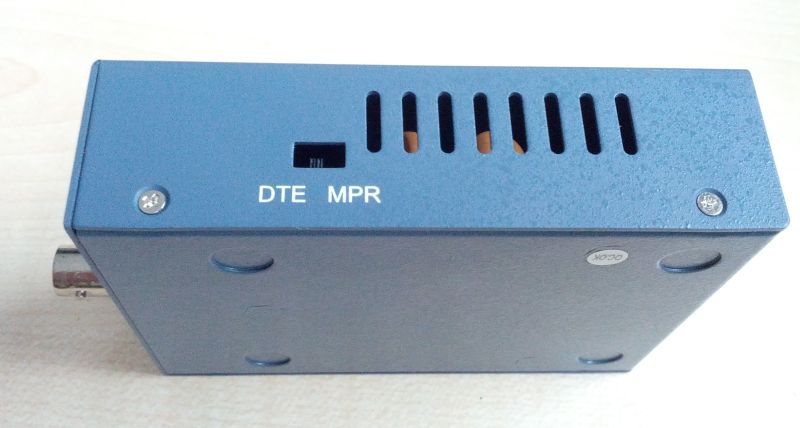

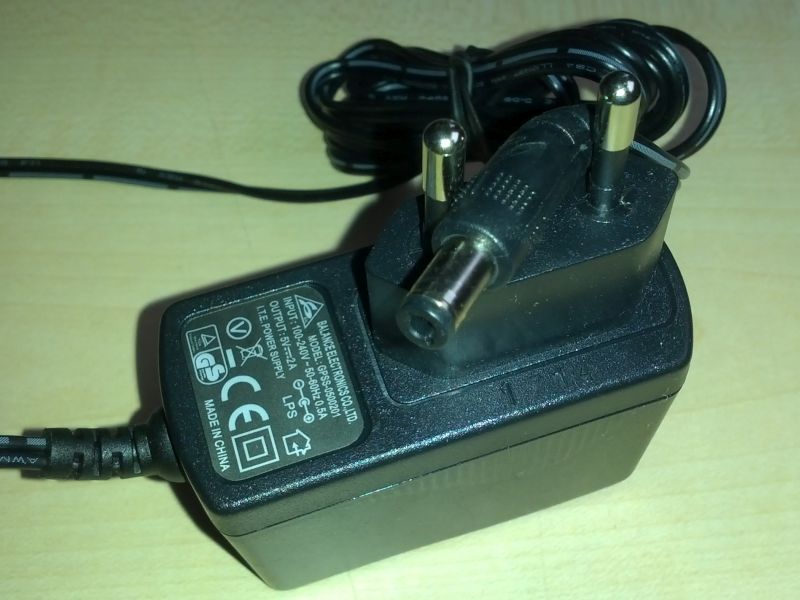

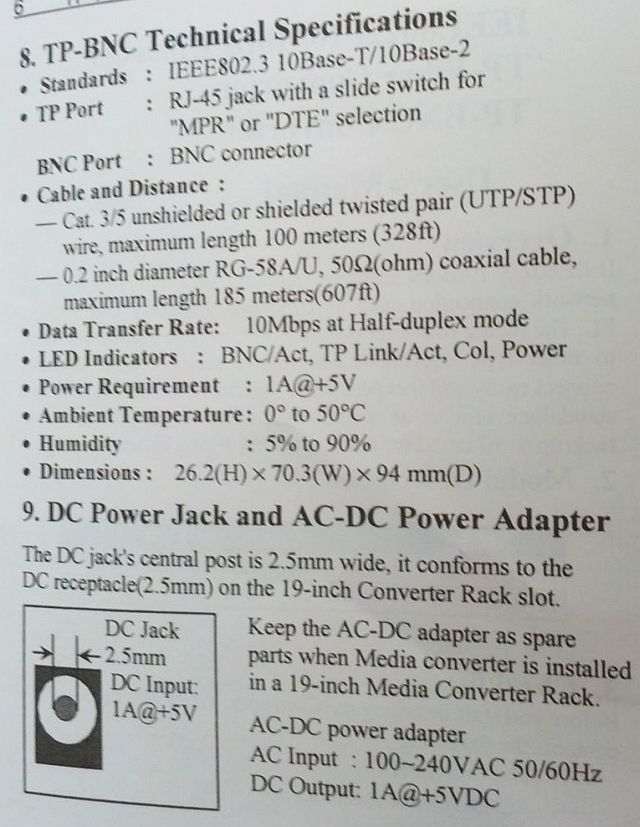

Teknik bilgiler: · LED göstergeleri: BNC aktivite; TP Link/Aktivite; çakışma; güç · Ölçüler (en x yükseklik x derinlik): 70.3 x 26.2 x 94 mm · Elektrik sarfiyatı: 1A (5 VDC) · IEEE 802.3 10BaseT ve 10Base2‘ yi destekler · TP port için MPR/DTE-çevirici şalter · Onay işareti: CE B sınıfı; FCC B sınıfı; VCCI-B
Back |
ALLNET Medya dönüştürücü 10BaseT/10Base2 BNC - ALL0500 Ürün №: 1407 10Base2 Coax hatlarını (BNC-bağlantısı) Twisted Pair bakır hatlara gerçekleştirmek üzere (RJ45)medya dönüştürücü · LAN-Standart Ethernet · LAN-bağlantısı 1 RJ45 10BaseT · LAN-bağlantısı 2 BNC 10Base2
Teknik bilgiler: · LED göstergeleri: BNC aktivite; TP Link/Aktivite; çakışma; güç · Ölçüler (en x yükseklik x derinlik): 70.3 x 26.2 x 94 mm · Elektrik sarfiyatı: 1A (5 VDC) · IEEE 802.3 10BaseT ve 10Base2‘ yi destekler · TP port için MPR/DTE-çevirici şalter · Onay işareti: CE B sınıfı; FCC B sınıfı; VCCI-B
