ALLNET PoE Injector Industrial Gigabit / PoE BT (15.4W/30W/90W) / DIN / metal housing / "ALL-PI2014-I-BT90"

pdf-download 219111-1  Art. nr. 219111

> Zum Online Shop

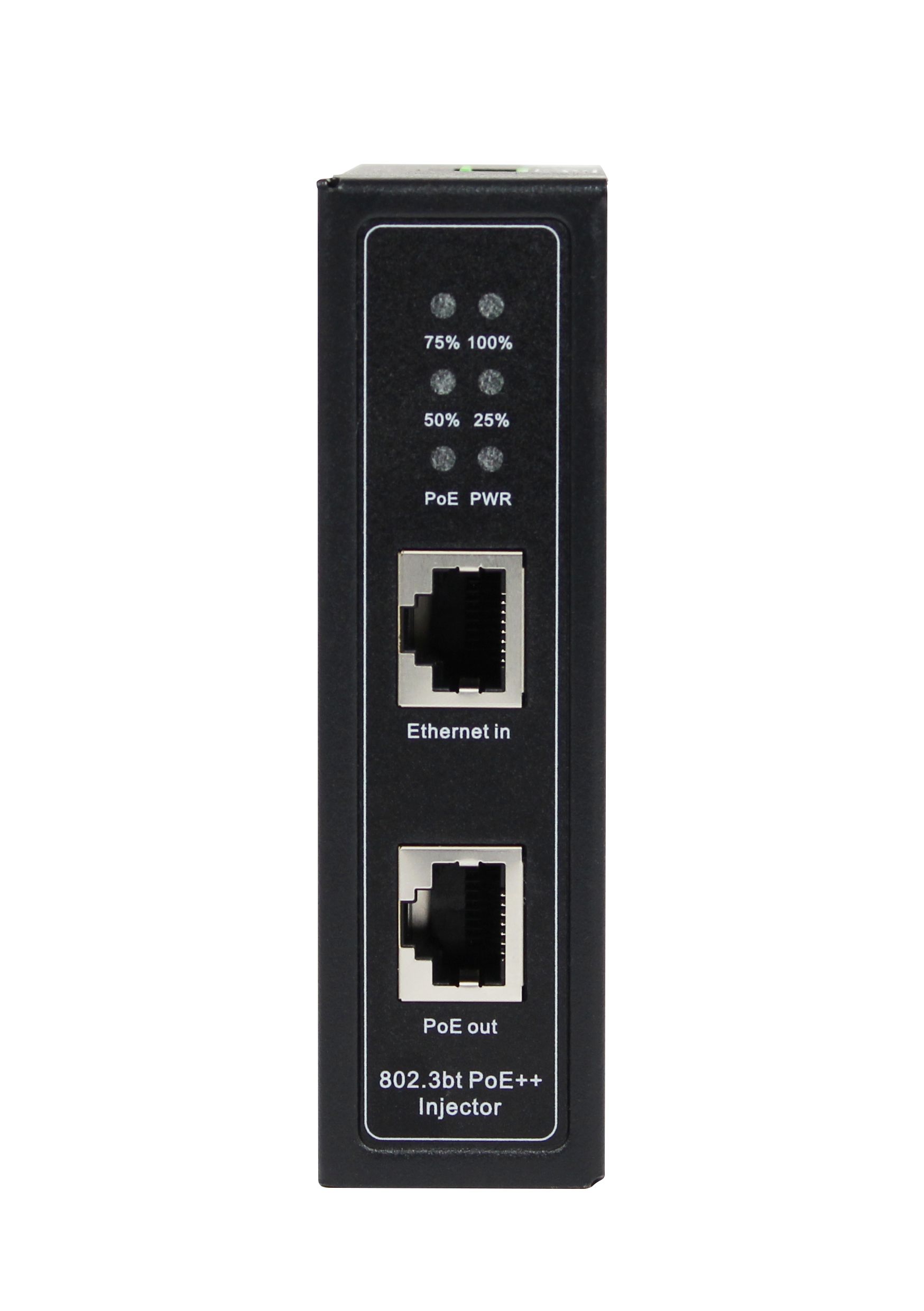

ALLNET PoE Injector Industrial Gigabit / PoE BT (15.4W/30W/90W) / DIN / metal housing / "ALL-PI2014-I-BT90"



Highlights:

  • 1 RJ45 Ethernet data input + 1 RJ45 Power over Ethernet output (Data + Power)
  • 90W LTPoE++ power sourcing equipment support

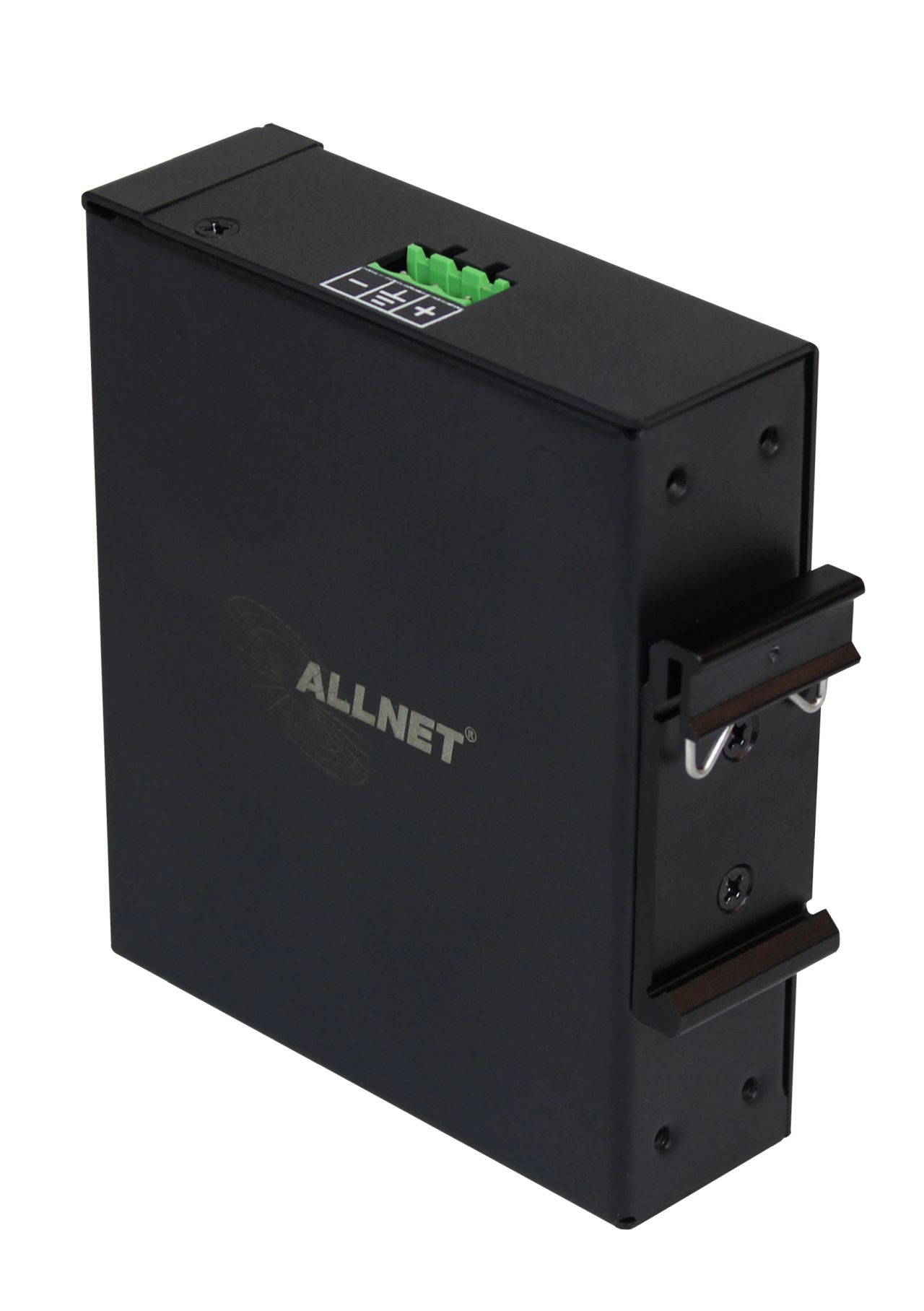

  • DIN rail and wall mounting bracket
  • 48~57VDC terminal block for optional external power supplies (NOTE: POWER SUPPLY IS NEEDED)
  • Supports 10/100/1000Base-TX
  • IEEE802.3at PoE+ compatible
  • Extensive LED indicators for PoE diagnostics
  • -40°C to +75°C operating temperature



Ensure the reliable power supply of your PoE devices with the ALLNET PoE Injector Industrial Gigabit, model "ALL-PI2014-I-BT90." This high-quality PoE injector offers a range of features to optimize your network infrastructure. Here are some of the highlights:

  1. Data and Power Over a Single Cable: The injector features one RJ45 Ethernet data input and one RJ45 Power over Ethernet output. This allows you to transmit both data and power over a single Ethernet cable, simplifying your cabling.

  2. Powerful PoE: With support for 90W LTPoE++ (Low-Temperature Power over Ethernet), this injector is capable of supplying ample power to even high-power PoE devices.

  3. Versatile Mounting Options: The injector can be mounted on DIN rails and walls, providing flexibility in installation.

  4. Optional External Power Supplies: For added flexibility, the injector includes a 48~57VDC terminal block for optional external power supplies. Note that an external power supply needs to be purchased separately.

  5. Gigabit Speed: The injector supports 10/100/1000Base-TX, making it compatible with both Gigabit and standard Ethernet networks.

  6. PoE+ Compatible: It is IEEE802.3at PoE+ compatible, enabling the power supply of PoE+ devices.

  7. Comprehensive Diagnostics: The extensive LED indicators offer a quick and easy way to monitor the status of PoE power delivery and conduct diagnostics.

  8. Robust Design: With an operating temperature range of -40°C to +75°C, this PoE injector is suitable for use in demanding environments.

The ALLNET PoE Injector Industrial Gigabit / PoE BT (model "ALL-PI2014-I-BT90") is the ideal solution to reliably power your PoE devices and operate your network smoothly and efficiently.













Technical Details:



Model





ALL-PI2014-I-BT90





Standards Compliance





IEEE 802.3 10BASE-T Ethernet

IEEE 802.3u 100BASE-TX Fast Ethernet

IEEE 802.3ab 1000BASE-T Gigabit Ethernet

IEEE802.3 x Flow Control



IEEE 802.3af Power over Ethernet



IEEE 802.3at Power over Ethernet Plus

IEEE 802.3bt 4-pair Power over Ethernet Plus Plus





Fixed Port





Ethernet in:1x10/100/1000Base-TX RJ45



PoE out:1x10/100/1000Base-TX PoE++ PSE RJ45





Power in:1x48~57VDC,Max 2A



(3 Pin Terminal Block)





Network Medium





10BASE-T: Cat3,4,5 UTP(?100 meters)



100BASE-TX: Cat5 UTP or better(?100 meters)



1000BASE-TX: Cat5e,6 UTP or better(?100 meters)





PoE Description





PoE Standard:IEEE802.3af/at/bt PSE



PoE Pin Assignment:1/2/4/5+,3/6/7/8-(4-Pair)



PoE Distance:Max 100m(Cat5e/Cat6)



PoE Power Output:Max 90W(DC52-57V,1.73A)





LED Indicator





PWR:Lights to indicate the injector has power input



PoE:Lights to indicate the injector is providing PoE power



25%,50%,75%,100%(PoE Power Usage Indicator):



25%:off to indicate the PoE power usage is less than 25%,blinks to indicate the PoE power usage is around 0-24%,lights to indicate the PoE power usage is more than 25%



50%:blinks to indicate the PoE power usage is around 26-49%,lights to indicate the PoE power usage is more than 50%



75%:blinks to indicate the PoE power usage is around 51-74%,lights to indicate the PoE power usage is more than 75%



100%:blinks to indicate the PoE power usage is around 76-99%,lights to indicate the PoE power usage is at the maximum





Mechanical





Case: IP30 Slim type metal case



Cooling way: Natural cooling,fanless design



Dimension: 110x98x31mm(LxWxH)



Weight: 0.35Kg



Installation:DIN-Rail / Wall-mount





Protection





6KV 8/20u lighting protection



6KV ESD protection



under-voltage,over-voltage,over-current and short circuit protection





Environmental





Working Temperature: -40°C to +80°C



Storage Temperature:-40°C to +85°C



Working Humidity: 10%~90% (non-condensing)



Storage Humidity: 5% ~ 90%(non-condensing)





MTBF





100,000 hours
