Art. nr. 180059

> Zum Online Shop

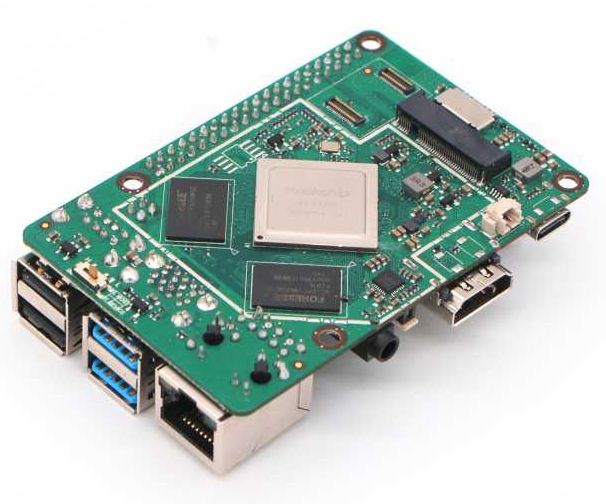

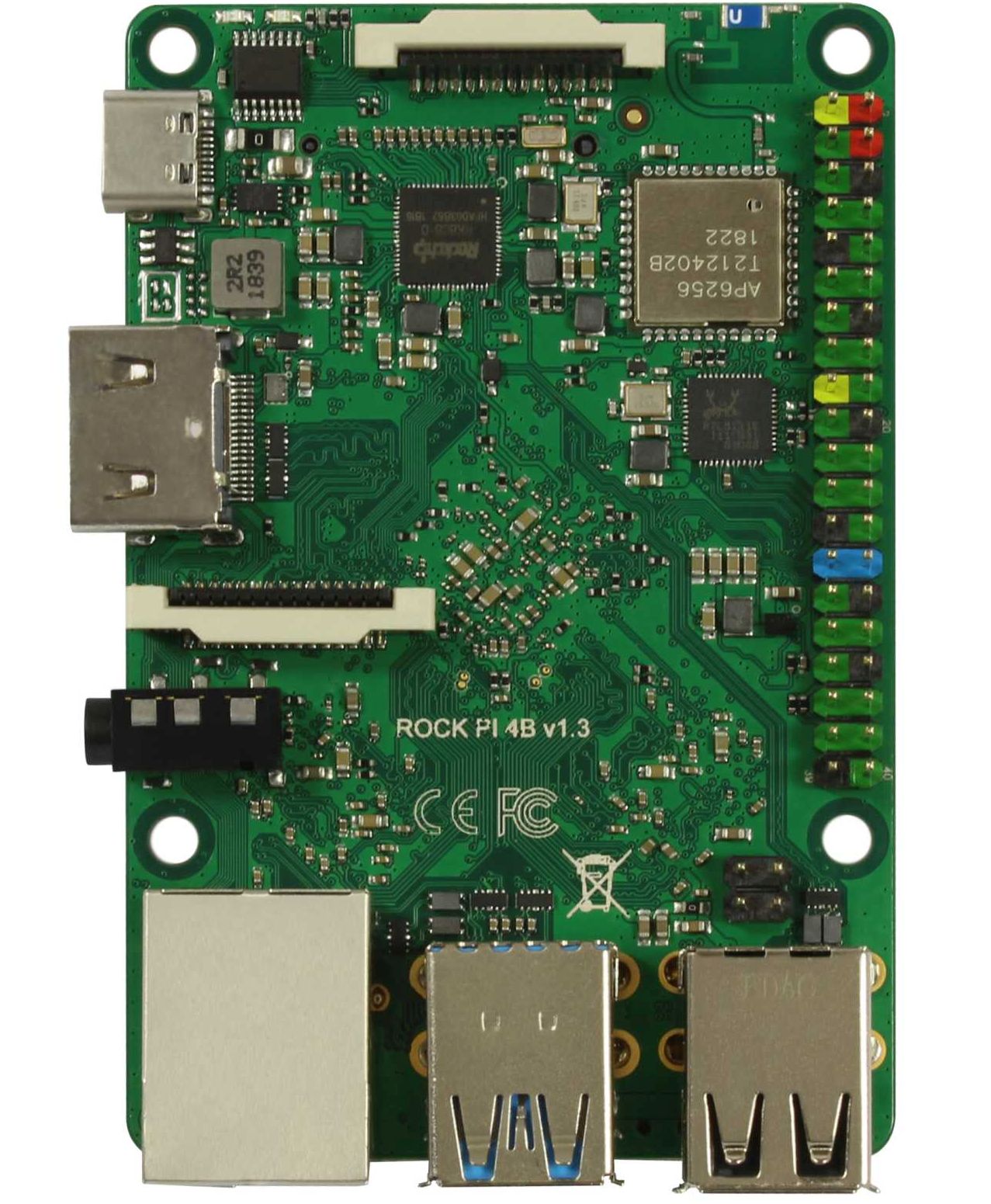

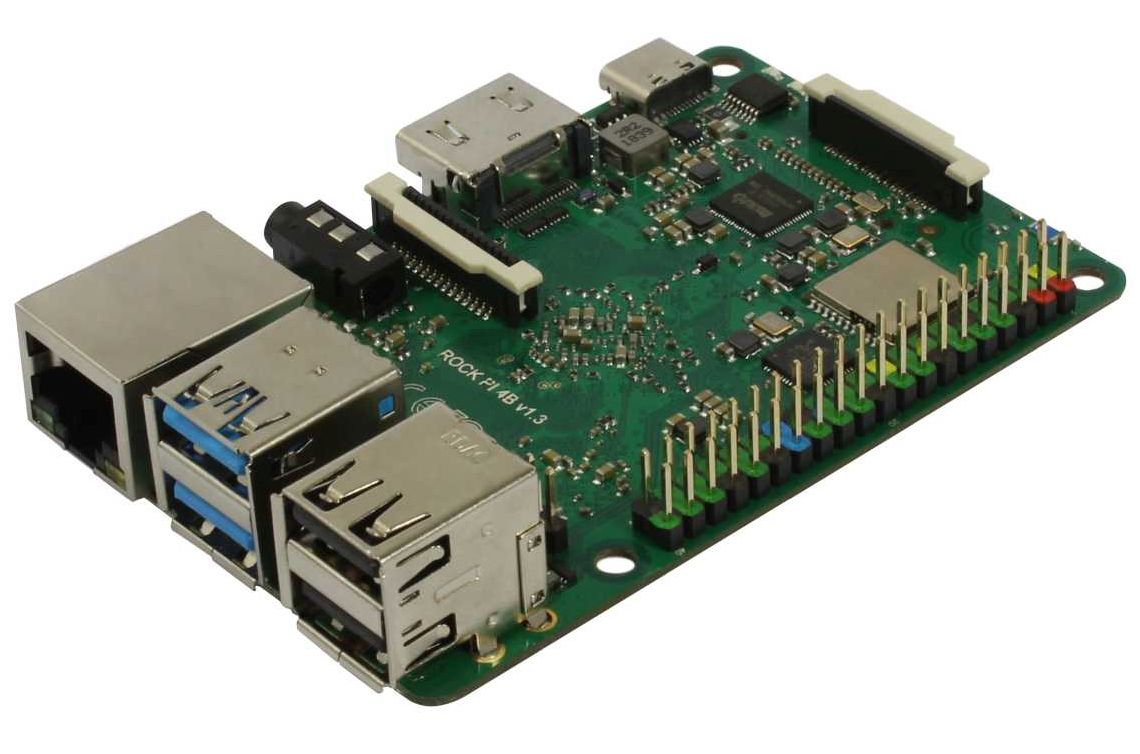

Rock Pi 4 Model B 4GB (mit Dualband 2,4/5GHz WLAN/Bluetooth 5.0) mit UFL Anschluss für ext. Antenne (176996)







Rockchip RK3399Processor64bithexacoreprocessor



Dual Cortex-A72, freqency 1.8Ghz with quad Cortex-A53, frequency 1.4Ghz



GPU



Mali T860MP4 gpu, supports OpenGL ES 1.1 /2.0 /3.0 /3.1 /3.2, Vulkan 1.0, Open CL 1.1 1.2, DX11.



Memory LPDDR4



64bit dual channel LPDDR4@3200Mb/s, 4GB



Storage eMMCmodule



Optional industrial compatible high performance eMMC module, 8G/16G/32G/64G/128G available



Micro SD card



uSD slot supports up to 128G uSD card



M.2 SSD



M.2 connector supports up to 2T M.2 NVME SSD



Display HDMI



HDMI 2.0 up to 4k@60



Peripherie



MIPI DSI 2 lanes via FPC connector



HDMI and MIPI DSI can work at the same time, support mirror mode or extend mode.



Audio 3.5mm jack with mic



HD codec that supports up to 24-bit/96kHz audio.



Camera MIPI CSI



MIPI CSI 2 lanes via FPC connector, support up to 800MP camera



USB 3.0 OTG x1



hardware switch for host/device switch, upper one



USB 3.0 HOST x1



dedicated USB3.0 channel, lower one



USB 2.0 HOST x2



Ethernet GbE



Network



Wireless 802.11 ac wifi 2,4/5GHz



Bluetooth 5.0



LAN



GbE LAN with PoE support



additional HAT is required for powering from PoE



IO 40-pinexpansionheader :



- 1 x UART



- 2 x SPI bus



- 2 x I2C bus



- 1 x PCM/I2S



- 1 x SPDIF



- 1 x PWM



- 1 x ADC



- 6 x GPIO



- 2 x 5V DC power in



- 2 x 3.3V power pin



Others



RTC battery connector for time backup(optional)



Power USB PD



Support USB Type C PD 2.0, 9V/2A, 12V/2A, 15V/2A, 20V/2A



Power Supply Qualcomm® Quick Charge?



Support QC3.0/2.0 adapter, 9V/2A, 12V/1.5A



Size 85mm x 54mm

Empfohlenes Zubehör

 Artikelnr.Artikelbezeichnung
ALLNET Ersatznetzteil - 5V/3A 9V/2A 12V/1,5A auf USB Typ A Buchse QCA3.0
Rock Pi zbh. M.2 Extend board
Rock Pi 4 /E /3A zbh. EMMC 5.1 16GB passt auch für ODroid, Raspberry ( mSD Adapter) etc.
Rock Pi 4 /E /3A zbh. EMMC 5.1 32GB passt auch für ODroid, Raspberry ( mSD Adapter) etc.
Rock Pi 4 /E /3A zbh. EMMC 5.1 64GB passt auch für ODroid, Raspberry ( mSD Adapter) etc.
Rock Pi 4 /E /3A zbh. EMMC 5.1 128GB passt auch für ODroid, Raspberry etc.
Rock 4/E/C+/3A/5 zbh. eMMC to Micro-SD Adapter

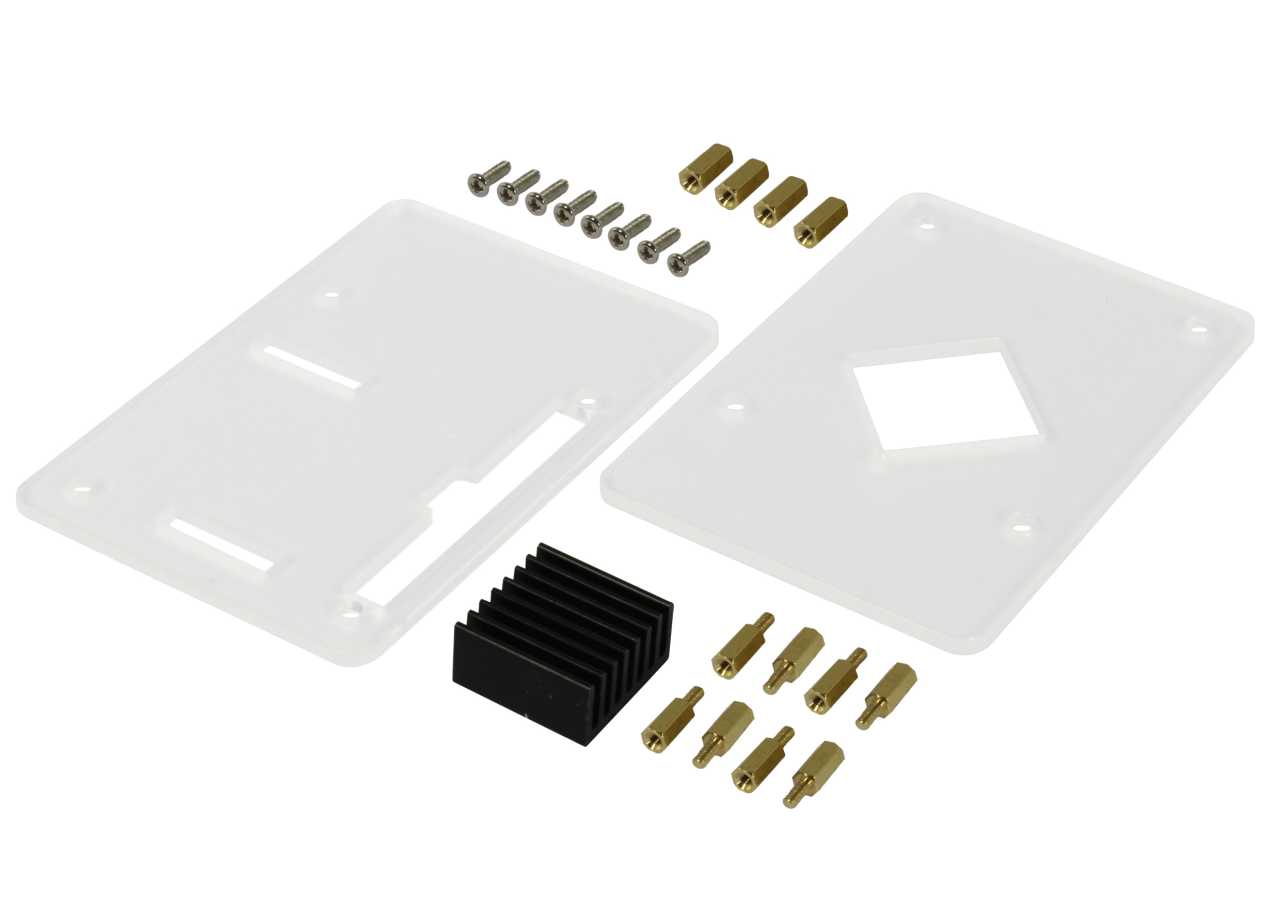

Rock Pi zbh. Simple Acrylic Case + small heat sink
Rock Pi CMOS Batterie zbh. RTC Battery
Rock Pi zbh. USB auf TTL

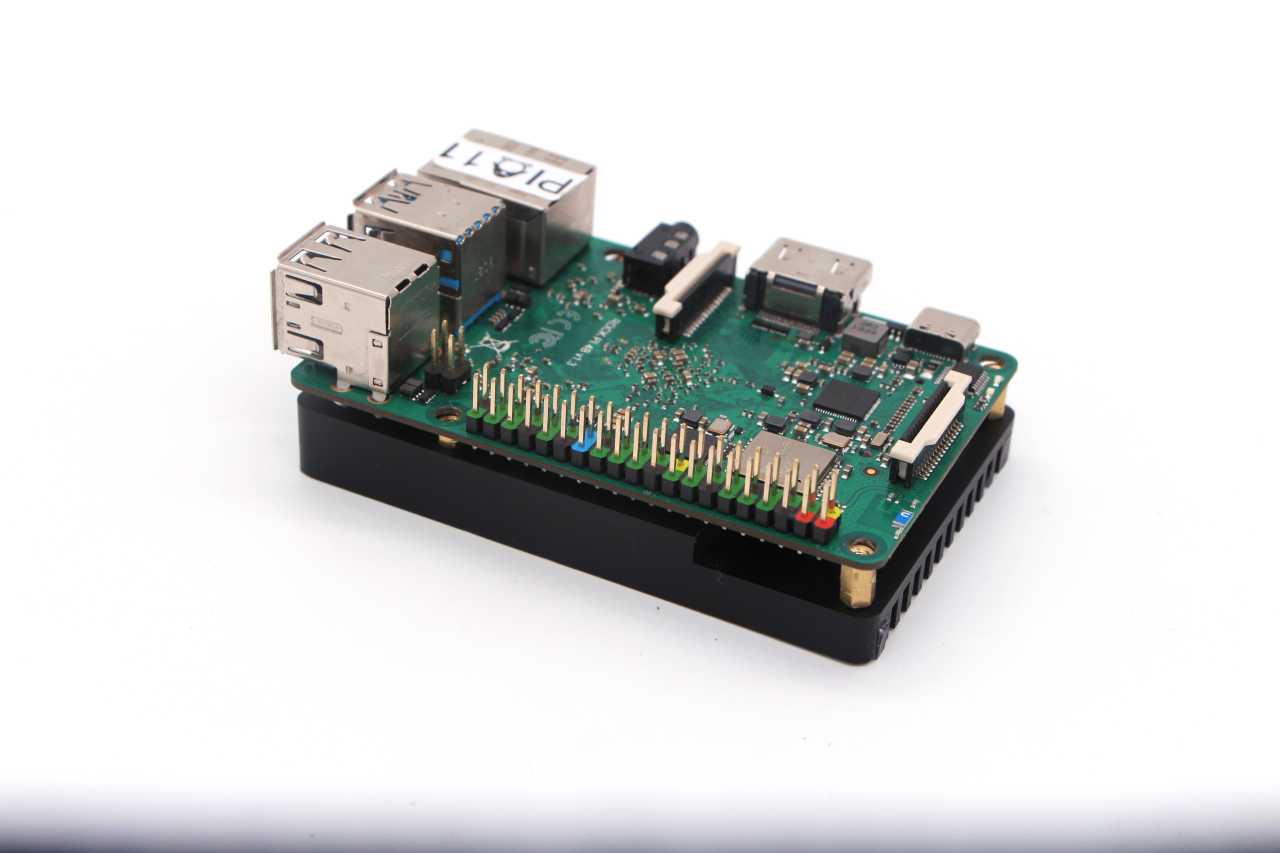

Rock Pi zbh. Heatsink Kühler Kühlkörper
Rock Pi Adapter MicroSD - MicroSD Verlängerung Kabel
Rock Pi Adapter SD Karte - MicroSD Verlängerung Kabel
Rock Pi zbh. Proto Hat / Shield 3er Set
Rock Pi zbh. USB 3.0 Male Type A to A 1,5m
Rock Pi zbh. USB 2.0 Male Type A to C 3A 1,0 m
Flash SecureDigitalCard (SD) 128GB *EMTEC* microSDXC 128GB EMTEC + Adapter CL10 Gold+ UHS-I 85MB/s Blister
Flash SecureDigitalCard (SD) 16GB *EMTEC* Gold+ microSDHC - Class 10 + Adapter
Flash SecureDigitalCard (SD) 64GB *EMTEC* Gaming microSDXC + Adapter CL10 + UHS-3 v30 Violett 100MB/s Blister

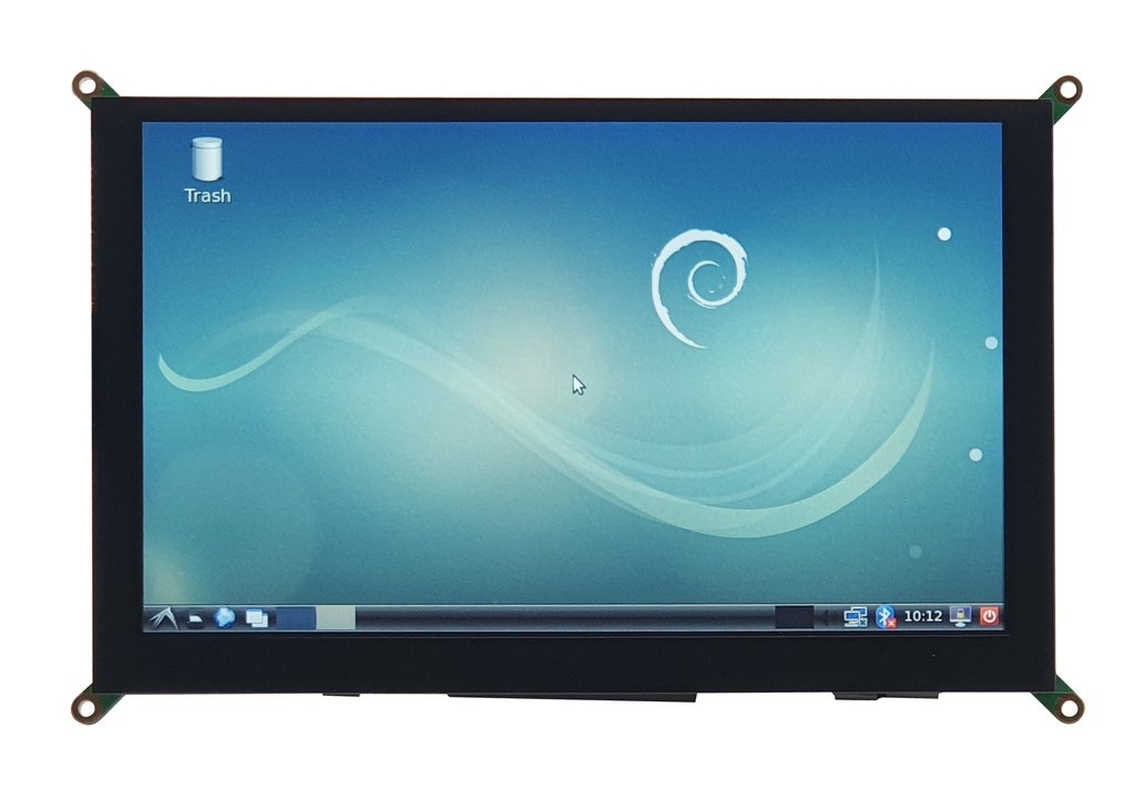

Radxa zbh. 10" Zoll FHD DSI LCD Mipi Display Touchscreen kapazitiv AD003
ALLNET Ersatznetzteil - 5V/3A auf USB-C 2m Kabel
Kabel USB-C 3.1 Strom-/Daten Kabel zu USB 3.0 TypA 1,5m
Kabel USB-C 3.1 90° Strom-/Daten Kabel Male to Male
Kabel USB-C 3.1, 2,0m, C(St)/C(St), Silber-Grau, 10G/5A, Gen 2, E-Marker Chip, aktives PD USB-C
Kabel USB-C 3.1, 1,5m, C(St)/C(St), Silber-Grau, 10G/5A, Gen 2, E-Marker Chip, aktives PD USB-C

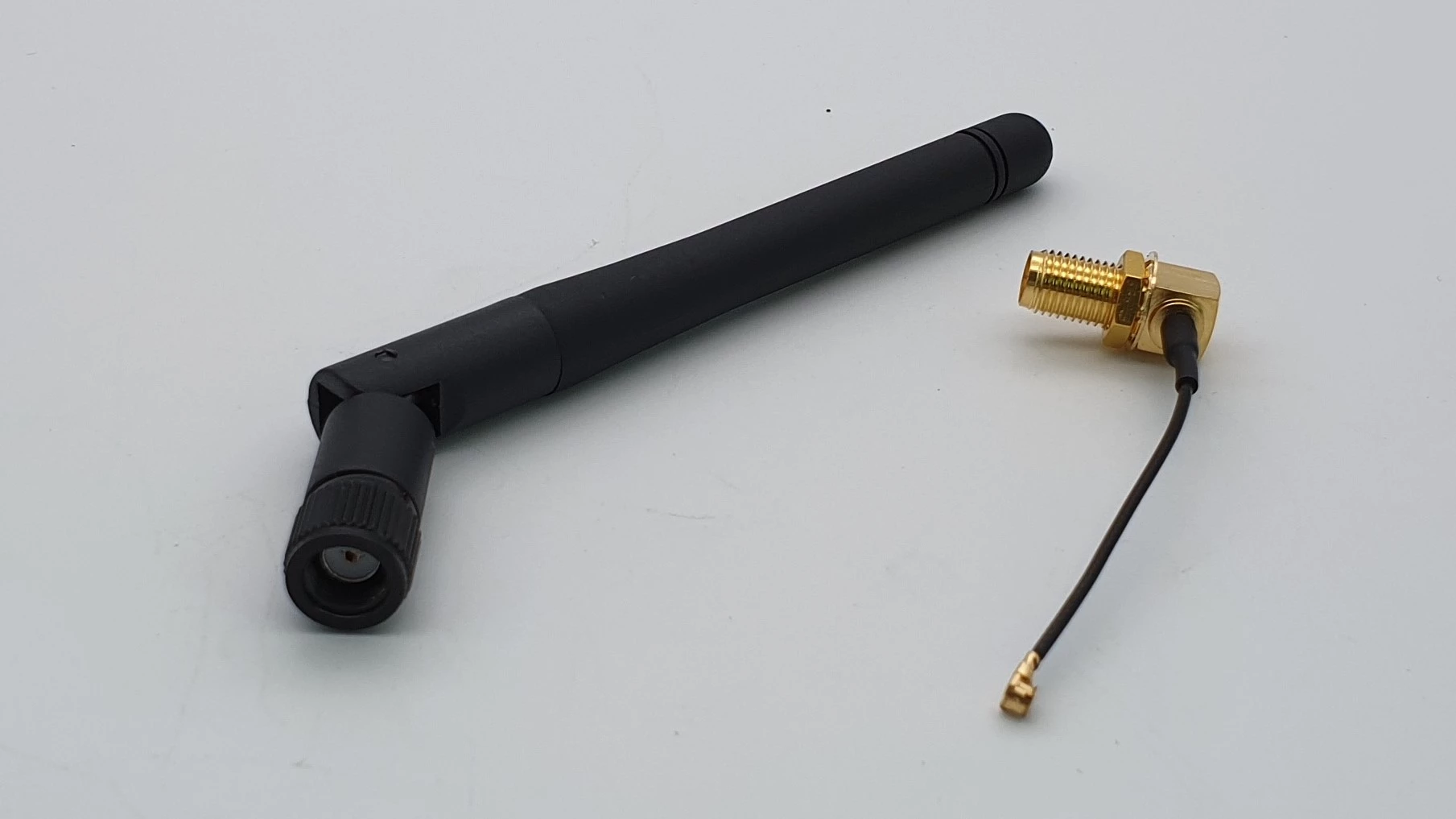

Rock Pi - Bundle - 2.4GHz /5.8 GHz Antenne + Pigtail
ALLNET PoE Splitter-Mini/Extractor / Gigabit / 24W / 5V/12V Schaltbar / ALL-PS102G-AF-AT
ALLNET Fernbedienung Air Mouse G10 Pro Remote Control 2.4GHz USB Dongle
ALLNET Antenne-Pigtail Stummel 2,4 GHz 2dBi indoor pigtail FriendlyElec
