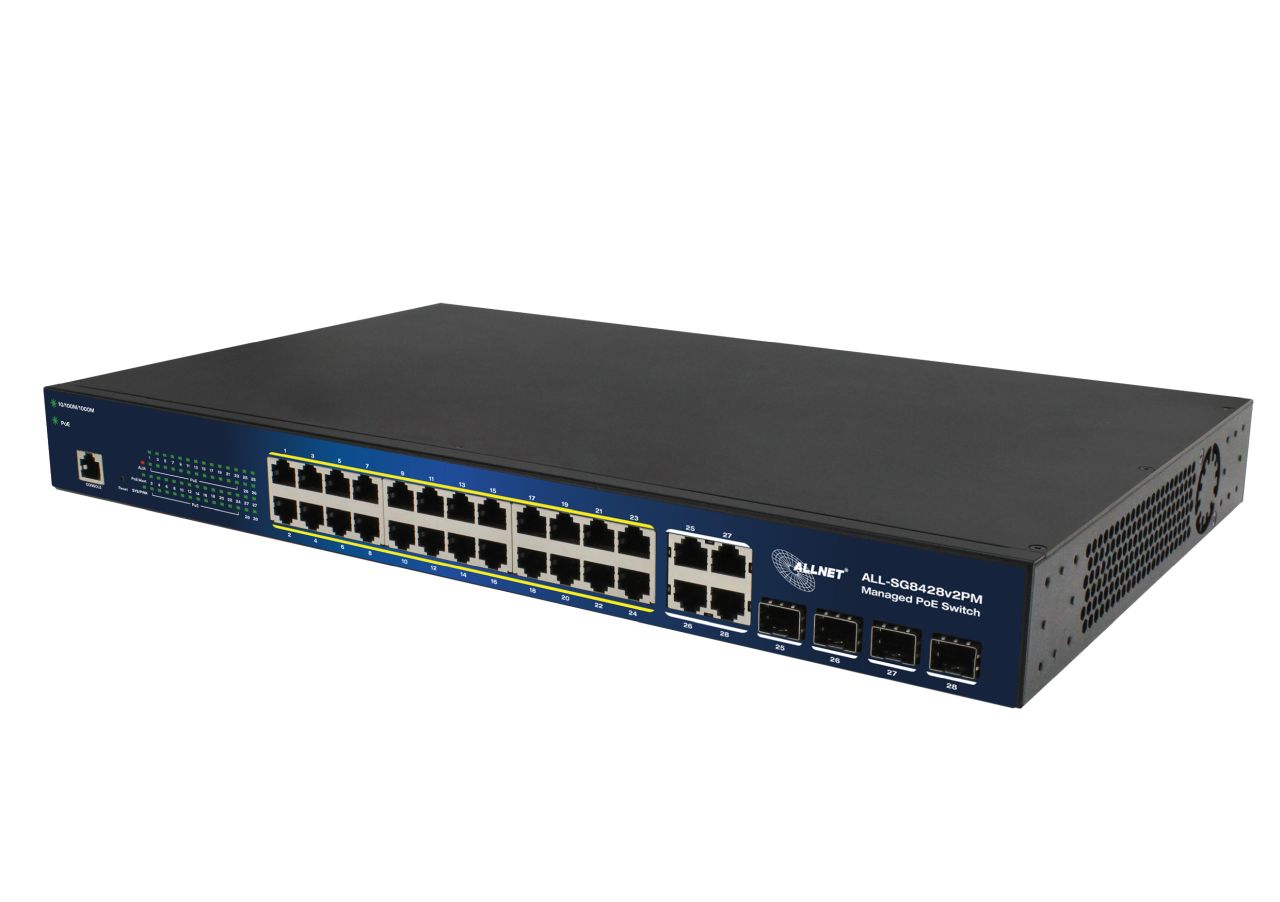

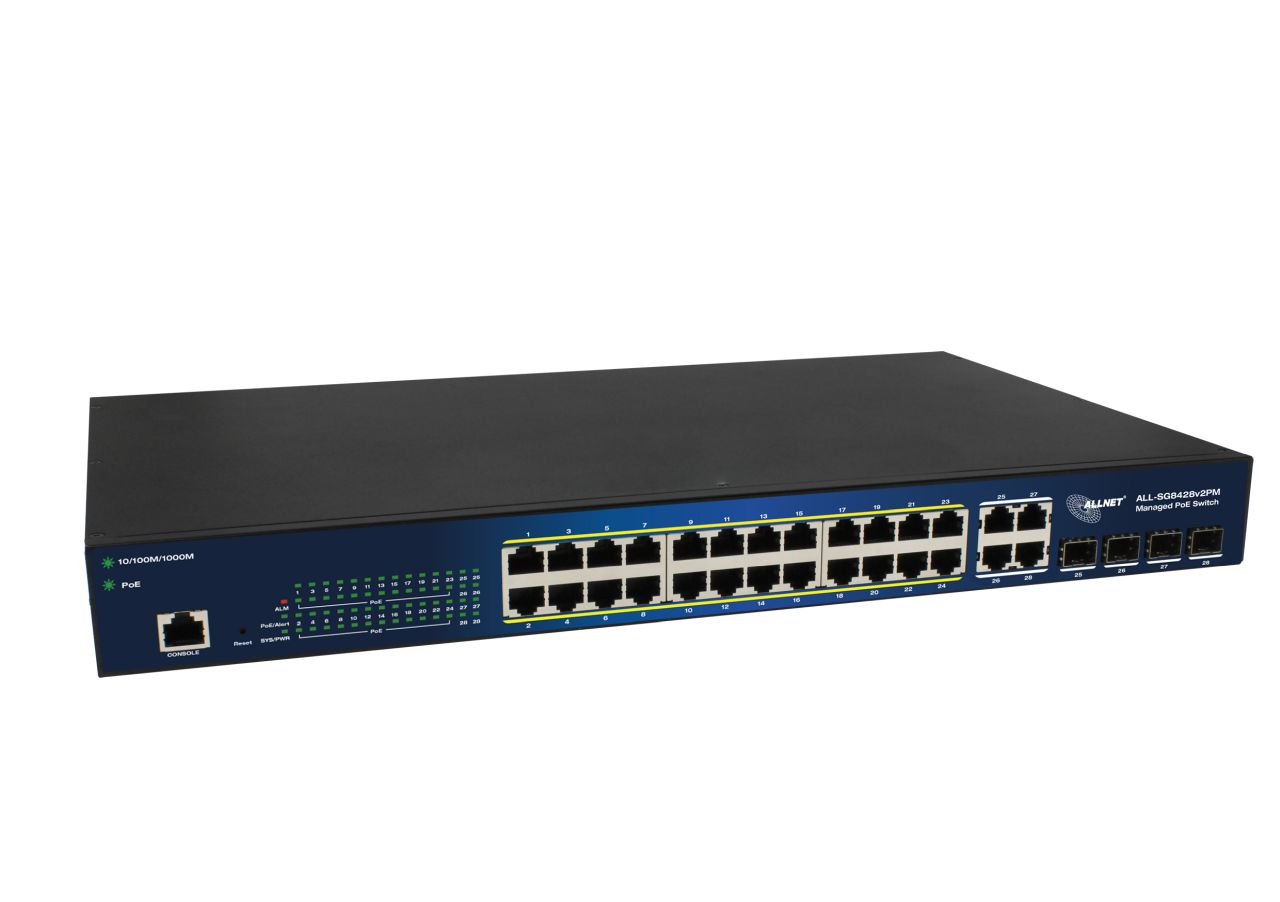

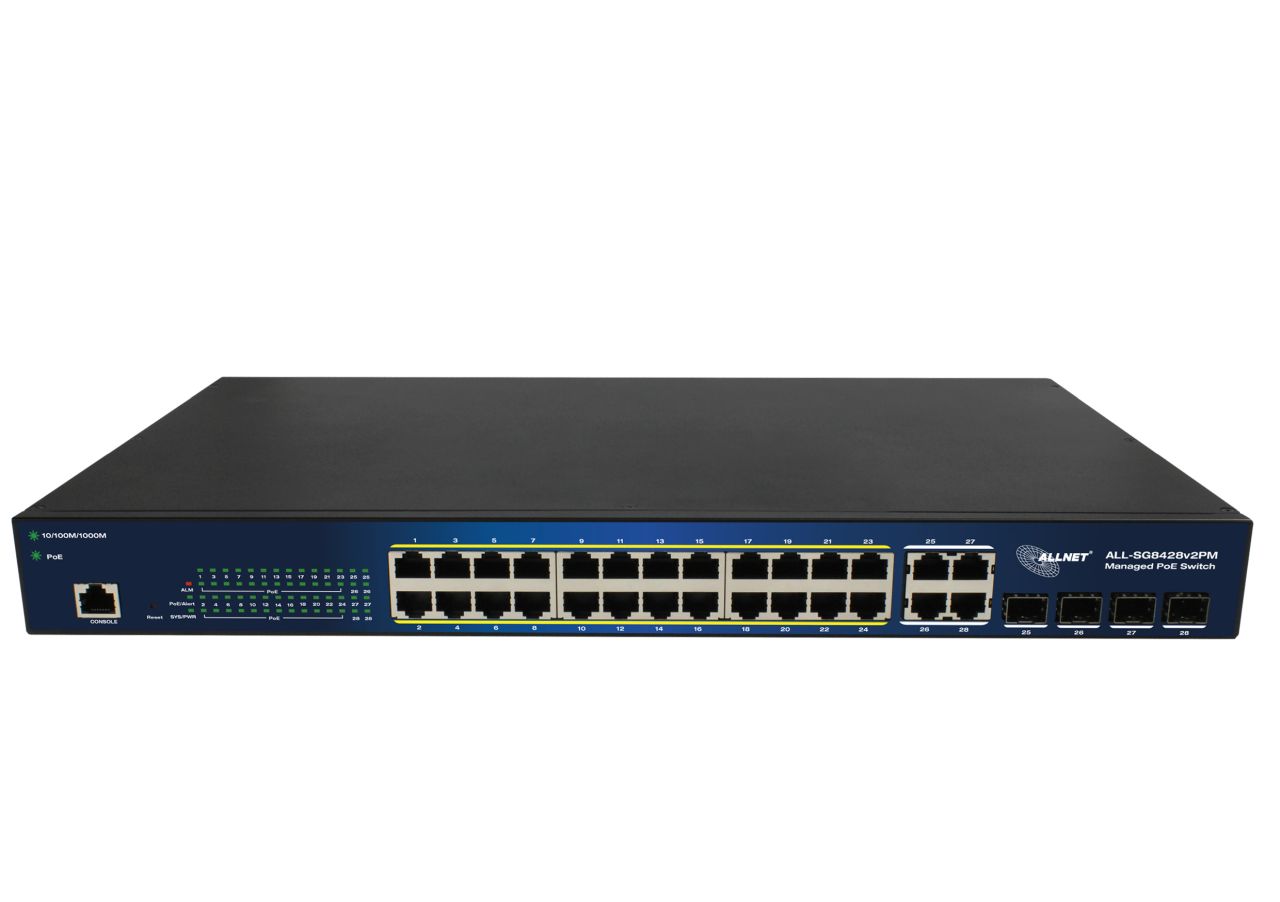

ALLNET Switch smart managed Layer2 24 Port ? PoE Budget 370W ? 24x PoE at ? 4x SFP ? 19" ? ALL-SG8428v2PM
Highlights:
- 24 Port Gigabit non-blocking Switch Architektur
- Unterstützt NWay Protocol (10/100/1000Mbps) und Duplexmodus (half/full) Auto Detektion
- support back-pressure (half duplex), flow control (IEEE 802.3x und IEEE 802.3az Energy Efficient Ethernet
- VLAN: Port basiert / Tagged basiert
- Link Aggregation (IEEE802.3ad LACP)
- IGMP Snooping (v1/v2)
- QoS (Port Based, Flow, 802.1p, IP-TOS, IP DSCP)
- Stormcontrol (Broadcast, Multicast, Unicast)
- 370W PoE Budget unterstützt PoE IEEE802.3af/at PSE-Devices

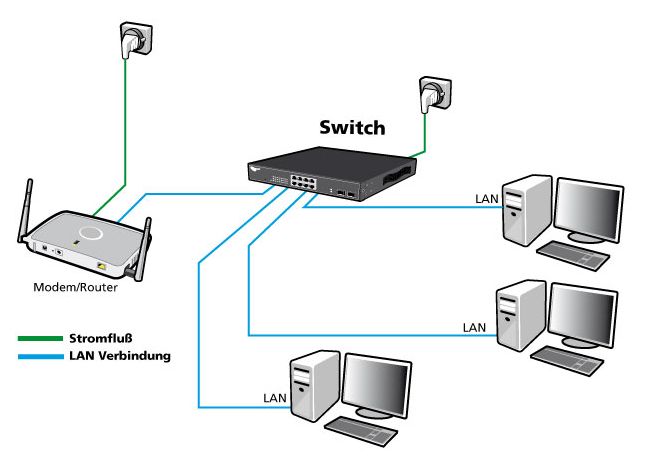

Der neue ALLNET ALL-SG8428v2PM Switch stellt eine optimale Basis für kleine und mittlere Arbeitsgruppen mit hohem Netzwerk- und Datenaufkommen dar und ermöglicht eine schnelle Datenübertragung im Netzwerk. Mit insgesamt 24 abwärtskompatiblen Gigabit Ports sind die angebundenen Rechner und Server zuverlässig und leistungsstark miteinander verbunden. Der ALL-SG8428v2PM kann durch das interne 450W Netzteil ein maximales PoE Budget von 370W an die Endgeräte weiterreichen. Die 24 Gigabit PoE Ports unterstützen den PoE Standard IEEE802.3af und den IEEE802.3at Standard. Im Switch sind seitlich 2 Lüfter verbaut.
Mechanical Drawings:
Technische Details:
Items
|
Specifications
|
Model No.
|
ALL-SG8428v2PM
|
Key Components
|
RTL8382M+RTL8218Dx2+RTL8214FC
Flash IC:16MB
DDR: 1Gb
IP808ARx3 PSE controller
|
I/O ports
|
24x GbE ports, RJ45
4 x port GbE SFP/RJ45 combo
Reset Button: reset to default setting, re-start system
|
PoE ports
|
Port# 1~ 24
IEEE802.3at, IEEE802.3af
|
LED Define
|
PWR/SYS: Green LED
- Off: power off or fail
- On: power on
- Blinking: system booting up
PoE Alert: Green LED
- Off: No over PoE Max power Alert
- On: Over PoE Max power Alert
ALM: Red LED
- Off: Switch is normal condition
- On: Alarm for system failure because of overheat, wrong voltage, Fan failed.
Port LED:
RJ45:
- Off: port disconnected or link fail
- Green on: 10/100/1000Mbps connected
- Blinking: sending or receiving data
PoE:
- Off: PoE power output off
- Green on: PoE power output on
SFP:
- Off: disconnected or fail
- Green: 100/1000Mbps connected
- Blinking: data transmitting
|
HW feature
|
IEEE802.3 10BASE-T
IEEE802.3u 100BASE-TX
IEEE802.3ab 1000BASE-T
IEEE802.3az EEE
IEEE802.3x
IEEE802.3z
IEEE802.3at, IEEE802.3af
MAC address Table: 8K
Packet buffer size: 4.1M
Jumbo Frame: 10K bytes
56Gbps switching capacity
Forwarding rate: 41.66Mpps (64-byte package size)
|
Data Transfer Rate
|
Ethernet:10 Mbps (half duplex),20 Mbps (full duplex)
Fast Ethernet:100 Mbps (half duplex),200 Mbps (full duplex)
Giga Ethernet:2000 Mbps (full duplex)
|
PoE power pin-out
|
Alternative A (Pin 1,2/3,6)
|
PoE Output power capacity
|
Maximum output :30W per each port
- Compliant with IEEE802.3af/at standard, Following IEEE802.3at/at to support PoE or PoE+
- Automatically discover the connection of PD device and immediately sends power to it
- Auto disable port if the port current is over 700mA or short happens
- Priority default setting is lower port NO. has high priority
- The maximum power used by power devices is defined by the following classification. When Port works in Auto Mode, the output port power limit will be associated with PD classification Value.
- Follow the standard PSE pin-out standard of Alternative A (MAD-X) which is sending out power over number 1,2,3,6 pins of 8 wires of Ethernet CAT5 UTP cable
|
System Monitor
|
HW Monitor IC: ADT7476
-
-
-
- Voltage Monitor
- Input Voltage: 12V (+/-7% Alarm Threshold)
- I/O Voltage: 3.3V (+/- 5% Alarm Threshold)
- DDR Voltage: 1.5V (+/- 5% Alarm Threshold)
- PHY Voltage: 1.1V (+/- 5% Alarm Threshold)
- MAC Voltage:1.0V (+/- 5% Alarm Threshold)
- Temperature Monitor
- BOARD: 0~80°C
- MAC: 0~85°C
- PHY: 0~85°C
|

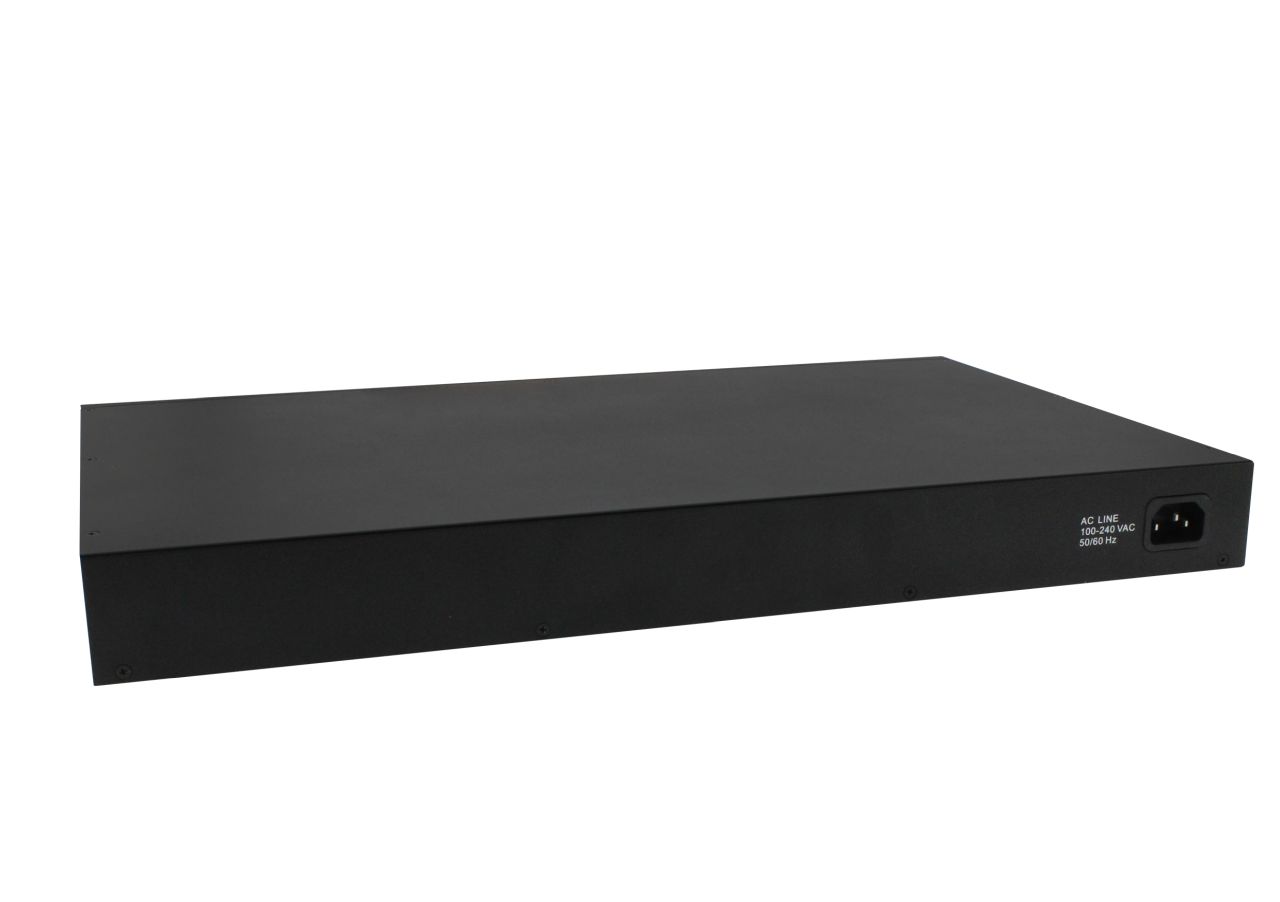

Power Input
|
Internal power supply
Input: 100-240V AC
Output: 450W
|
PoE Power Budget
|
370W
|
Reset button
|
Support reset to default configuration
|
Dimension
|
441(W) x 270(D) x 45(H) mm
|
FAN Design
|
6300 Fanx2 (Smart Fan)
|
Temperature
|
Operating: -5~ 50?
Storage : -40 ~ 70?
|
Humidity
|
Operating: 10% ~ 90% RH (non-condensing)
Storage: 5% ~ 90% RH (non-condensing)
|
-
- Software Feature
Status
|
System Information
|
|
|
Logging Message
|
|
|
Port
|
Statistics
|
|
Error Disabled
|
Bandwidth Utilization
|
|
Link Aggregation
|
|
MAC Address Table
|
8K
|
|
Network
|
IP Address
|
Static / Dynamic
|
|
System Time
|
SNTP / From Computer / Manual Time
|
|
Port
|
Port Setting
|
State / Speed / Duplex / Flow Control
|
|
Error Disabled
|
Recovery Interval
|
ACL / ARP Rate Limit / BPDU Guard / Broadcast Flood / DHCP Rate Limit / Port Security / Self Loop / Unicast Flood / Unknown Multicast Flood
|
Link Aggregation
|
Group
|
|
Port Setting
|
State / Speed / Flow Control
|
LACP
|
|
EEE
|
|
|
Jumbo Frame
|
9K Byte
|
|
PoE
|
Global Setting
|
Schedule Status
|
Priority Setting
|
Power Limit
|
Power Show
|
VLAN
|
VLAN
|
Create VLAN
|
VLAN Configuration
|
Membership
|
|
Port Setting
|
Voice VLAN
|
Property
|
Voice OUI
|
Protocol VLAN
|
Protocol Group
|
Group Binding
|
MAC VLAN
|
MAC Group
|
Group Binding
|
Surveillance VLAN
|
Property
|
Surveillance OUI
|
GVRP
|
Property
|
Membership
|
Statistics
|
MAC Address Table
|
Dynamic Address
|
Aging Time
|
|
Static Address
|
Filtering Address
|
|
|
Spanning Tree
|
Property
|
State / Operation Mode / Path Cost / BPDU Handling
|
Operation Mode : STP/RSTP/MSTP
|
Port Setting
|
|
|
MST Instance
|
MST Port Setting
|
Statistics
|
|
|
Discovery
|
LLDP
|
Property
|
Port Setting
|
|
MED Network Policy
|
MED Port Setting
|
Packet View
|
|
Local Information
|
|
Neighbor
|
|
Statistics
|
|
Multicast
|
General
|
Property
|
Unknown Multicast Action / Multicast Forward Method
|
Group Address
|
Router Port
|
Forward All Table
|
Throttling
|
Filtering Profile
|
Filtering Binding
|
IGMP Snooping
|
Property
|
State / Version / Report Suppression
|
Querier
|
|
Statistics
|
|
MLD Snooping
|
Property
|
State / Version / Report Suppression
|
Statistics
|
MVR
|
Property
|
State / VLAN / Mode / Group Start / Group Count / Query Time
|
Port Setting
|
Group Address
|
Security
|
RADIUS
|
TACACS+
|
AAA
|
Method List
|
Login Authentication
|
Console / Telnet / SSH / HTTP / HTTPS
|
Management Access
|
Management VLAN
|
|
Management Service
|
Telnet / SSH / HTTP / HTTPS / SNMP / Session Timeout
|
Management ACL
|
Management ACE
|
Authentication Manager
|
Property
|
|
Port Setting
|
MAC-Based Local Account
|
WEB-Based Local Account
|
|
Sessions
|
|
Port Security
|
|
|
Protected Port
|
|
|
Storm Control
|
|
State / Broadcast / Unknown Multicast / Unknown Unicast / Action (Drop / Shutdown)
|
DoS
|
Property
|
|
Port Setting
|
|
Dynamic ARP Inspection
|
Property
|
|
Statistics
|
|
DHCP Snooping
|
Property
|
|
Statistics
|
|
Option82 Property
|
|
Option82 Circuit ID
|
|
IP Source Guard
|
Port Setting
|
|
IMPV Binding
|
|
Save Database
|
|
ACL
|
MAC ACL
|
|
|
MAC ACE
|
|
|
IPv4 ACL
|
|
|
IPv4 ACE
|
|
|
IPv6 ACL
|
|
|
IPv6 ACE
|
|
|
|
ACL Binding
|
|
|
QoS
|
General
|
Property
|
CoS / DSCP / CoS-DSCP / IP Precedence
|
Queue Scheduling
|
Strict Priority / WRR
|
CoS Mapping
|
|
DSCP Mapping
|
|
IP Precedence Mapping
|
|
Rate Limit
|
Ingress / Egress Port
|
|
Egress Queue
|
|
Diagnostics
|
Logging
|
Property
|
Console / RAM / Flash
|
Remote Server
|
|
Mirroring
|
|
|
Ping
|
|
|
Traceroute
|
|
|
Copper Test
|
|
|
Fiber Module
|
|
|
UDLD
|
Property
|
Message Time
|
Neighbor
|
|
Management
|
User Account
|
|
|
Firmware
|
Upgrade / Backup
|
Action (Upgrade / Backup) / Method (TFTP / HTTP)
|
Active Image
|
Active Image / Backup Image
|
Configuration
|
Upgrade / Backup
|
Action (Upgrade / Backup) / Method (TFTP / HTTP)
|
Save Configuration
|
Source File / Destination File, Restore Factory Default
|
SNMP
|
View
|
|
Group
|
|
Community
|
|
User
|
|
Engine ID
|
|
Trap Event
|
Authentication Failure / Link UP_Down / Cold Start / Warm Start
|
Notification
|
|
RMON
|
Statistics
|
|
|
History
|
|
|
Event
|
|
|
Alarm
|
|
|
Marks |
Safety |
LVD EN62368-1:2014 |
|
EMC |
CE EN55032: 2015+AC:2016
EN55035: 2017
|
class A |
FCC Part15, Subpart B: ANSI C |
